1-8 Engine Mechanical Industrial 1.6L
Cylinder Head

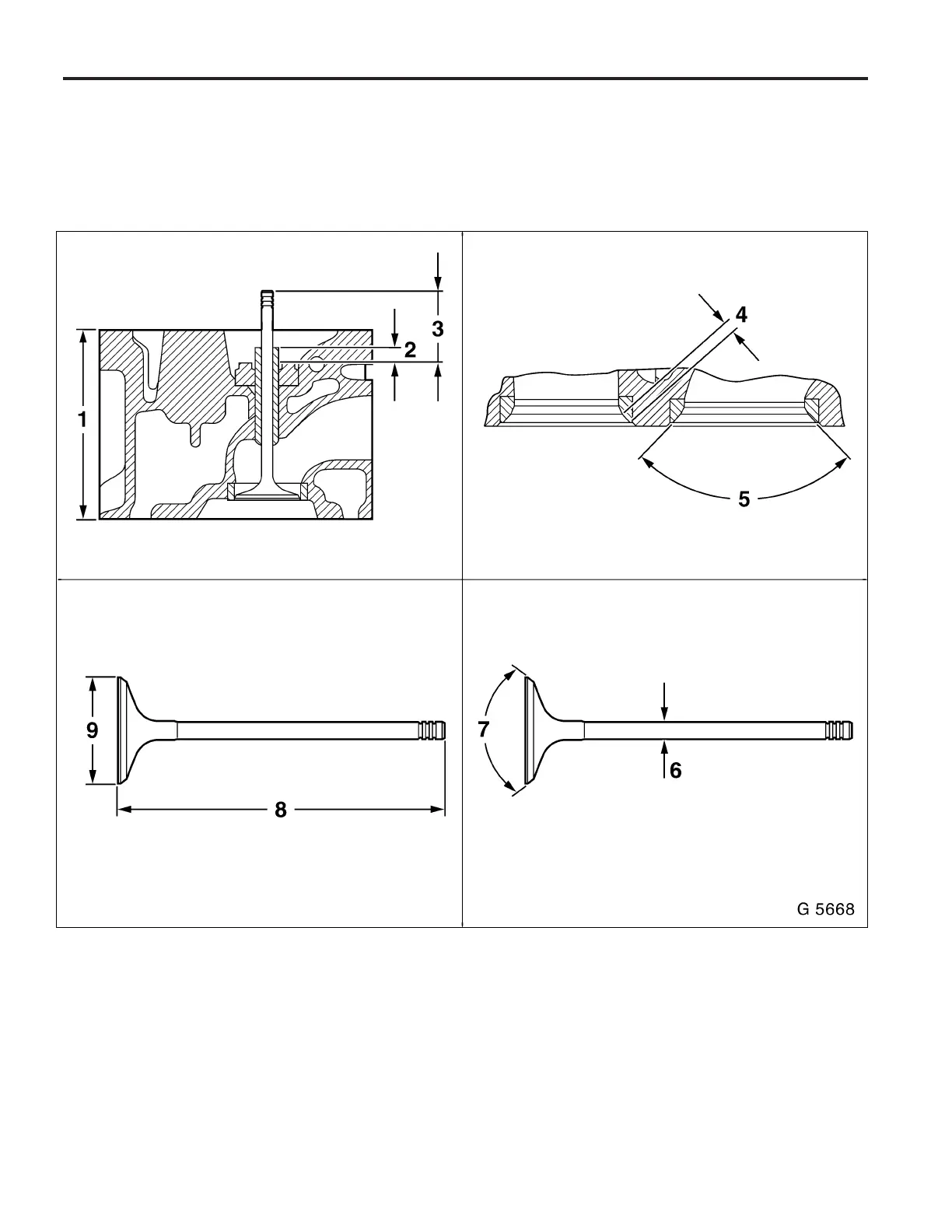

Illustration
1 Cylinder head height
2 Installation height of valve guide
3 Installation height of valve
4 Valve seat width in cylinder head
5 Valve seat angle in cylinder head
6 Valve stem diameter
7 Valve seat angle at valve
8 Valve length
9 Valve head – diameter
Cylinder Head
