Industrial 1.6L Engine Cooling 2-11

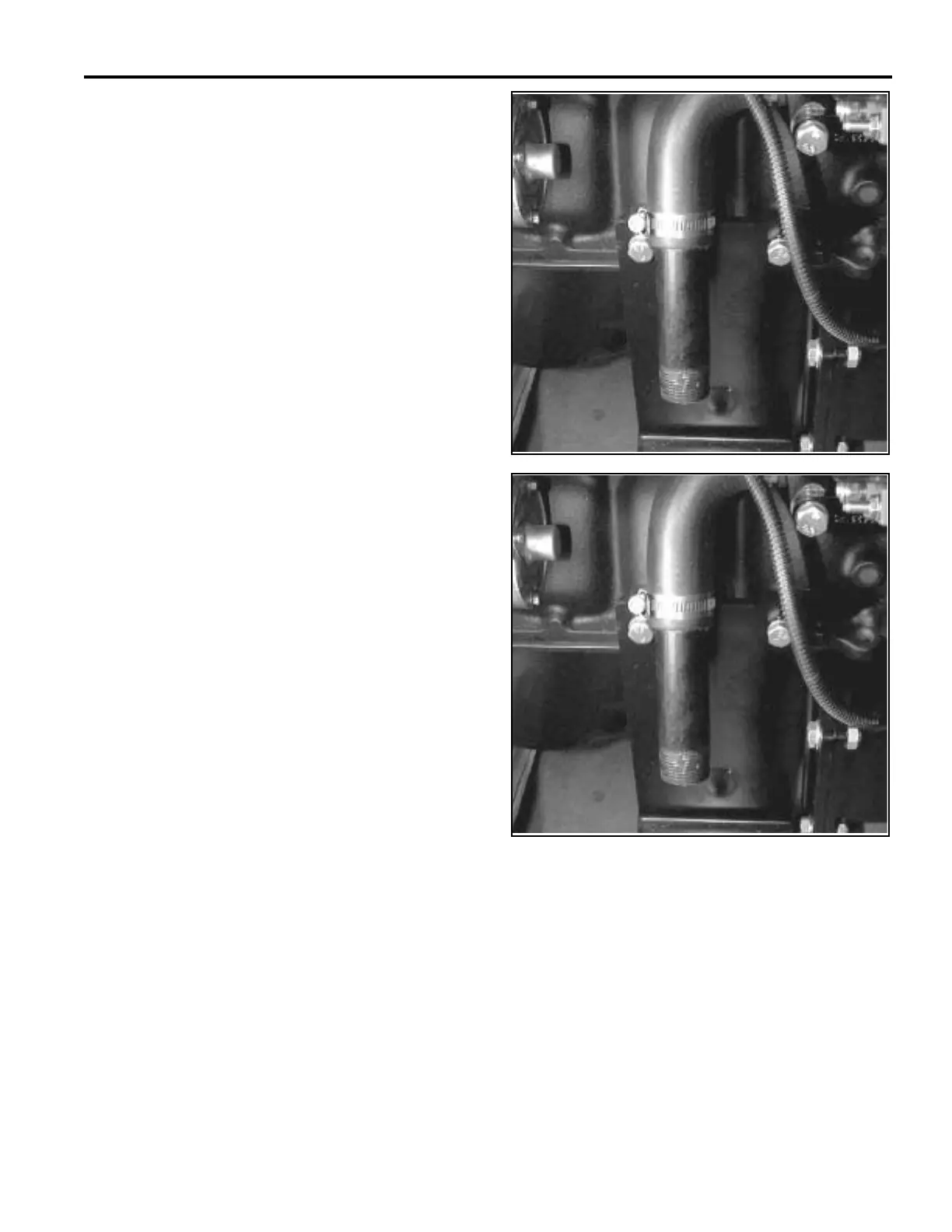

Coolant Pipe and/or Hose Replacement
Removal Procedure
1. Drain the coolant from the radiator so that the level
of the coolant is below the hose that is being
removed.
2. Remove the radiator hose clamps.
3. Remove the lower radiator hose from the coolant
pipe.
4. Remove the coolant pipefrom the coolant hose.
5. Remove the coolant hose from the engine block.
Installation Procedure
1. Install the coolant hose to the engine block.
2. Install the coolant pipe to the coolant hose.
3. Install the lower radiator hose to the coolant pipe.
Notice: Refer to Fastener Notice.
4. Install the radiator hose clamps.
Tighten
Tighten the radiator hose clamps to 2.5 N•m (22 lb in).
5. Add the coolant to the proper level. Refer to
Draining and Filling Cooling System.
6. Start the engine and check for leaks.
80362004
80362004
