1-40 Engine Mechanical Industrial 1.6L
Installation Procedure
1. Attach coolant hoses to throttle body.
2. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
3. Attach engine vent hoses to camshaft housing cover.
4. Close coolant drain bolt.
5. Connect ground cable to battery.
Inspect
1. Top up cooling system – see operations Cooling Sys-
tem, Top Up and Bleed” and ”Cooling System, Check
for Leaks.
Heat Shields, Remove and Install
Removal Procedure
1. Remove fastening bolts for spark plug wiring trough.
2. Disconnect spark plug connectors and lay plug wires
aside.

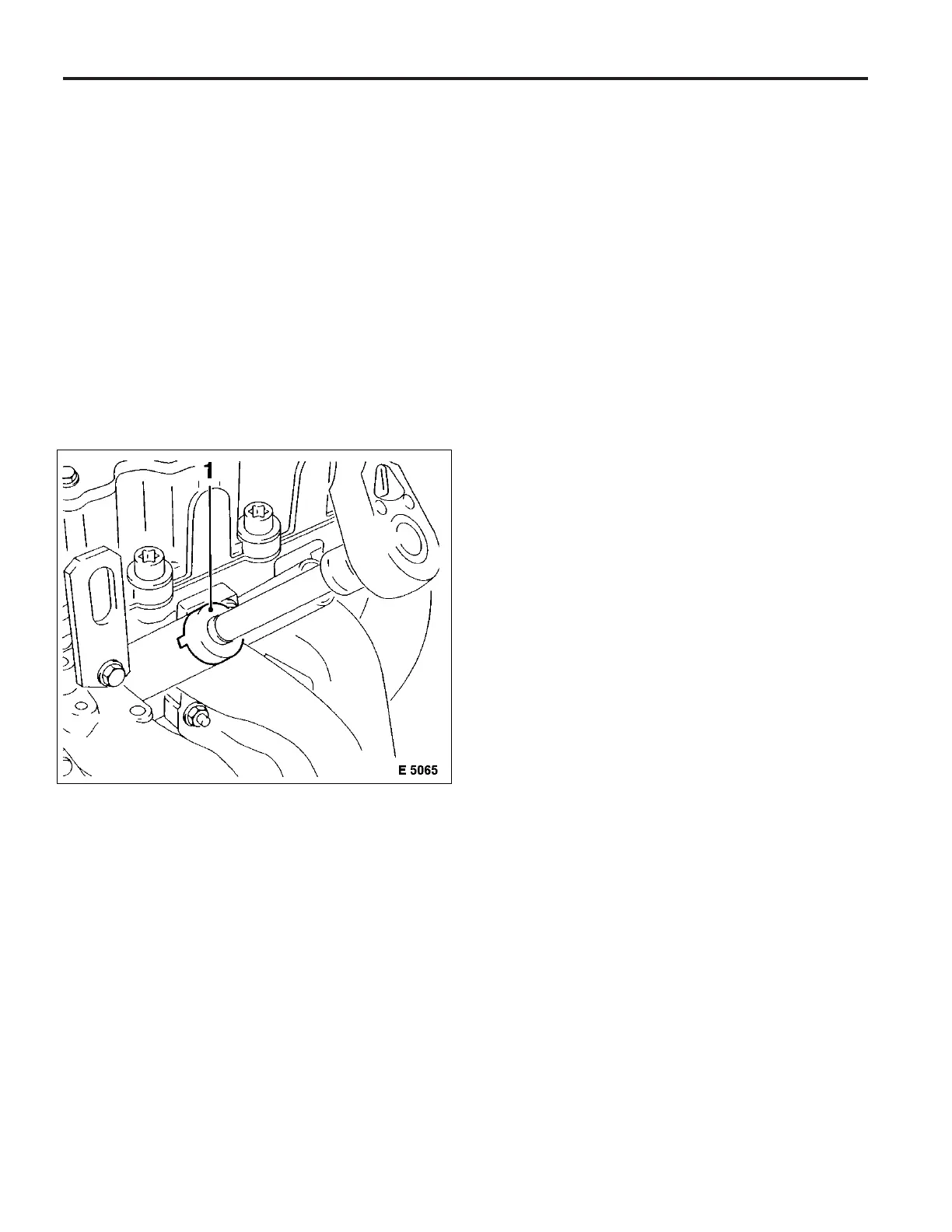

3. Remove heat shields from cylinder head with KM–834–A
(1).
Installation Procedure
1. Coat heat shields with assembly paste (white) and in-
stall at cylinder head with KM–834–A.
Tighten
Tightening torque 25 Nm / 18 lb. ft.
2. Connect spark plug connectors.
3. Remove fastening bolts for ignition cable wiring trough.
Camshaft and Cam Follower, Remove and
Install (Cylinder Head Installed)
Removal Procedure
1. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
2. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.
3. Remove lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
To Next Page
