1-20 Engine Mechanical Industrial 1.6L
Valve Timing, Check
Removal Procedure
1. Disconnect ground cable from battery.
2. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
Inspect

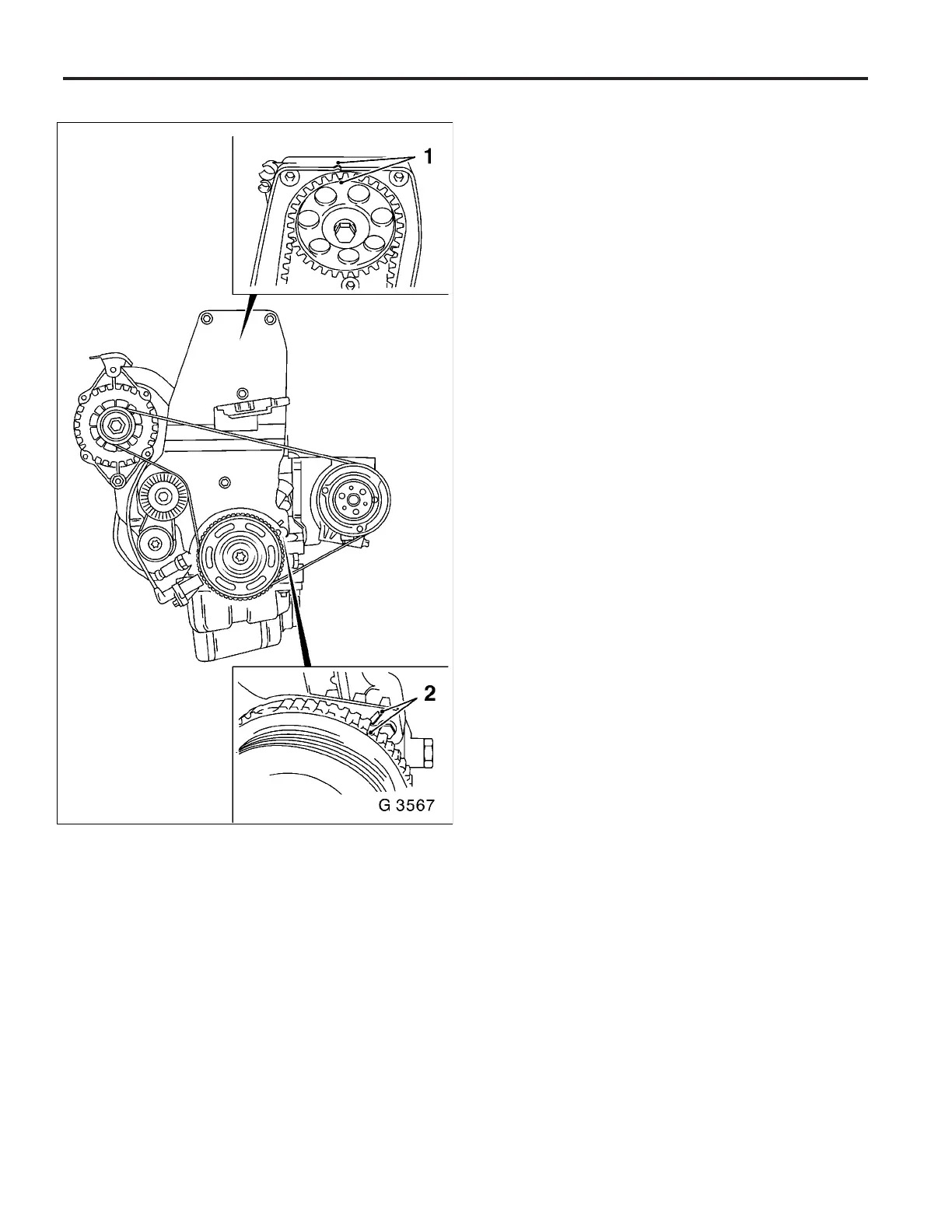

1. At fastening bolt of toothed belt drive gear, turn crank-
shaft in engine rotational direction to ”1st cylinder TDC”
(marking 2). At the same time, notches (1) on camshaft
pulley and rear toothed belt cover must align. Turn crank-
shaft slowly and uniformly.
2. If the timing marks do not align – see operation Valve
Timing, Adjust.
Installation Procedure
1. Install upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
2. Connect ground cable to battery.
Valve Timing, Adjust
Notice: Adjustment is carried out with the engine cold –
at room temperature.
Removal Procedure
1. Disconnect ground cable from battery.
2. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
3. Remove ribbed V–belt – see operation Ribbed V–belts,
Remove and Install.
4. Remove lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
5. Remove engine bleeding hose (1) from camshaft housing
cover.
6. Remove wiring trough (2) from camshaft housing cover.
7. Remove camshaft housing cover (3) from camshaft hous-
ing.
