Industrial 1.6L Engine Mechanical 1-21
Adjust

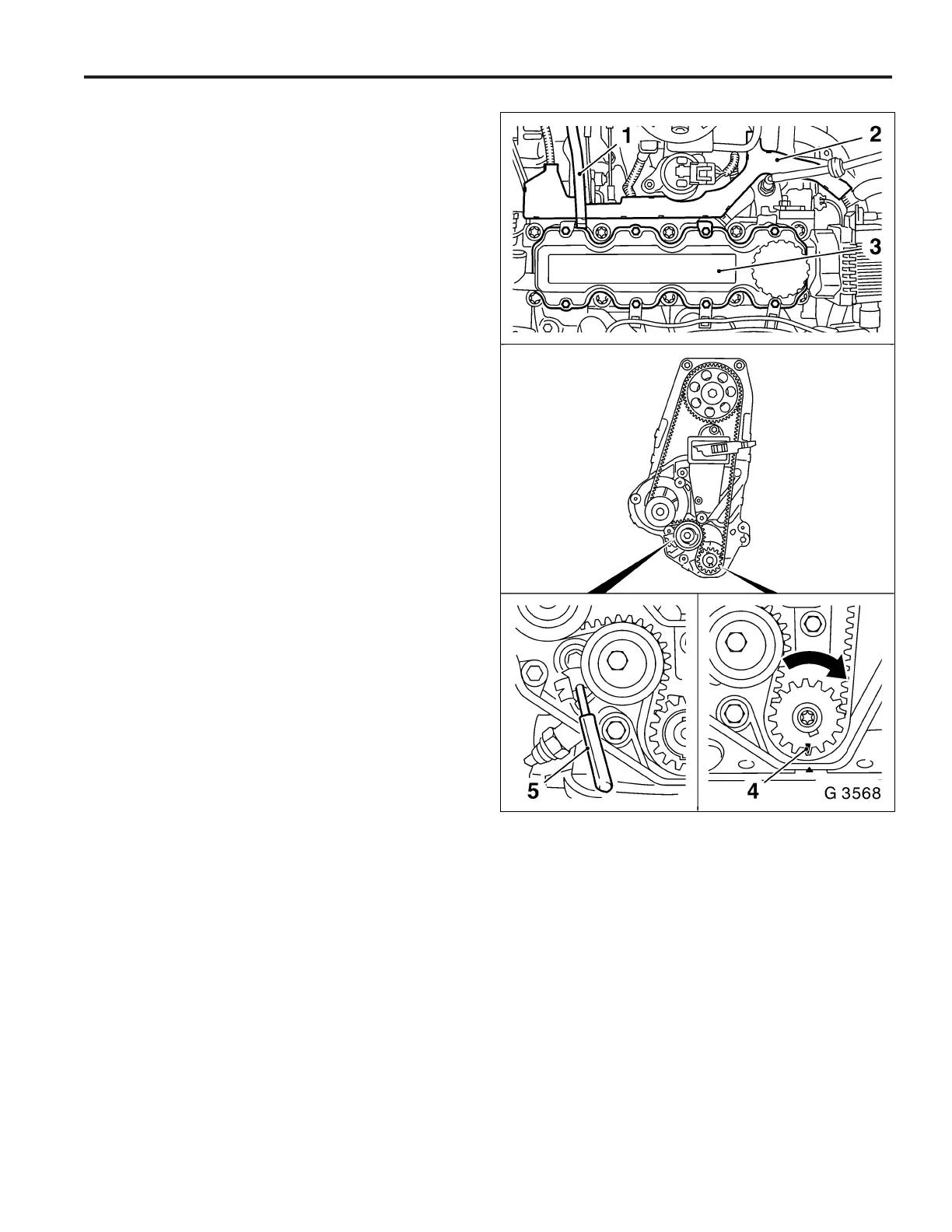

1. Screw fastening bolt for toothed belt drive gear into
crankshaft and turn crankshaft in engine rotational di-
rection until pointer (4) on toothed belt drive gear is flush
with mark on oil pump housing.
2. Move toothed belt tension roller against spring force
upward until bore holes align.
3. Fix toothed belt tension roller in place with suitable drift
(5).
4. Mark running direction of toothed belt and remove
toothed belt.
