1-22 Engine Mechanical Industrial 1.6L
Adjust

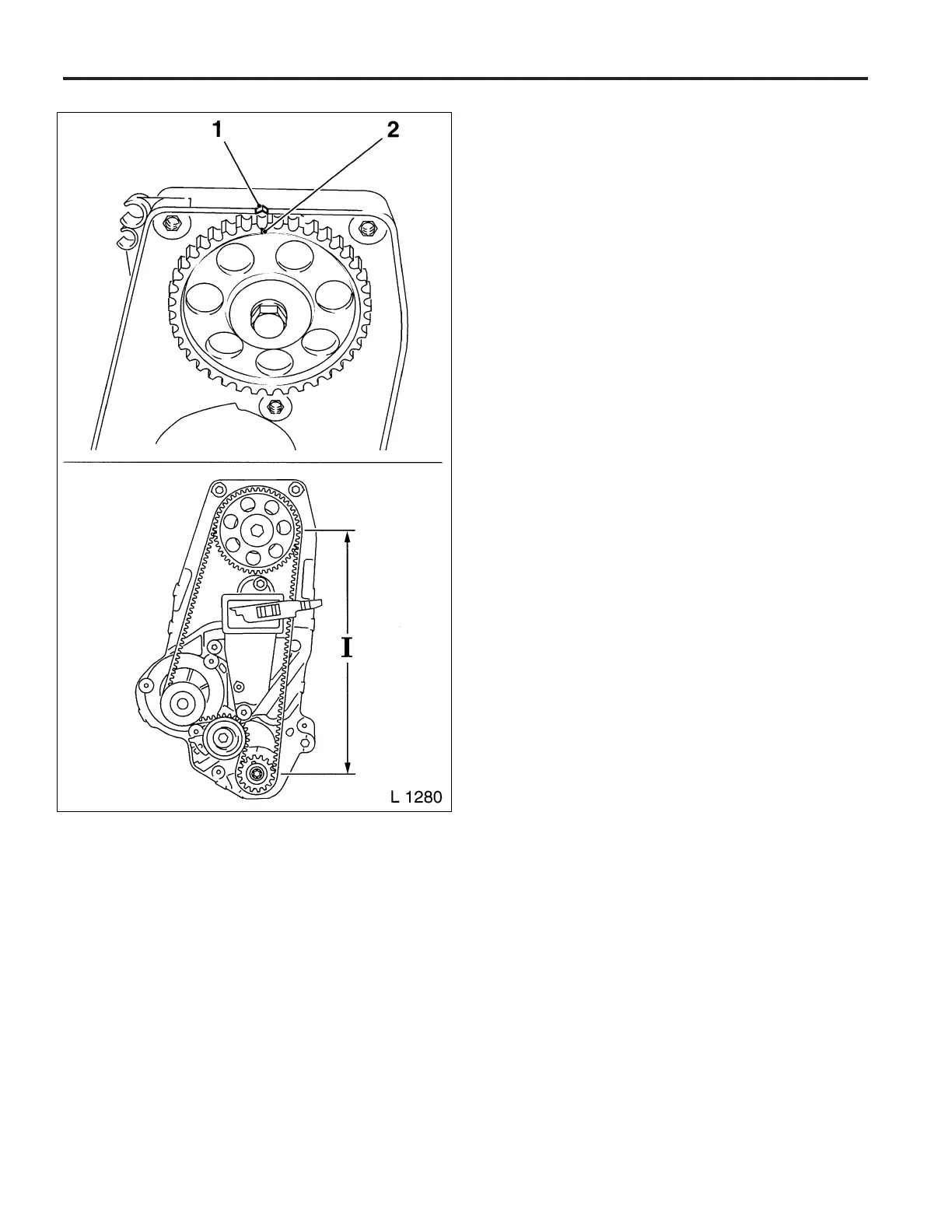

1. At hex of camshaft, turn camshaft sprocket (short way)
to mark. Notch (2) on camshaft sprocket must align with
mark (1) on rear toothed belt cover.
Installation Procedure
1. Attach toothed belt – ensure that tension side (I) is taut.
Note running direction of toothed belt.
2. Remove drift from toothed belt tension roller.
3. Adjust toothed belt tension – see operation Toothed Belt
Tension, Adjust.
4. Install camshaft housing cover at camshaft housing –
Tighten
Tightening torque 8 Nm / 6 lb. ft.
5. Attach wiring trough to camshaft housing.
Tighten
Tightening torque 8 Nm / 6 lb. ft.
6. Attach engine bleeding hose to camshaft housing cover.
Removal Procedure
1. Remove fastening bolt from toothed belt drive gear.
Installation Procedure
1. Install lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
2. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
3. Install upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
4. Connect ground cable to battery.
