Oil Pump, Check
Removal Procedure
1. Remove oil pan – see operation Oil Pan, Remove and
Install.
2. Remove upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
3. Remove ribbed V–belts – see operation Ribbed V–belts,
Remove and Install.
4. Remove lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
5. Remove toothed belt – see operation Toothed Belt, Re-
move and Install.
6. Remove toothed belt tension roller – see operation
Toothed Belt Tension Roller, Remove and Install.
7. Rear toothed belt cover – see operation Toothed Belt
Cover – Rear, Remove and Install.
8. Remove oil pump – see operation Oil Pump, Remove
and Install.

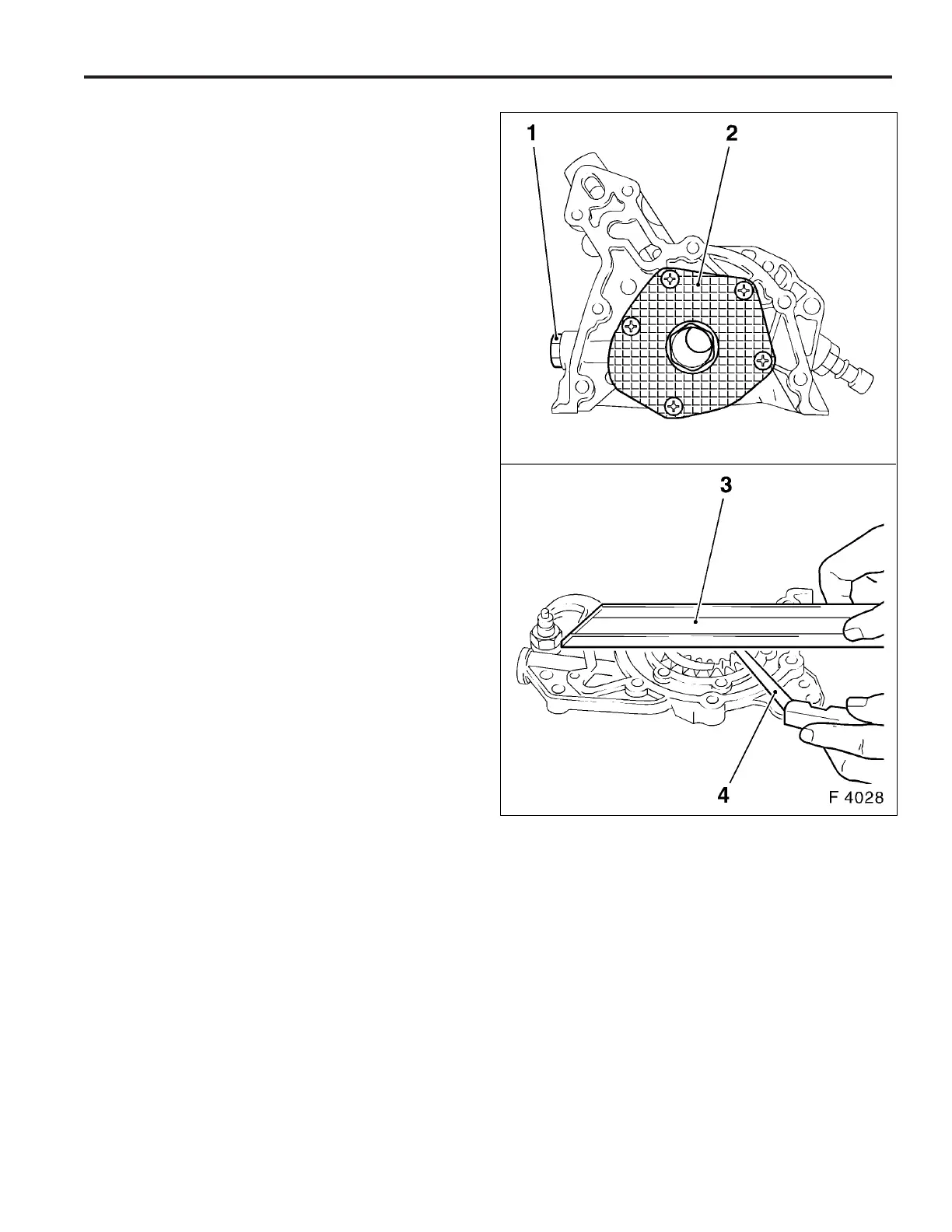

9. Remove safety valve (1) and oil pump cover (2) from oil
pump.
Inspect
1. Check gap of gear pair with feeler gauge (4) and straight
edge (3). Dimension – 0.08 to 0.15 mm.
2. Check oil pump, oil pump cover and safety valve for signs
of wear.
