Industrial 1.6L Engine Mechanical 1-81

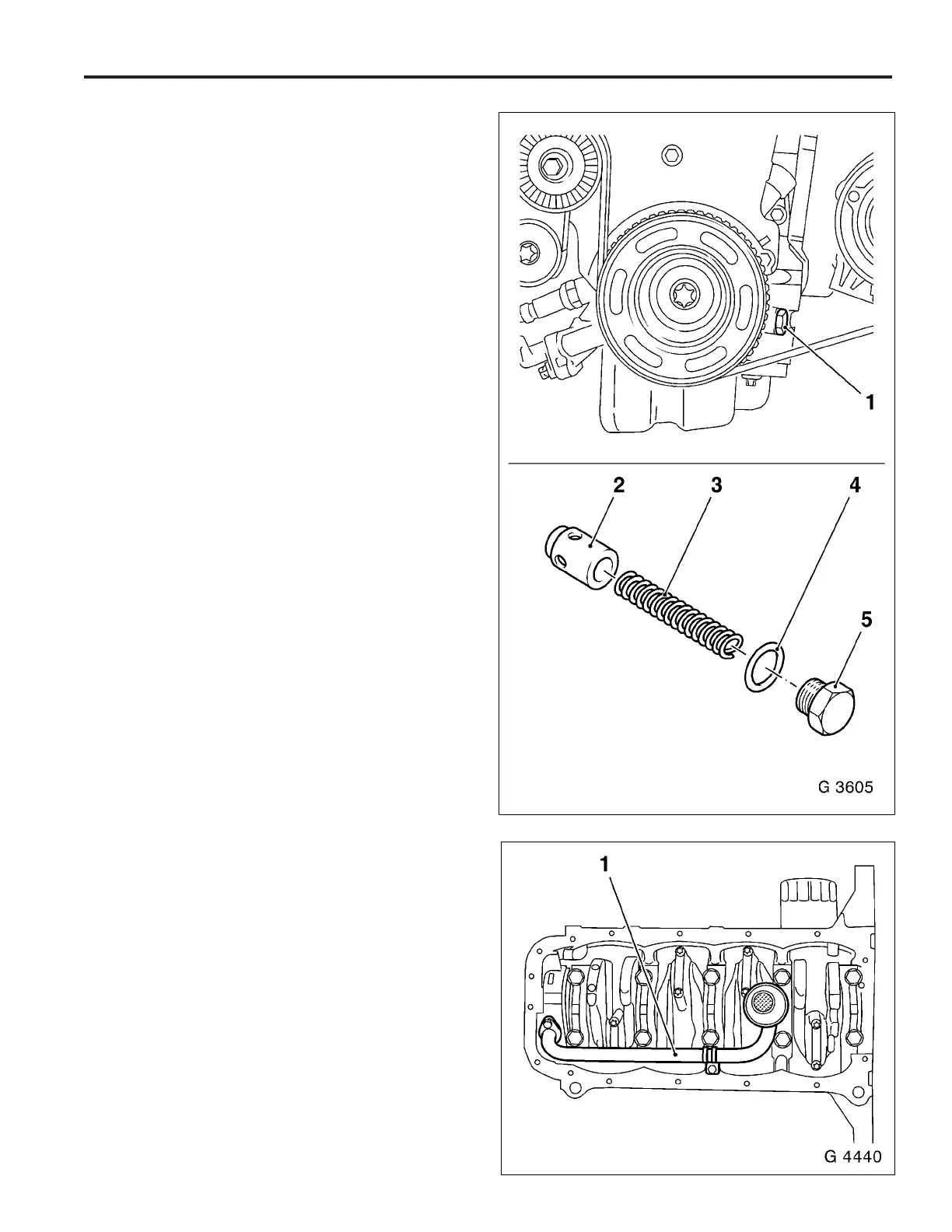

Oil Intake Pipe, Remove and Install
Removal Procedure
1. Remove oil pan – see operation Oil Pan, Remove and
Install.
2. Remove oil intake tube (1) from oil pump and cylinder
block.
Installation Procedure
1. Attach oil intake manifold to oil pump with new seal ring.
Tighten
Tightening torque 8 Nm / 6 lb. ft.1).
2. Attach oil intake manifold to cylinder block.
Tighten
Tightening torque 8 Nm / 6 lb. ft.
3. Install oil pan – see operation Oil Pan, Remove and
Install.
1) Recut thread before reuse and insert bolts with screw
locking compound (red). The installation time including the
torque check is max. 10 min.
Safety Valve, Remove and Install
Removal Procedure
1. Remove closure plug (1) from oil pump.
2. Remove seal ring, spring, piston from oil pump.
Installation Procedure
1. Insert piston (2) – ensure installation position is correct.
2. Insert spring (3) in oil pump.
3. Attach closure plug (5) to oil pump with new seal ring (4).
Tighten
Tightening torque 50 Nm / 37 lb. ft.
