Industrial 1.6L Engine Mechanical 1-75
Installation Procedure

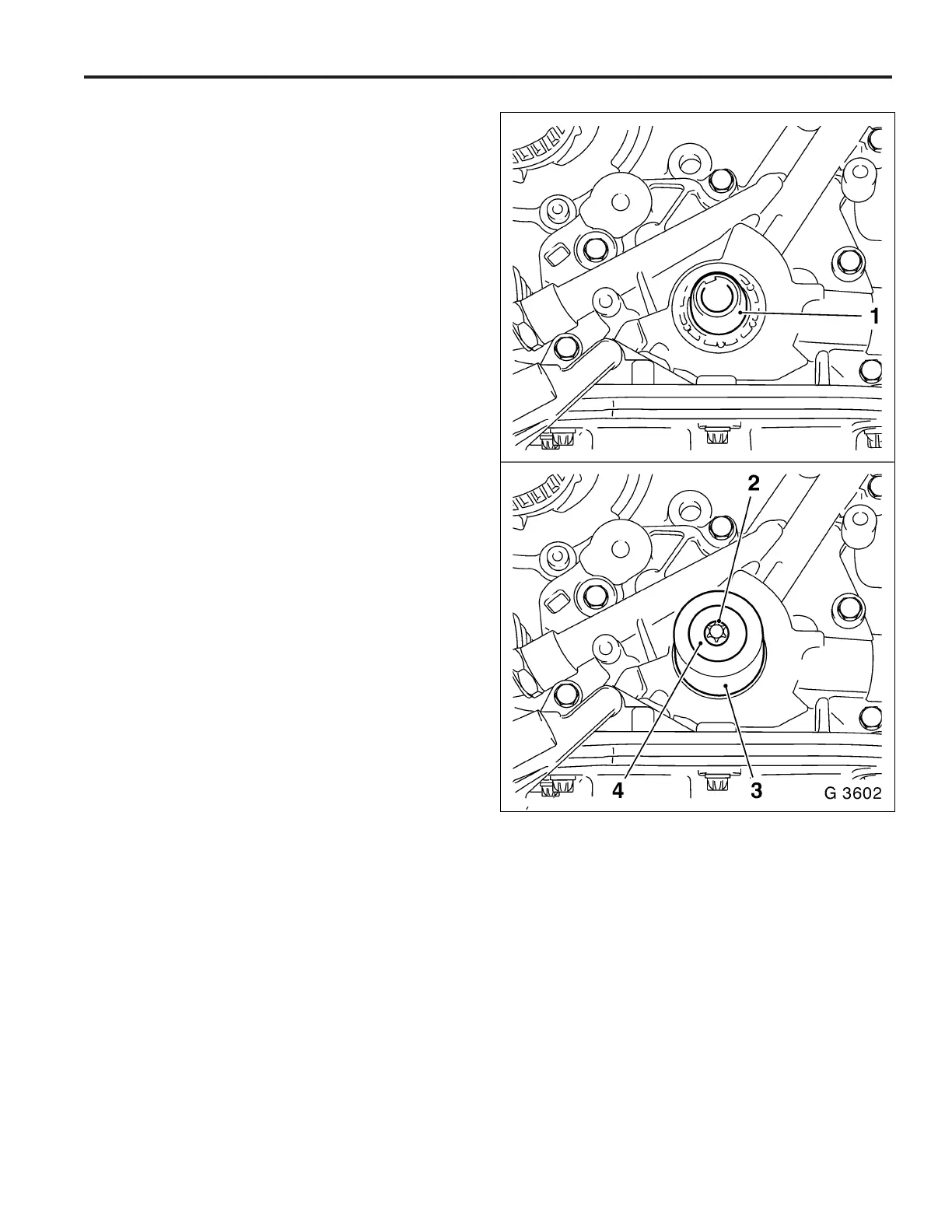

1. Slide Protective Sleeve KM–417 (1) onto crankshaft jour-
nal. Lightly coat sealing lip of the new seal ring with sili-
con grease (white) and slide over the protective sleeve
onto crankshaft journal.
Removal Procedure
1. Remove protective sleeve of KM–417 from crank journal.
Installation Procedure
1. Press seal ring with KM–417 (3) in oil pump – use bolt (2)
and washer (4) of toothed belt drive gear.
2. Slide toothed belt drive gear onto crankshaft.
3. Install toothed belt – see operation Toothed Belt, Re-
move and Install.
5. Install lower part of toothed belt cover – see operation
Toothed Belt Cover – Lower Part, Remove and Install.
6. Install ribbed V–belt – see operation Ribbed V–belt,
Remove and Install.
7. Install upper part of toothed belt cover – see operation
Toothed Belt Cover – Upper Part, Remove and Install.
