1-74 Engine Mechanical Industrial 1.6L

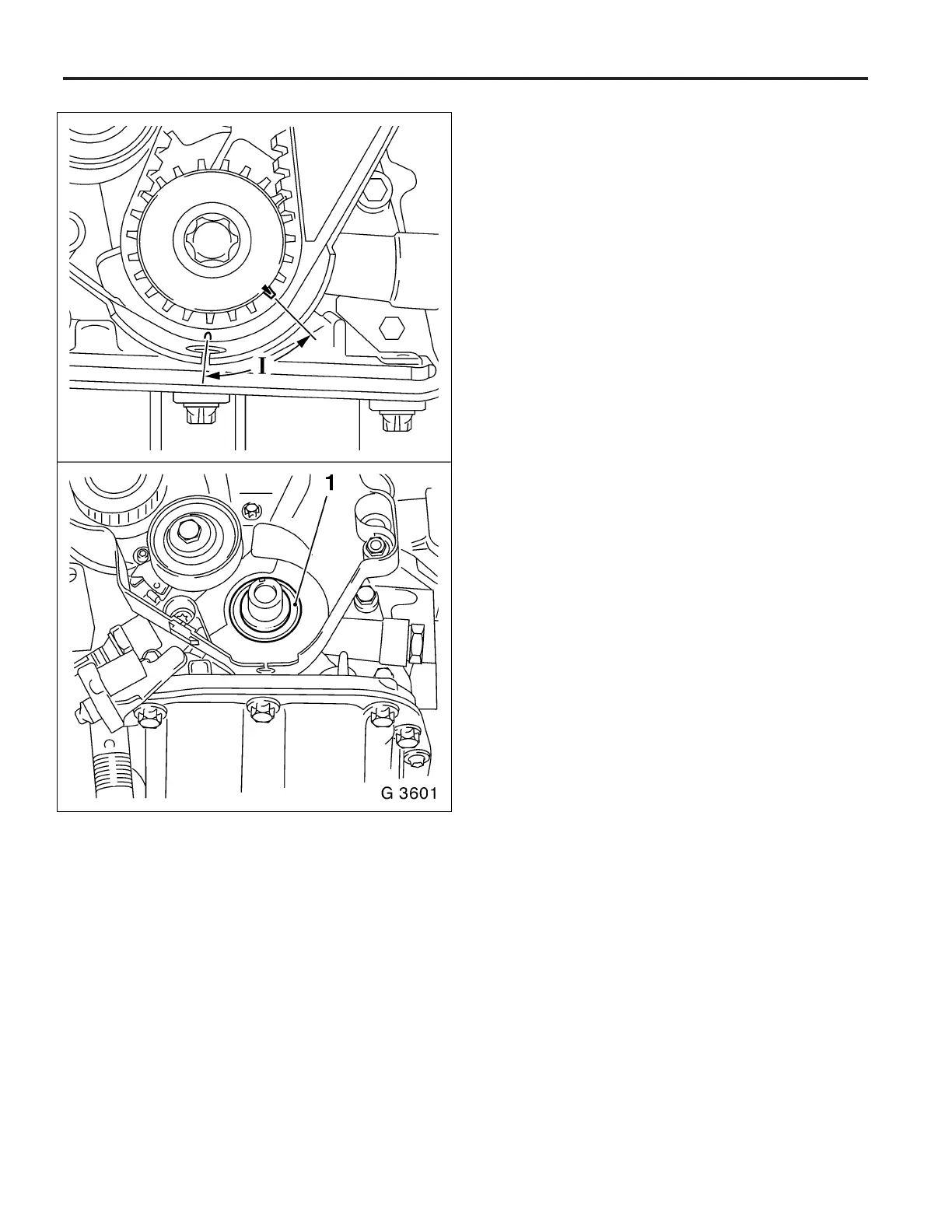

Important: Before dismantling the toothed belt – screw
fastening bolt for toothed belt drive gear into crankshaft and
move crankshaft in engine rotational direction by 60°
(dimension I) to before TDC mark.
Removal Procedure
1. Remove toothed belt – see operation Toothed Belt, Re-
move and Install.
2. Remove fastening bolt from toothed belt drive gear and
pull toothed belt drive gear from crankshaft.
3. Edge out crankshaft seal ring (1) with suitable tool.
Important: Do not damage sealing surfaces.
