3-38 Engine Electrical Industrial 1.6L

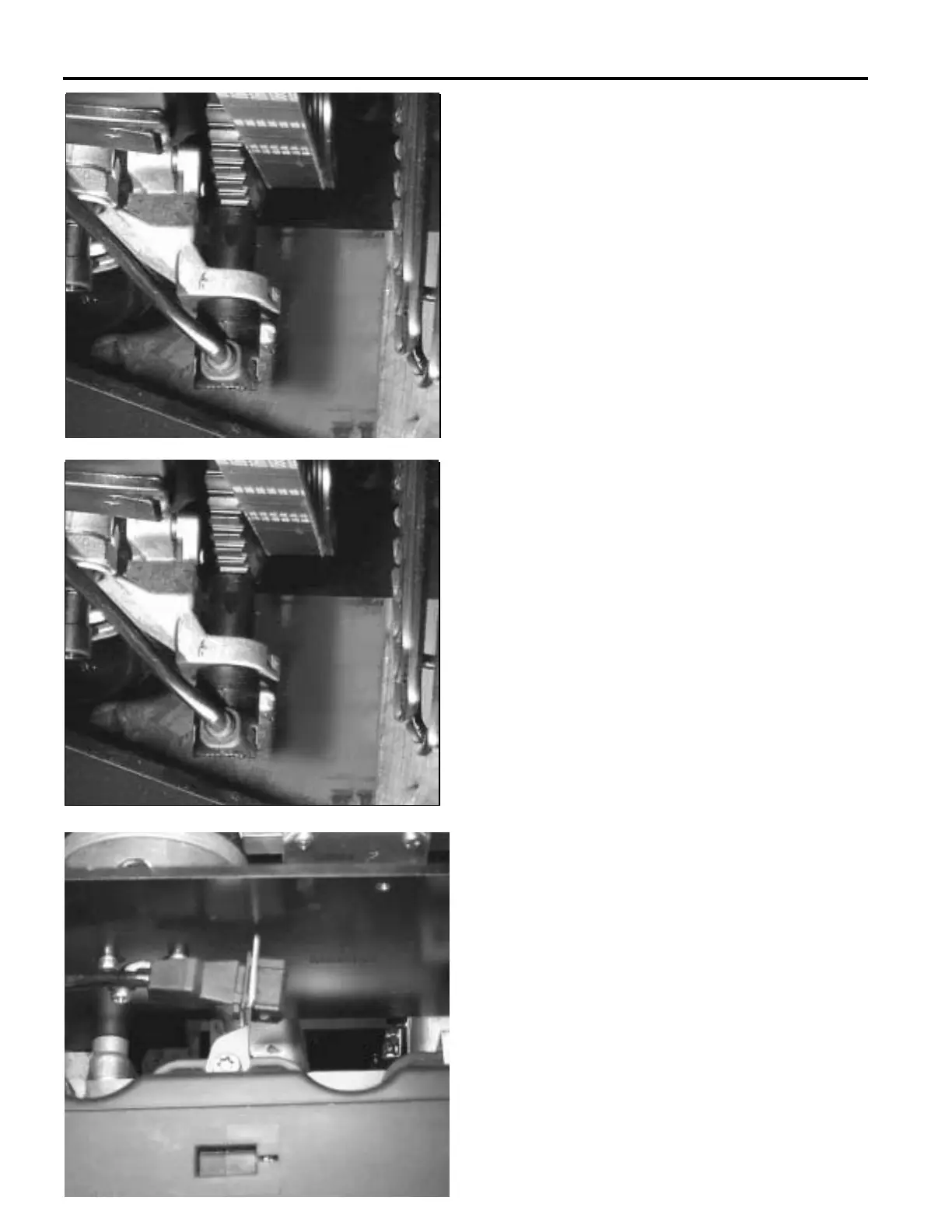

3. Remove the sensor mounting bolt.
4. Noting the pigtail routing, remove the sensor and
pigtail from engine.
Installation Procedure
1. Position the crankshaft position sensor in its mounting
bracket.
2. Install the sensor mounting bolt.
Tighten
Tighten the mounting bolt to 8 N•m (71 lb in).
3. Following the routing noted during removal, route the
pigtail and snap it into the bracket on the camshaft
housing cover.
4. Connect the engine wiring harness connector to the
crankshaft position sensor pigtail.
5. Measure distance between crankshaft position sensor
and the reluctor wheel with a feeler gauge.
Specification: 0.3-1.5 mm. (0.012-0.059 in.)
6. If the gap is incorrect, replace the crankshaft position
sensor bracket.
80363006
80363007
80363007
