Industrial 1.6L Engine Mechanical 1-37
Installation Procedure
Notice: Refer to Fastener Notice on page 1-2.

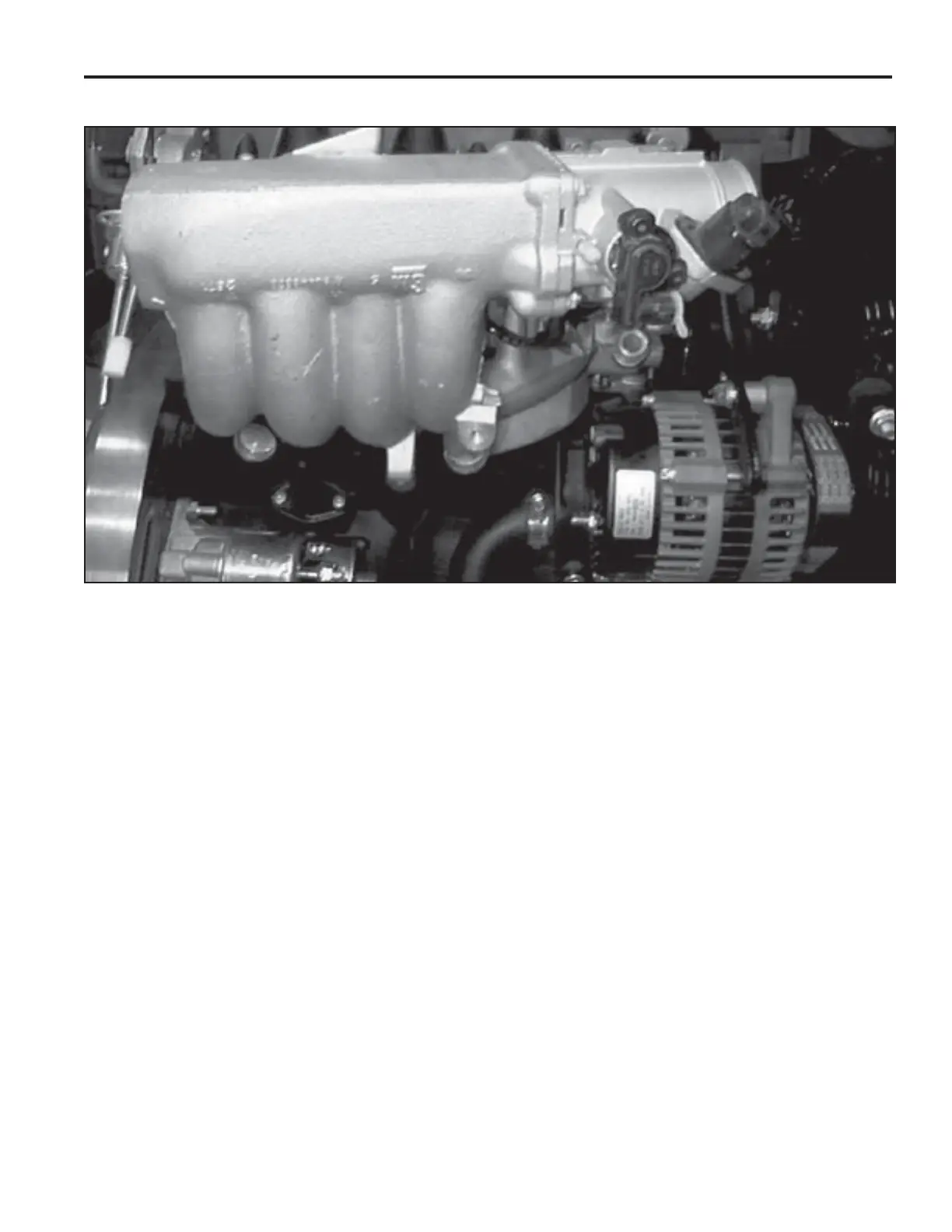

1. Install the intake manifold, a new gasket, and the intake
manifold mounting bolts.
Tighten
Tighten the intake manifold bolts to 22 N•m (16 lb ft).
2. Swing the generator forward into position and install the
top mounting bolt.
Tighten
Tighten the top mounting bolt to 20 N•m (15 lb ft).
Tighten the bottom mounting bolt and nut to 35 N•m
(26 lb ft).
3. Install the drive belt. Refer to Drive Belt Replacement
in Engine Cooling.
4. Connect the fuel and vent lines.
5. Connect all electrical connectors to the sensors
mounted on the intake manifold.
6. Connect ground cable to the battery.
Tighten
Tighten the battery side terminal bolts (if applicable) to
12 N•m (106 lb in).
Tighten the top terminal nuts (if applicable) to 18 N•m
(13 lb ft).
80361003
Intake Manifold, Remove and Install - Port Fuel Injected Models (Continued)
