Industrial 1.6L Engine Mechanical 1-67

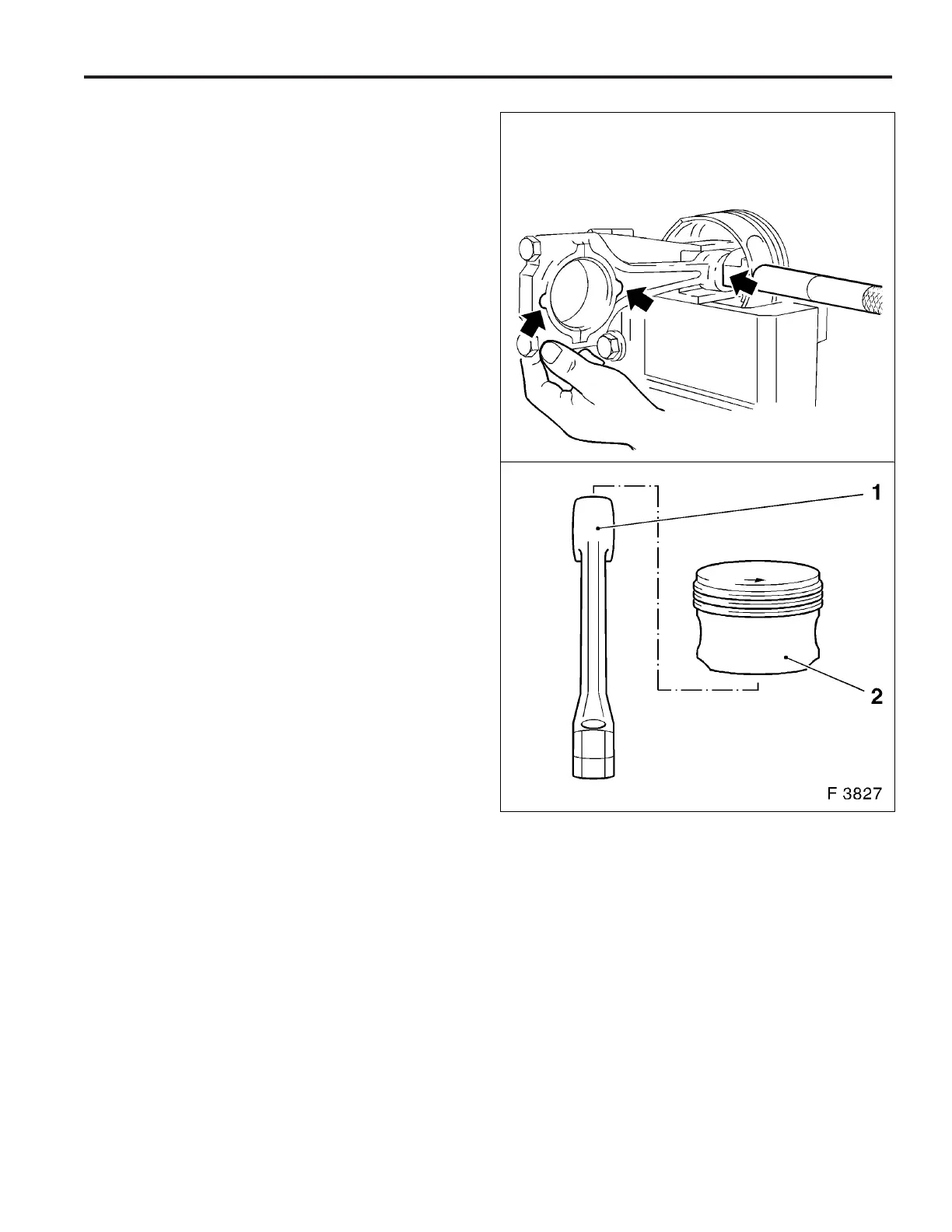

Important: Installation position: Bead (arrow) on con–rod
points to flattened area (arrow) of the piston pin eye.
Notice: Firmly seated piston pin cannot be pressed
further. Perform assembly quickly.
Assemble
1. Con–rod (1), piston pin, piston (2).
2. Slide new piston pin to stop in piston with guide drift.
Installation Procedure
1. Install piston with con–rod – see operation Piston with
Con–rod, Remove and Install.
