WinGD X92 - Page 104

Maintenance1132−2/A1
Winterthur Gas & Diesel Ltd.
4/ 15
22) Put the chain of the manual ratchet
(H1) through the roller support 94117,
see Fig. 5.
23) Attach the hook of the chain to the lug
94116C on the bearing cover (1).
CAUTION
Damage Hazard: Use the
roller support (94117) only
as shown on its Warning
plate. The maximum
permitted load is 16000 N
at 45° .
24) Use the manual ratchet (H1) to lift the
bearing cover (1), see Fig. 6.
25) Attach the eye bolt 94045−M56 to the
cylinder block.
26) Attach the shackle 94019K to the lug
94116C on the bearing cover (1).
27) Attach the the chain block 94017-028
(H4) to the eye bolt 94045-M56 and the
hook to the bearing cover.
28) Apply tension to the chain block H4.
29) Remove the roller support 94117 and
the manual ratchet 94016-012.
2015
Removal and Fitting of a Main Bearing

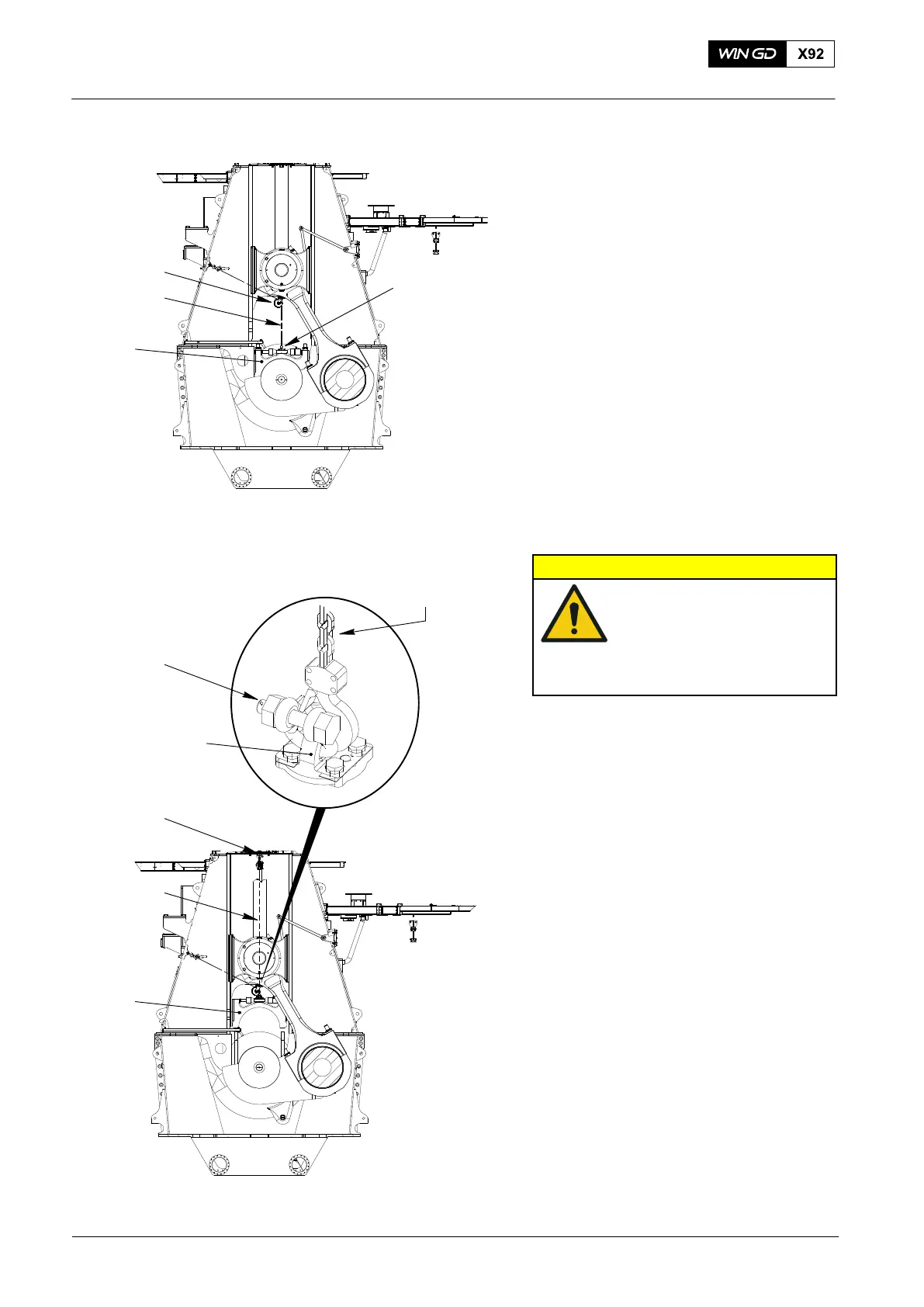

Fig. 5
H1
94117
1
94116C
Fig. 6
1
94045−M56
94017−028
94019K
94116C
H1
WCH03014
WCH03014
H1
H4
