Maintenance2303−1/A1
Winterthur Gas & Diesel Ltd.
4/ 10
II - II
I - I
2
3
4
5
Fig. 3
1
WCH02943
II
II
II
1
6
WCH02943
9 8
7 7
10
4
5
2

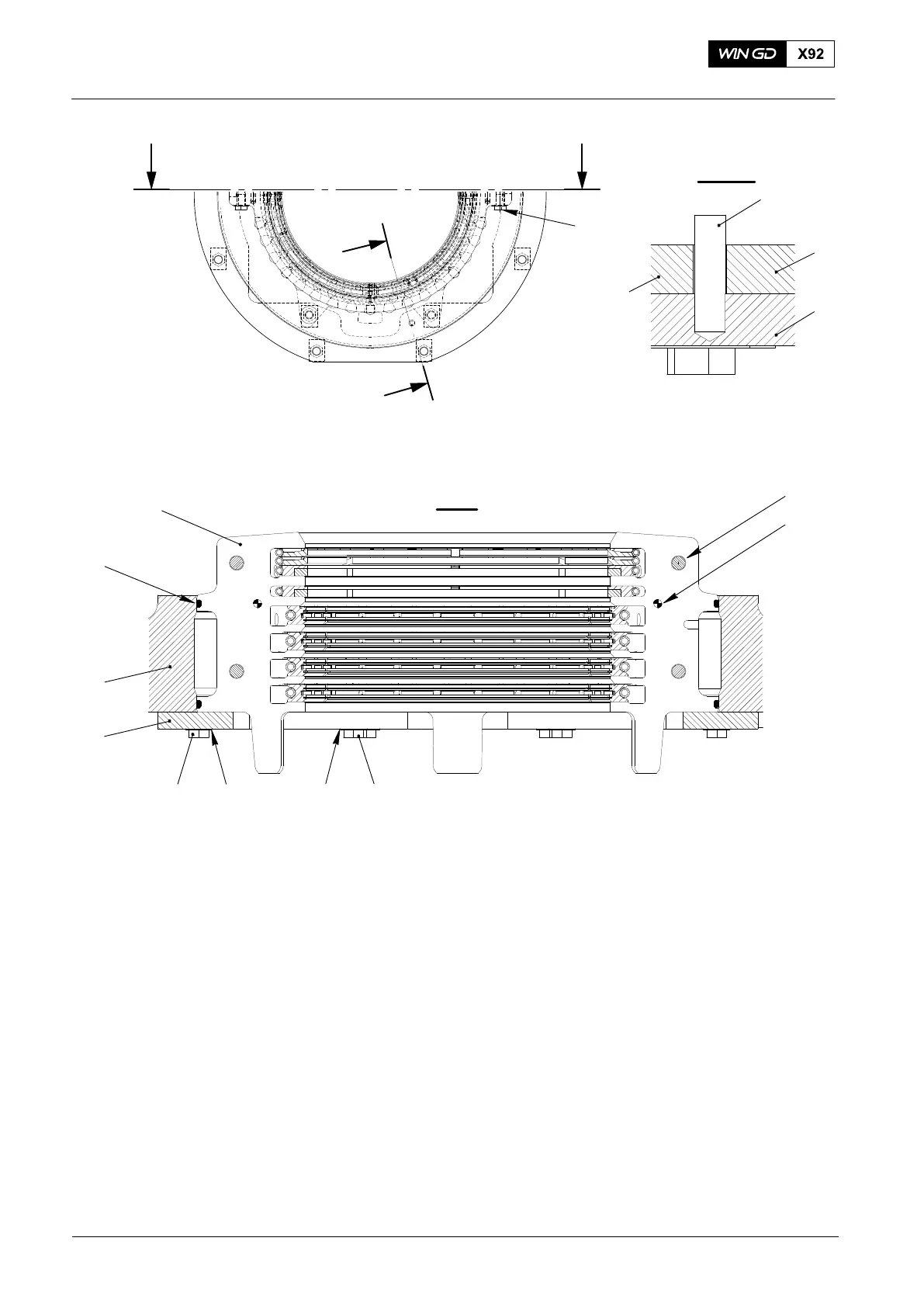

Fig. 3: Gland Box, General Views
1 Bolt M16x60 and nut M16 6 Dowel Pins
2 Spring Dowel Pin 7 Inner Bolt M16x100
3 Gland box housing, 2-part 8 Locking Plate
4 Support 9 Outer Bolt M16x100
5 Cylinder Block 10 O-Rings
2015
Remove, Disassemble, Measure Worn Parts, Assemble, Install
