Maintenance3303−3/A1
Winterthur Gas & Diesel Ltd.
6/ 8

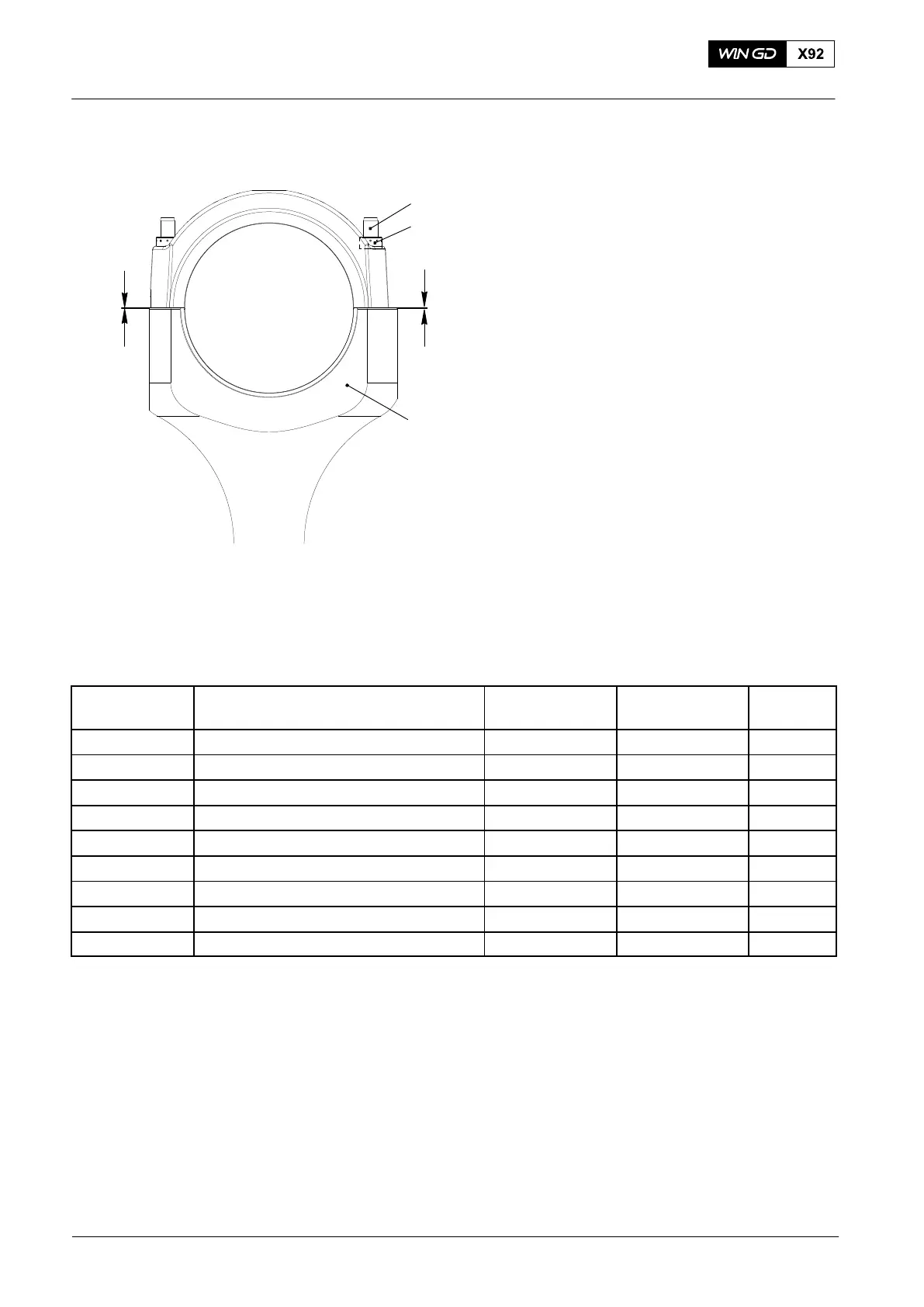

17) Put the round nuts (2, Fig. 9) on the
elastic studs (1).
18) Tighten the round nuts (2) equally with
a round bar.
19) Measure the distance (X1, X2) between
the edges of the bearing shells and the
connecting rod (3).
20) For a new bearing shell the clearance
should be as follows:
X1 + X2 = 0.62±0.04
21) Apply tension to the elastic studs (2),
refer to 9403−4, paragraph 3.
22) Remove all tools and equipment used
for this installation procedure.
Note: Do not remove the holders (94333)
at this step.
Table 1: ISO G 1000/1500 Suppliers
Supplier
Type Viscosity at
40° C mm
2
/s
Viscosity at
100° C mm
2
/s
Weight at
15° C g/ml
BP ENERGOL DC 1000 980 49.0 0.913
BP ENERGOL DCW 1000 920 40.0 0.913
CHEVRON CYLINDER OIL 1000 1000 43.1 0.937
EXXON/ESSO CYLESSO 1000 950 44.0
EXXON/ESSO CYLESSO TK 1000 925 46.7
MOBIL EXTRA HECLA SUPER Cylinder Oil 680 39.0 0.905
SHEEL FIONA Oil 1500 1500 37.0 0.958
SHEEL VALVATA OIL 1000 1000 45.4 0.924
TEXACO 650T MINERAL Cylinder Oil 985 44.0 0.919
2015
Top End Bearing − Removal, Inspection Installation
x
2
x
1
2
3
1
WCH02447
Fig. 9
