Maintenance
5552−1/A2
Winterthur Gas & Diesel Ltd.
3/ 9
2. Oil Baffle − Removal
Note: The oil baffle has four parts.
1) Remove the four bolts (6, Fig. 3) and
locking tabs (7).
2) Remove the pipe (5) from the oil baffle.
3) Remove and discard the O-ring (8).
4) Remove the three Allen screws (9).
5) Put two M8 screws into the holes (1).
6) Tighten the two M8 screws to loosen
the oil baffle.
7) Remove the two M8 screws.
8) From the segment (4), remove the four
screws (2) and the locking tabs (3).
9) Remove the segment (4).
10) Turn the remaining segments
counterclockwise until you can get
access to the segment (10).
11) Remove the two screws (2) and the
locking tabs (3).
12) Remove the segment (10).
13) Do step 10) to step 12) for the
remaining segments (11, 12).
2015
Camshaft and Bearing Shells − Removal and Installation (Independent Lubrication System)

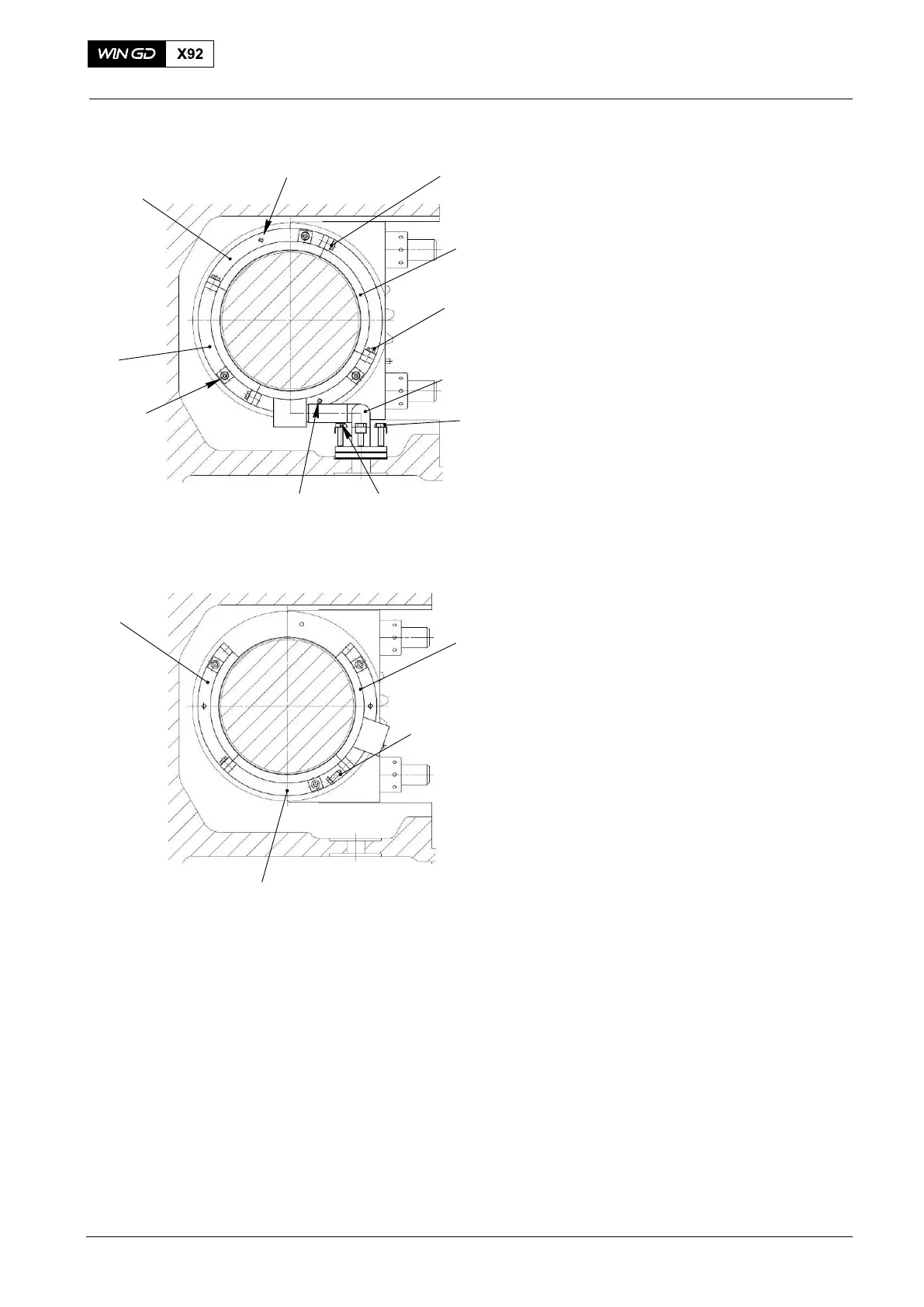

Fig. 3
2
3
4
2
3
6
5
7
8
1
1
9
2
3
10
11
12
11
12
