Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
12/ 41

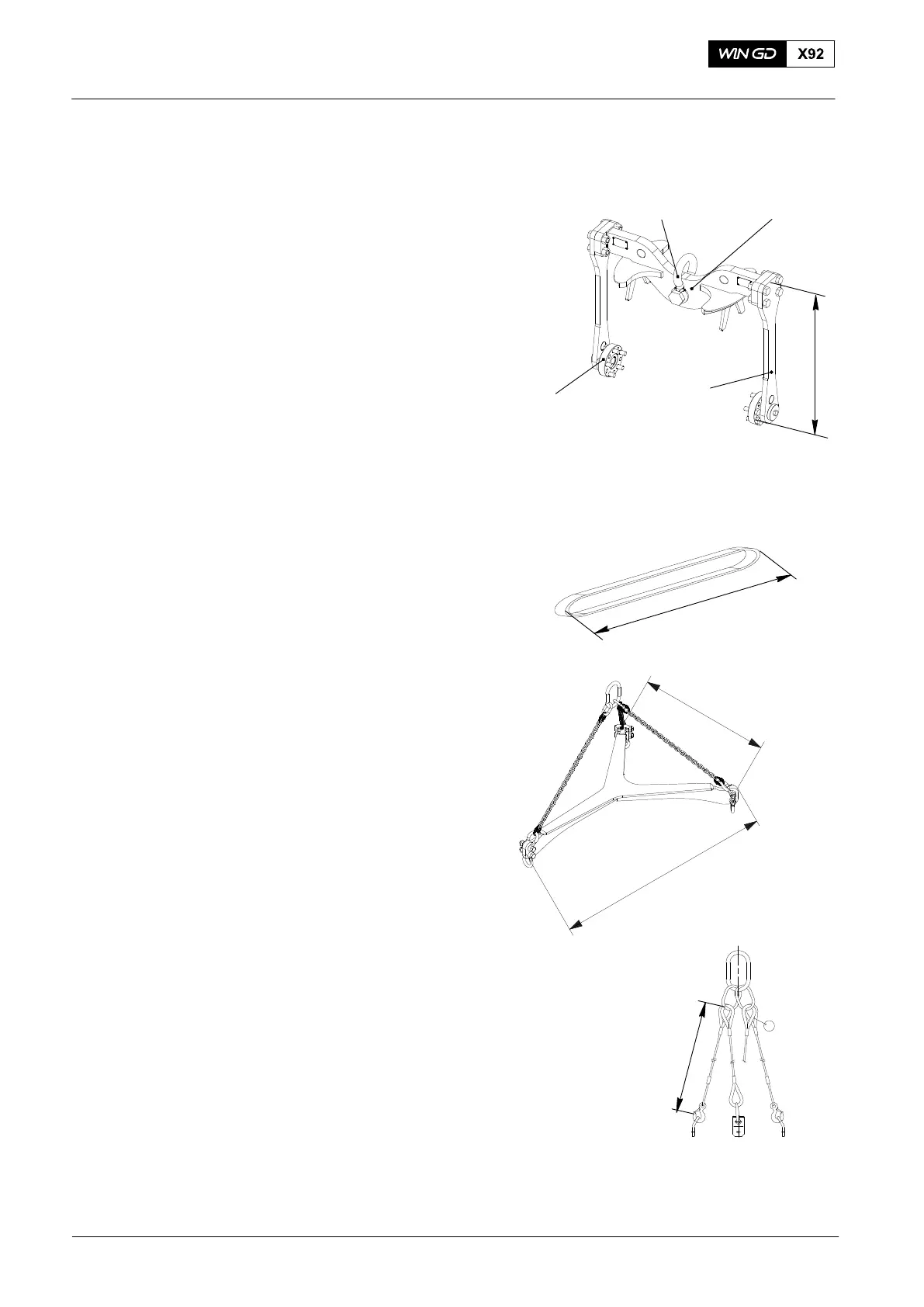

94201 1 Lifting device
for fitting and transporting a cylinder
Liner
X = 1443 mm
Mass approx. 478 kg
(WLL 11100 kg)
includes:
94201A 1 Lifting tool
X = 1372 mm
Mass approx. 297kg
94201B 2 Holder
X = 1370 mm
Mass approx.48.7 kg
94201C 2 Flange coupling
X = Ø230 mm
94201D Shackle
X
94201A
94201B
94201C
94201D
WCH02256
94202K 1 Round sling
X = 2000 mm
WCH02256
X
94205
1
Lifting tool
for bottom water guide jacket
X = 1260 mm
Y = 925
Includes:
94205A Chain
WCH03833
X
Y
94209 1 Lifting tool
for antipolishing ring
X = 1350 mm
(WLL 0−45° kg = 1485 KG)
(WLL 45−60° kg = 1050 KG)
X
WCH02272
Standard Tools
2017−11
