Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
13/ 41

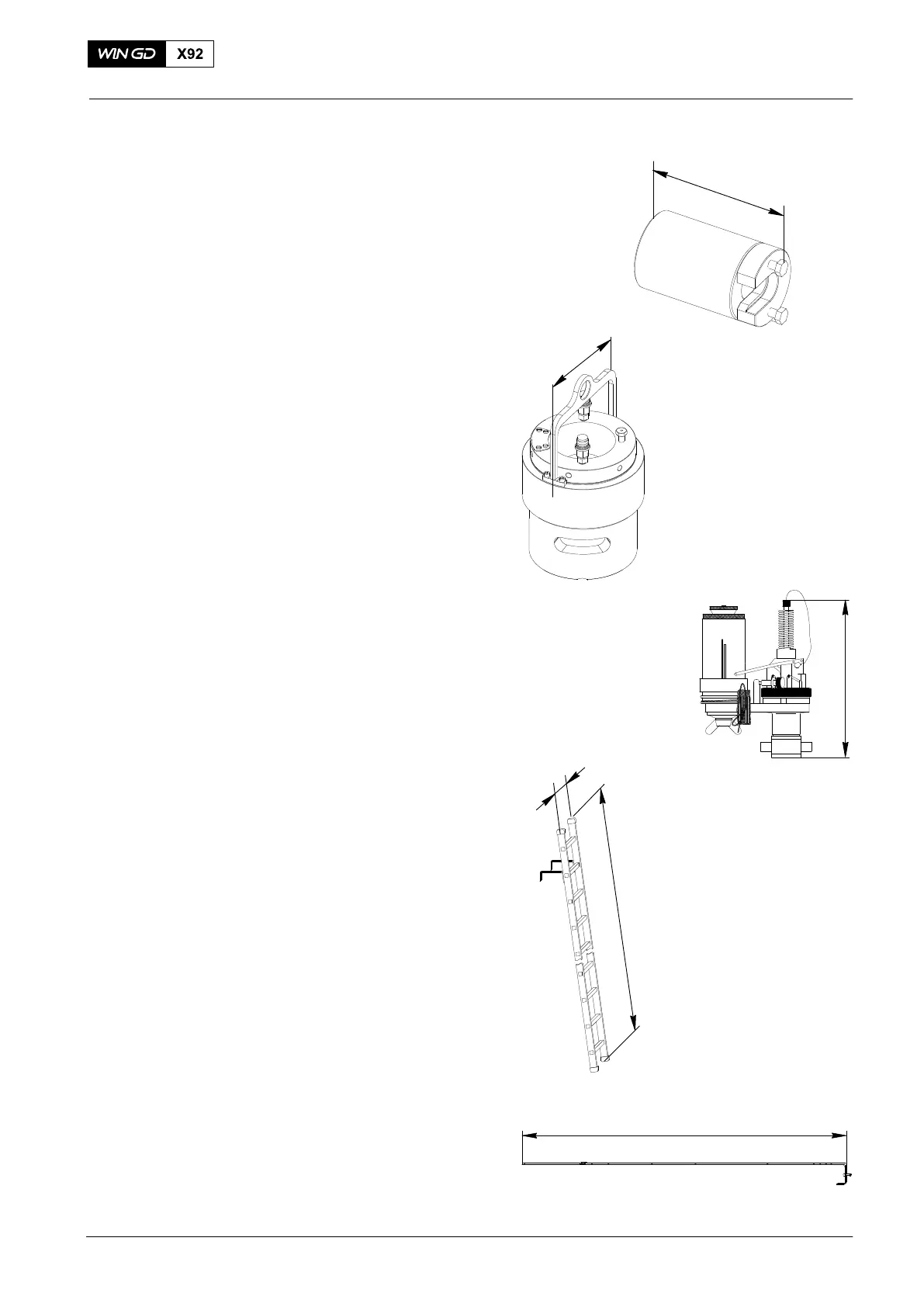

94213 1 Dismantling tool
X = 142 mm
X
WCH02256
94215A 10 Pre-tensioner
for cylinder cover studs
X = Ø 228 mm
Mass approx. 37.1 kg
WCH02830
X
94219 1 Cylinder pressure measuring tool
(indicator)
including a wooden box
X = 165 mm
WCH03750
X
94224 1 Ladder
for measuring cylinder liner bore
X = 360 mm
Y = 4400 mm
000.420/93
Y
X
94225 1 Measuring gauge
for measuring cylinder liner bore
(accessory for it:
inside micrometer tool 94101)
X = 3938 mm
X
000.419/93
Standard Tools
