Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
21/ 41

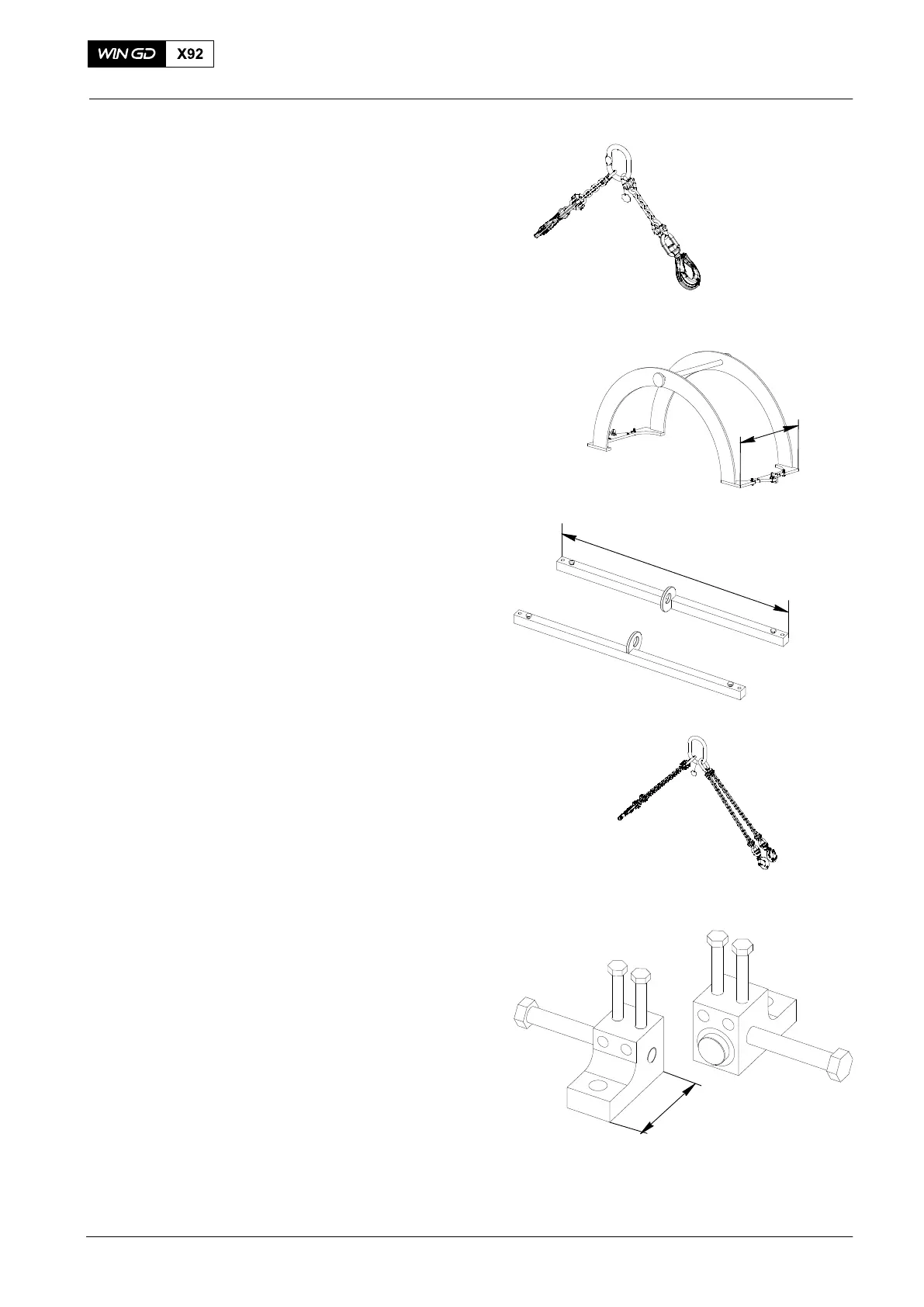

94325 1 Chain
For lifting the top end bearing
cover/shell
For pulling the crosshead pin
2 slings à 424 mm
Mass approx. 4 kg
(WLL 1500 kg)
WCH02432
94326 1 Console Frame
for removal and fitting of bottom end
bearing shell
X = 405 mm
Mass approx. 31.6 kg
(WLL 120 kg)
X
012.265/04
94326A 2 Bracket
for removal and fitting of bottom top
end bearing shell
X = 910 mm
X
WCH02836
94327 1 Chain
for removal and fitting lower
connecting rod bearing shell
4 slings à 824 mm
Mass approx. 5.16 kg
(WLL 1700 kg)
WCH02420
94333 1 Holder
To hold the piston
X = 220 mm
X
WCH02271
Standard Tools
2015
