Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
22/ 41

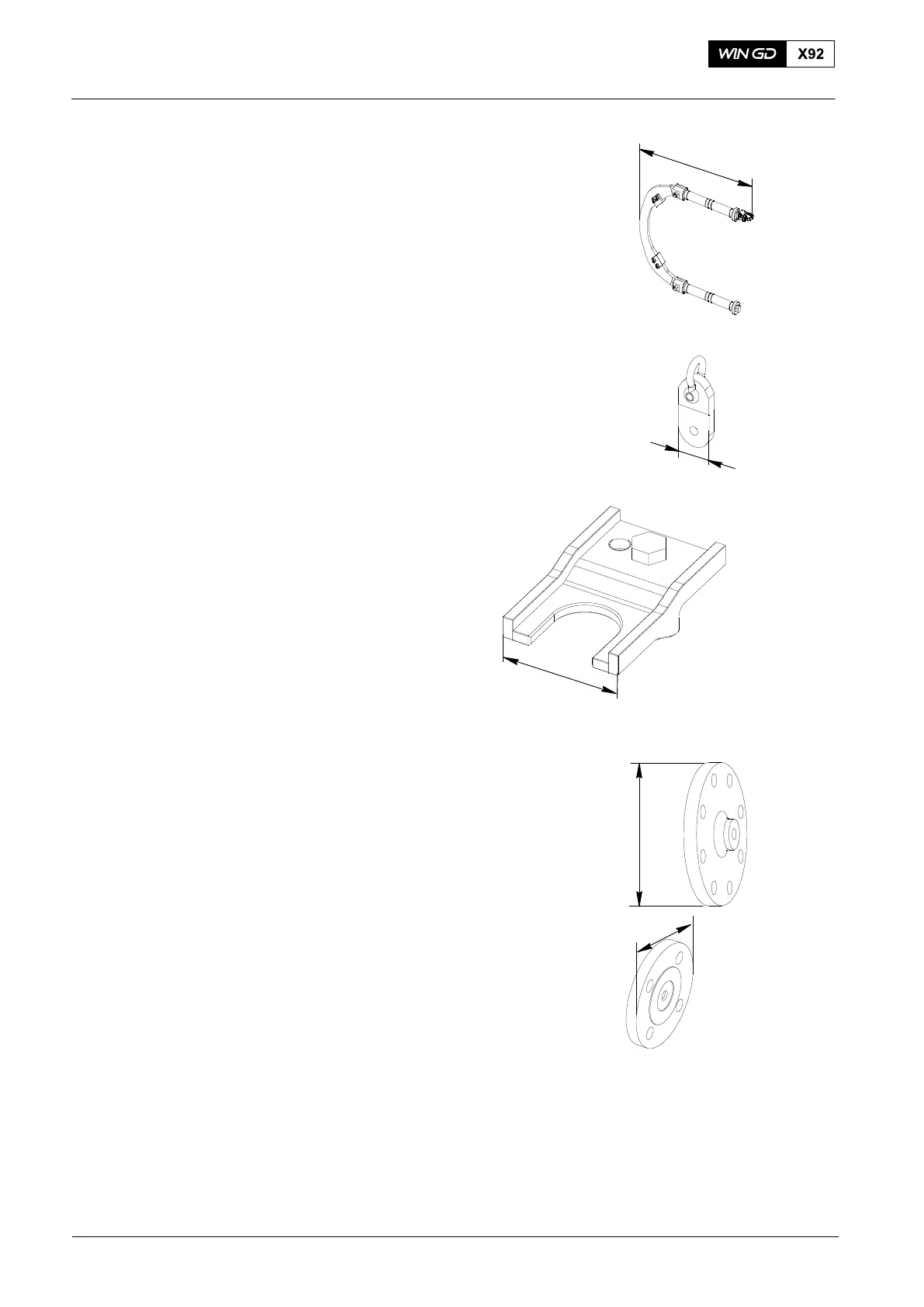

94334 1 Bracket
for removal and fitting of a connecting
rod (for bearing pin ∅ 1120 mm)
X = 1730 mm
Mass approx. 236 kg
WCH02270
X
94334A 1 Connecting element with shackle
X = 120 mm
(WLL 6700 kg)
WCH02270
X
94335 1 Stop plate
with screw M36x70
for inspection to top end bearing
X = 218 mm
WCH02835
X
94336 1 Connecting flange
for pre-lubrication of top and bottom
end bearings
X = ∅ 185 mm
X
016.798/08
94336A 1 Connecting flange
Crosshead lubrication pump
For high pressure pump
X = ∅ 150mm
WCH03834
X
Standard Tools
2017−11
