Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
23/ 41

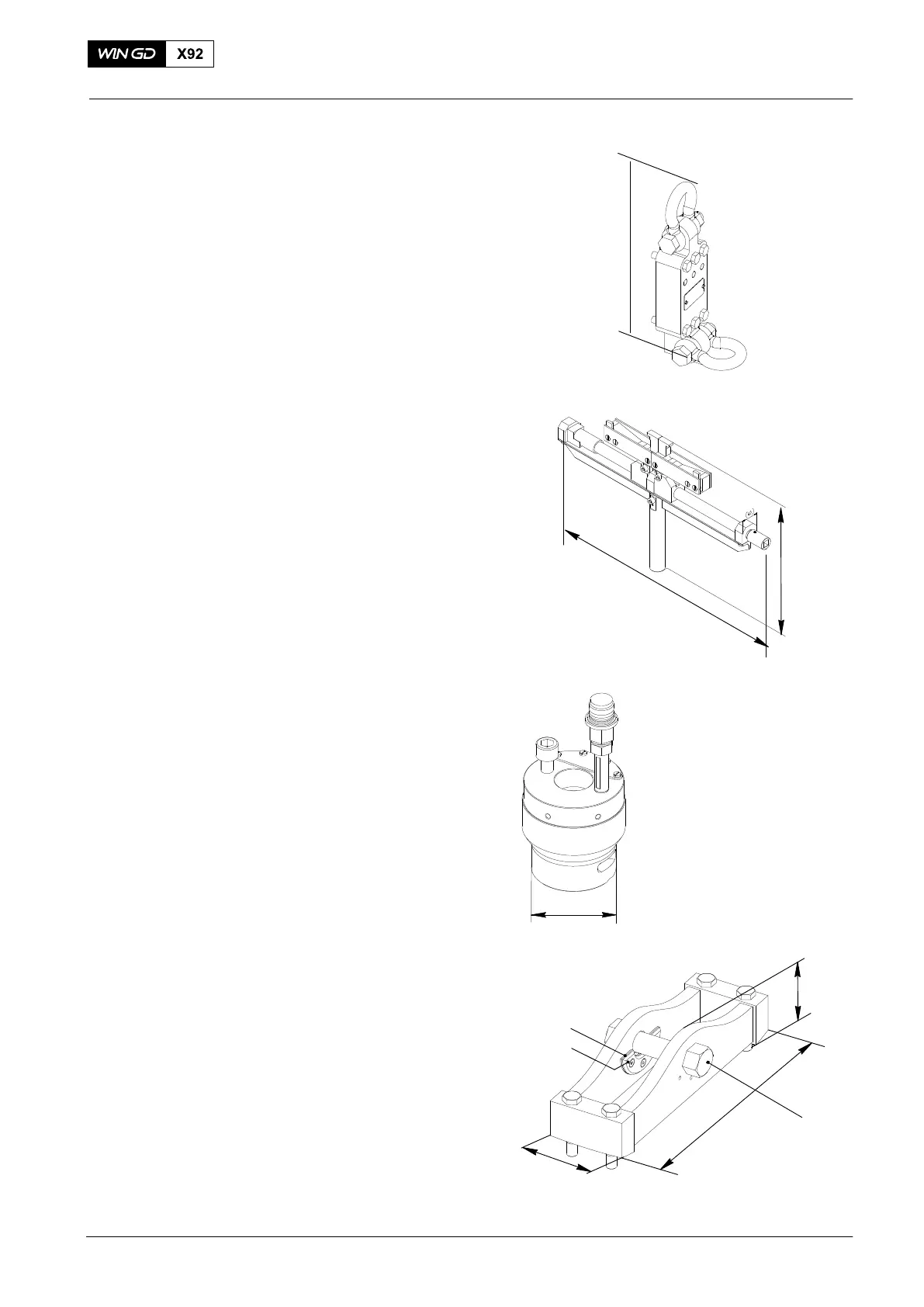

94337 2 Lifting tools
with 6 screws M20x110
for the connecting rod
X = 594 mm
WLL: 4300 kg
WCH03835
X
94338 1 Piston ring tensioning device
X = 550mm
Y = 303 mm
WCH03481
Y
X
94340 4 Pre-tensioner
for piston rod foot fastening
X= ∅ 96 mm
WCH02594
X
94341 1 Piston suspension device
X = 760 mm
Y = 217 mm
Z = 300 mm
(WLL 15235 kg)
Mass approx. 116 kg
94341A 2 Distance plates
94341B 2 Distance pieces
94341C 1 Pin
WCH02272
94341B
94341A
X
94341C
Z
Y
Standard Tools
