Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
24/ 41

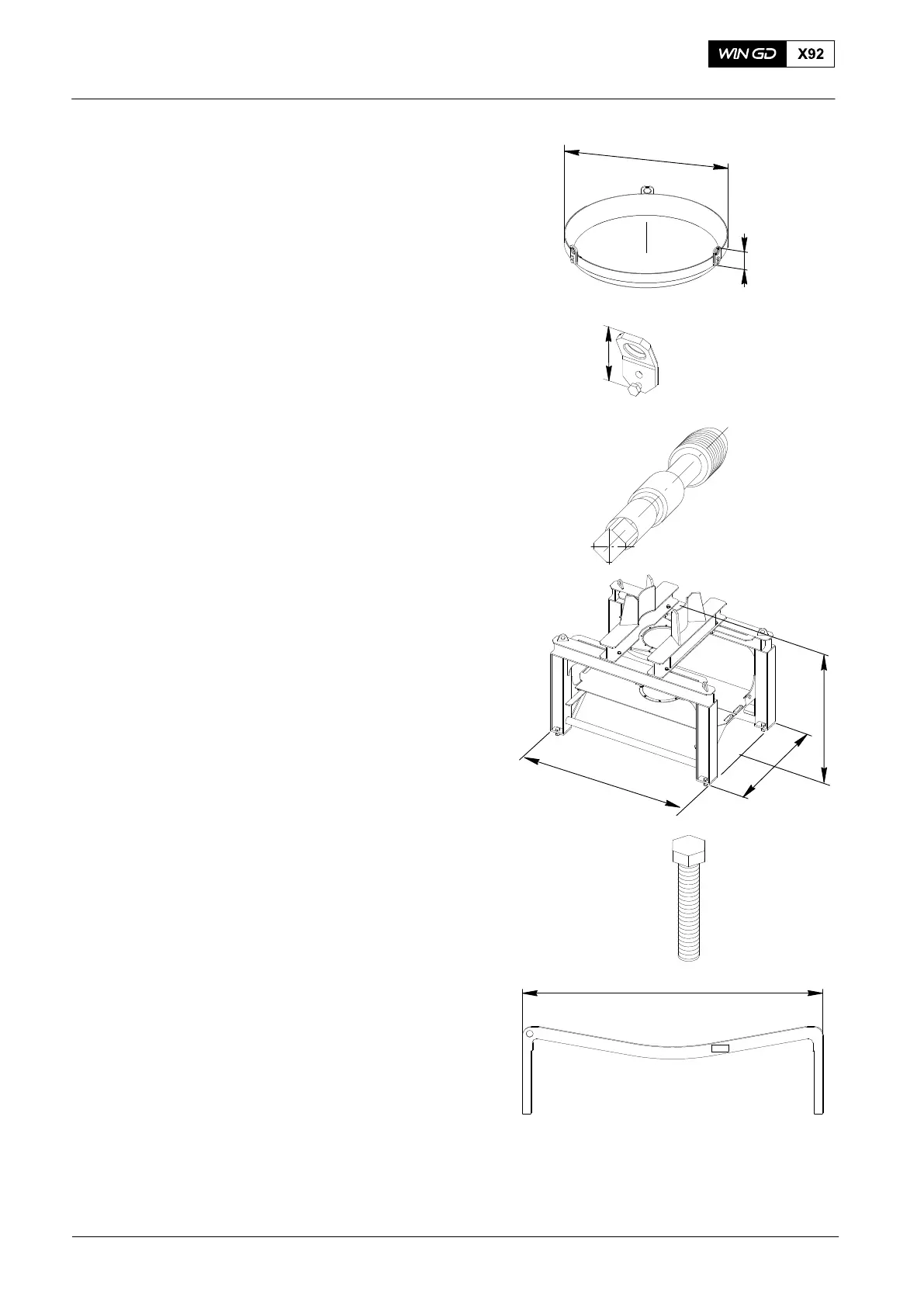

94342 1 Insertion funnel
for fitting a piston
X = 1053 mm
Y = 226 mm
Mass approx. 125 kg
X
Y
WCH02272
94342A 1 Dismantling and assembling tool
for fitting a piston
X = 126 mm
Mass approx. 2.54 kg
X
WCH02839
94348 1 Tap M27
for cleaning carbon deposits in
threaded holes of piston crown
000.398/93
94350 1 Piston support device
for supporting piston and removal of
piston rod gland
X = 1130 mm
Y = 1351 mm
Z = 1580 mm
Mass approx. 476 kg
X
016.797/08
Y
Z
94364A
94364B
3
3
Jacking screws
for separating of piston head
M16x280
Jacking screws
for separating of the spraying plate
M16x100
017.028/08
94366 1 Template
for shape of top of piston head
(piston removed)
X = 988 mm
X
WCH02678
Standard Tools
2015
