WinGD X92 - Page 557

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
25/ 41
94410
94410A
6,
or
9
6,
or
3

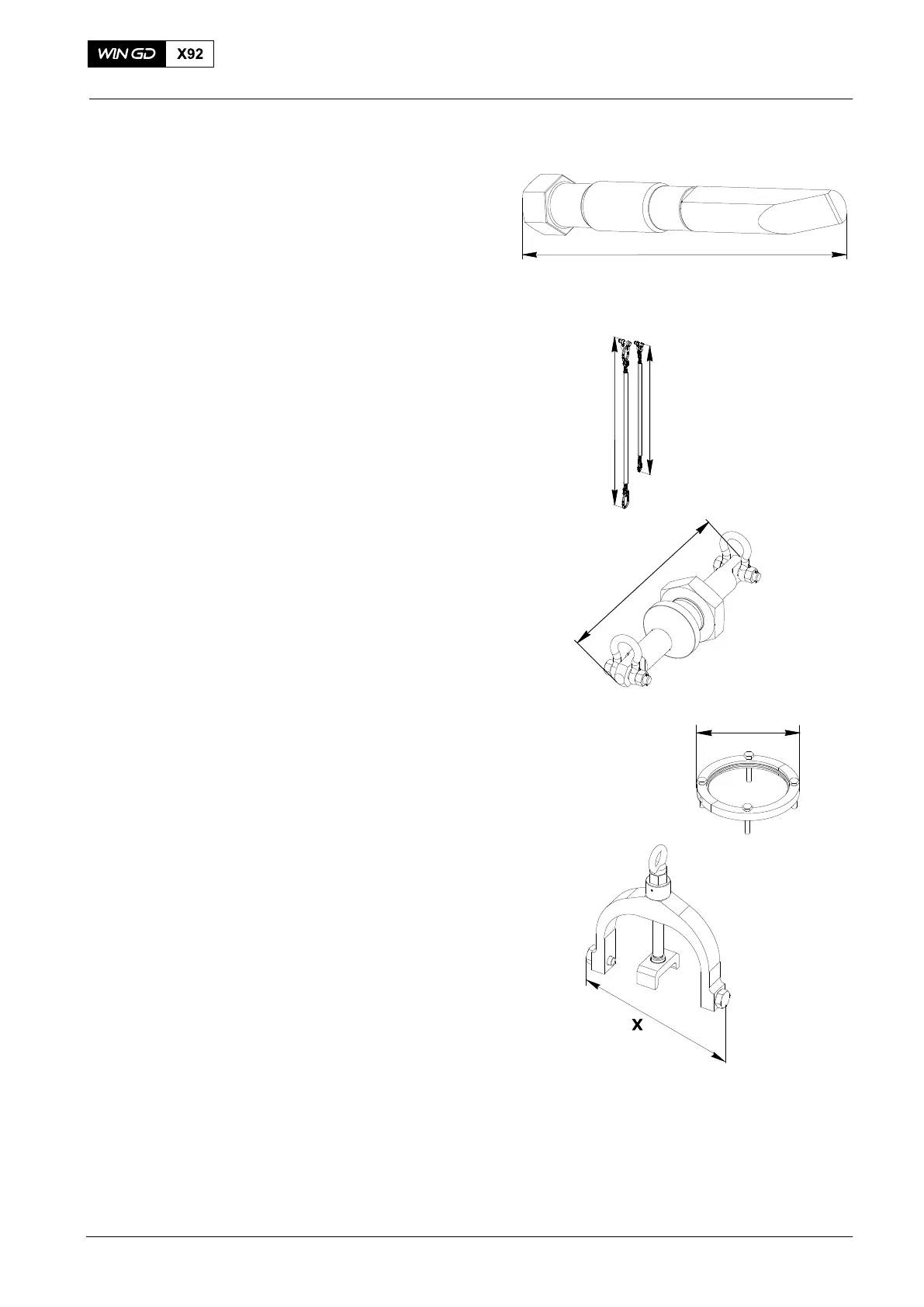

Adjusting devices (qty 6 for 2−part,
qty 9 for 1−part)
for alignment of intermediate wheel
X = 230 mm
Adjusting devices (qty 6 for 2−part,
qty 3 for 1−part)
for alignment of intermediate wheel
X = 405 mm
WCH02276
X
94411A
94411B
2
2
Chain
For lifting intermediate wheel
supply unit
X = 2482 mm
Chain
For lifting intermediate wheel
supply unit
X =2083 mm
X
X
94412 1 Lifting tool
for intermediate gear wheel
X = 510mm
WCH02281
X
94550 1 Clamping ring 2-parts
X= ∅ 210 mm
WCH02281
X
94551 1 Fitting and dismantling device
for removal and fitting of guide pin to
fuel pump
X = 334 mm
WCH02281
Standard Tools
2017−11
