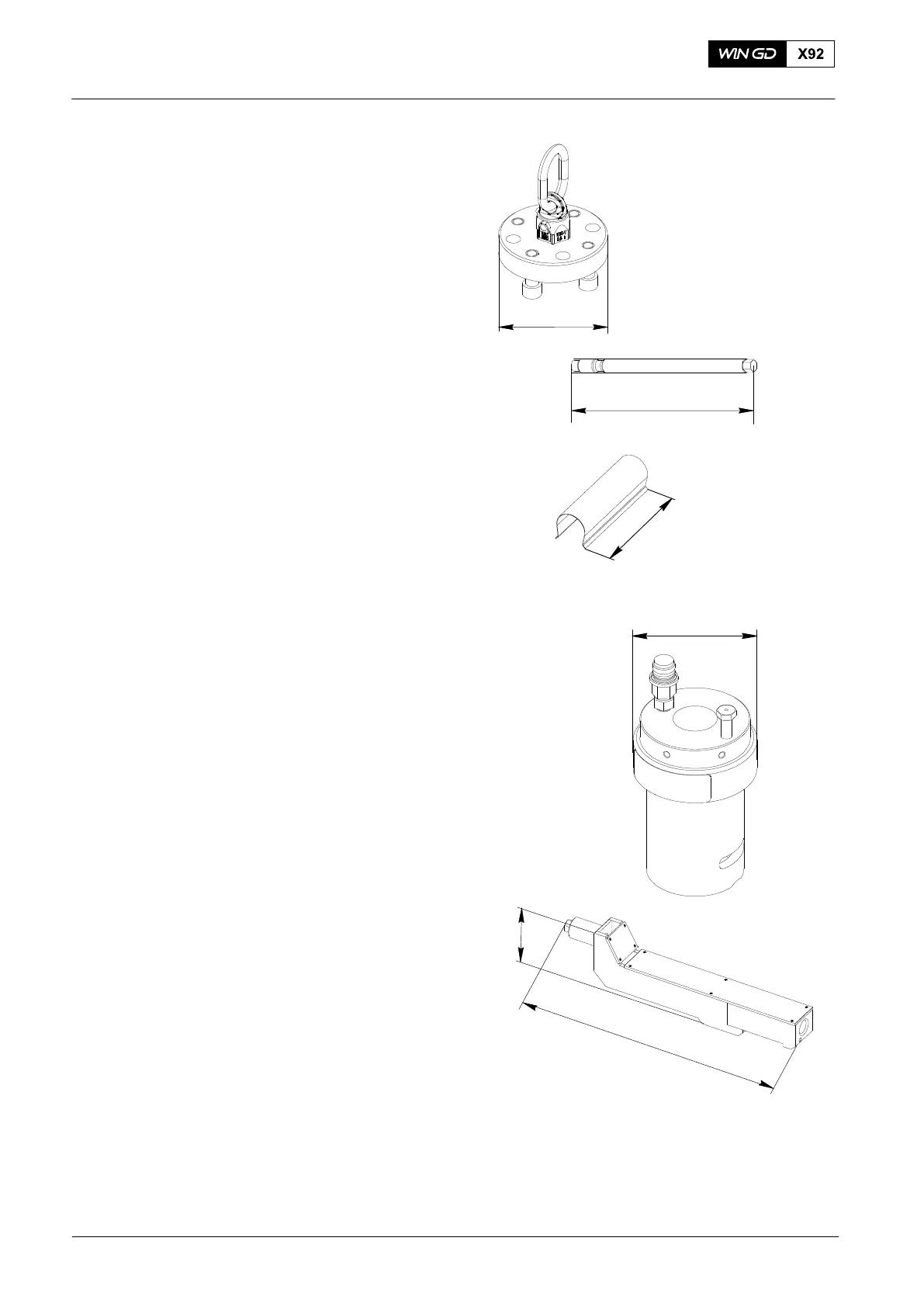

94552 1 Lifting tool
with head screws M14x40
for removal and fitting of a fuel pump
X= ∅ 120 mm
(WLL 600 kg)
WCH03064
X
94553 1 Rod
Guide rod to fuel pump
X = 470 mm
WCH02281
X
94555 2 Distance piece
to fuel pump
X = 95 mm
6 Cyl. 4 piece
7 and 8 Cyl.6 pieces
9 to 12 cyl. 8 pieces
WCH02281
X
94557 2 Pre-tensioning jacks
for elastic bolts to camshaft bearing
X= ∅ 112 mm
X
016.863/08
94566 Support
for camshaft assembly,
including clamping nut
X = 925 mm
Y1 = 180 mm
Mass approx. 22.4 kg
6 Cyl. 1 piece
7 and 8 Cyl. 3 pieces
9 to 12 cyl. 5 pieces
Y1
X
016.788/08
