WinGD X92 - Page 563

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
31/ 41

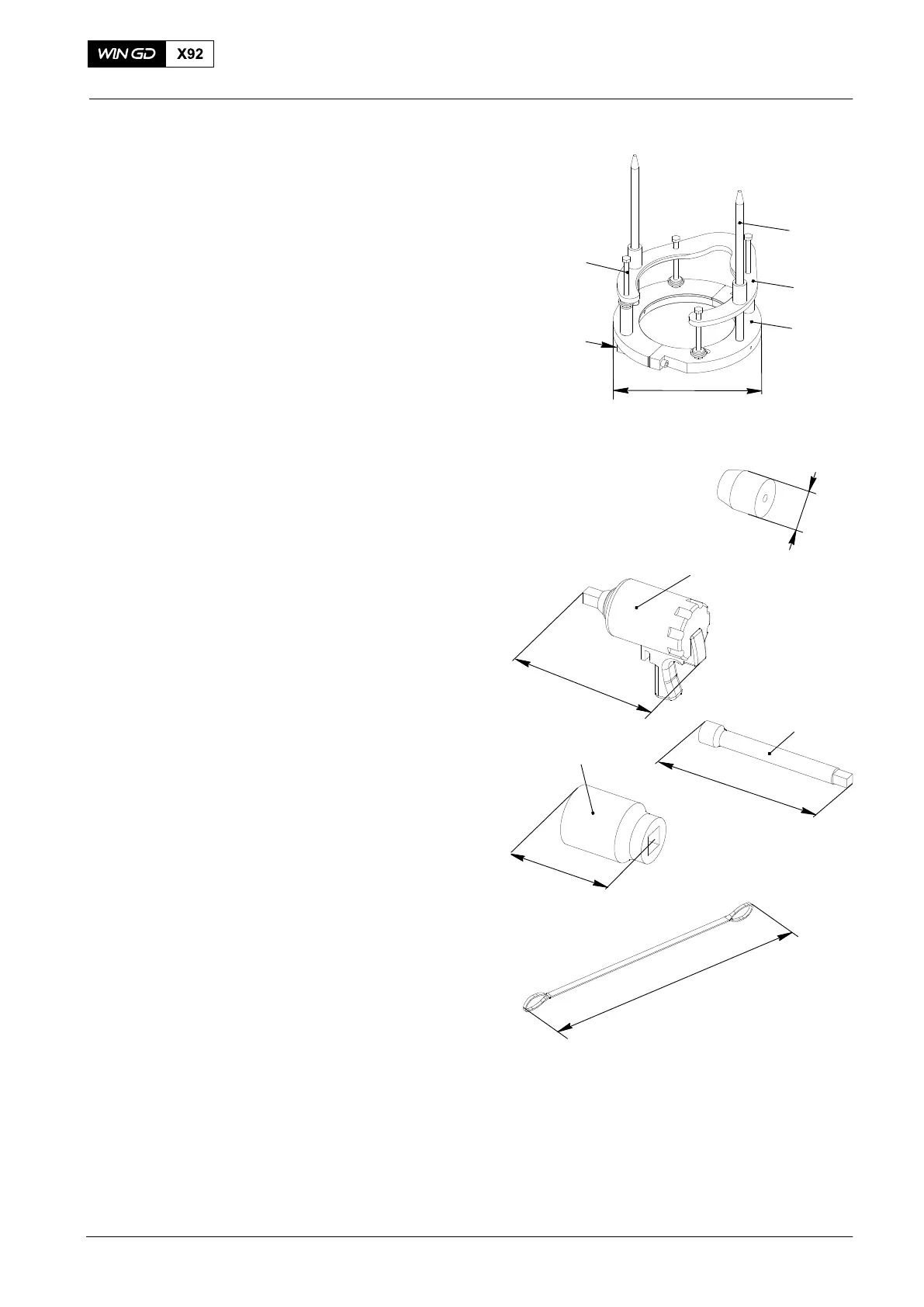

94593 1 Guide bracket
for Pre-tensioning device
X= ∅ 370 mm
Mass approx. 23.5 kg
94593A 1 Ring
94593B 1 Ring (2-part)
94593C 2 Guide rods
94593D 4 Screws M12x130 with
special nuts
94593E 2 Screws M30x110
X
WCH02281
94593A
94593C
94593D
94593B
94593E
94597 1 Mandrel
for fitting seal into lower spring carrier
and lower housing of fuel pump
X= ∅ 70 mm
X
WCH02281
94598
94598A
94598B
1
2
1
Pneum. impact wrench
for loosening and tightening fuel pump
on fuel pump unit
X = 271 mm
Extensions
X = 400 mm
Socket wrench insert
X = 100 mm
X
X
X
94598
94598A
94598B
94650 2 Round sling
X = 2400 mm
WCH02379
X
Standard Tools
2015
