WinGD X92 - Page 562

Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
30/ 41

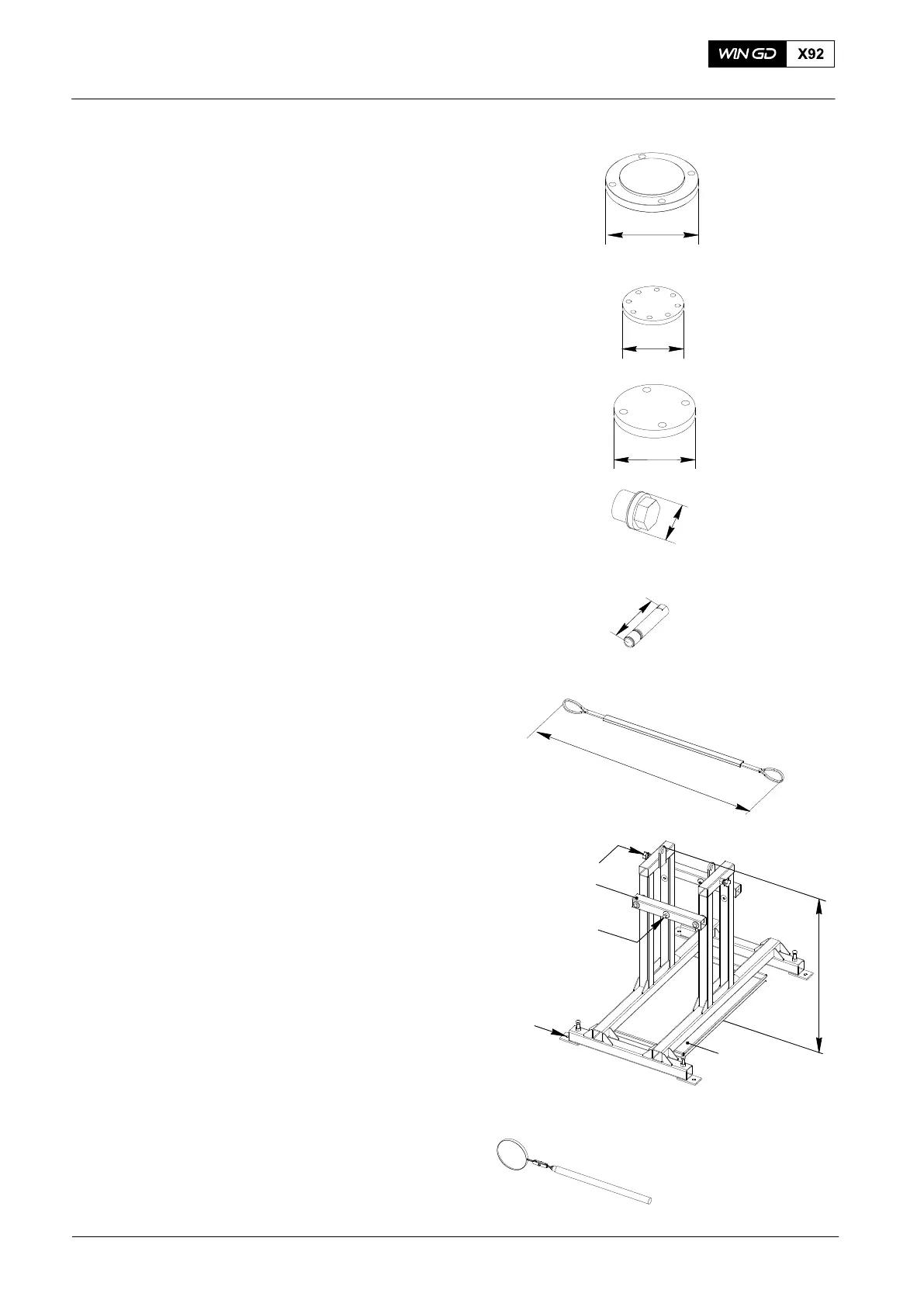

94570A Blind flange
X = 320 mm
6 Cyl. 1 piece
7 to 12 Cyl.2 pieces
X
WCH02847
94570B 1 Blind flange
8 holes
X = 210 mm
X
WCH02848
94570C Blind flange
X = 140 mm
6 Cyl. 1 piece
7 to 12 Cyl. 2 pieces
X
WCH02849
94570D Screw plug
X = 26 mm
94570E 1 Gasket for 94570D
X
WCH02850
94570F Sealing plug
X = 238 mm
6 Cyl. 1 piece
7 to 12 Cyl.2 pieces
X
WCH02851
94571 Round sling
X = 1750 mm
94571A 1 Protection sleeve
For round sling
X
WCH02852
94592 1 Fuel pump rack
for fuel pump
X = 1039 mm
Mass approx. 86.6 kg
consisting of:
94592A 1 Oil trough
94592B 2 Limiter
with 4 screws M12x100
and washers
94592C 2 Screws M20
94592D 4 Screws (M16x60)
94592E 2 Screws (M12x90)
WCH02281
94592A
94592E
94592B
94592C
94592D
X
94592M 1 Mirror
WCH02596
Standard Tools
