Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
39/ 41

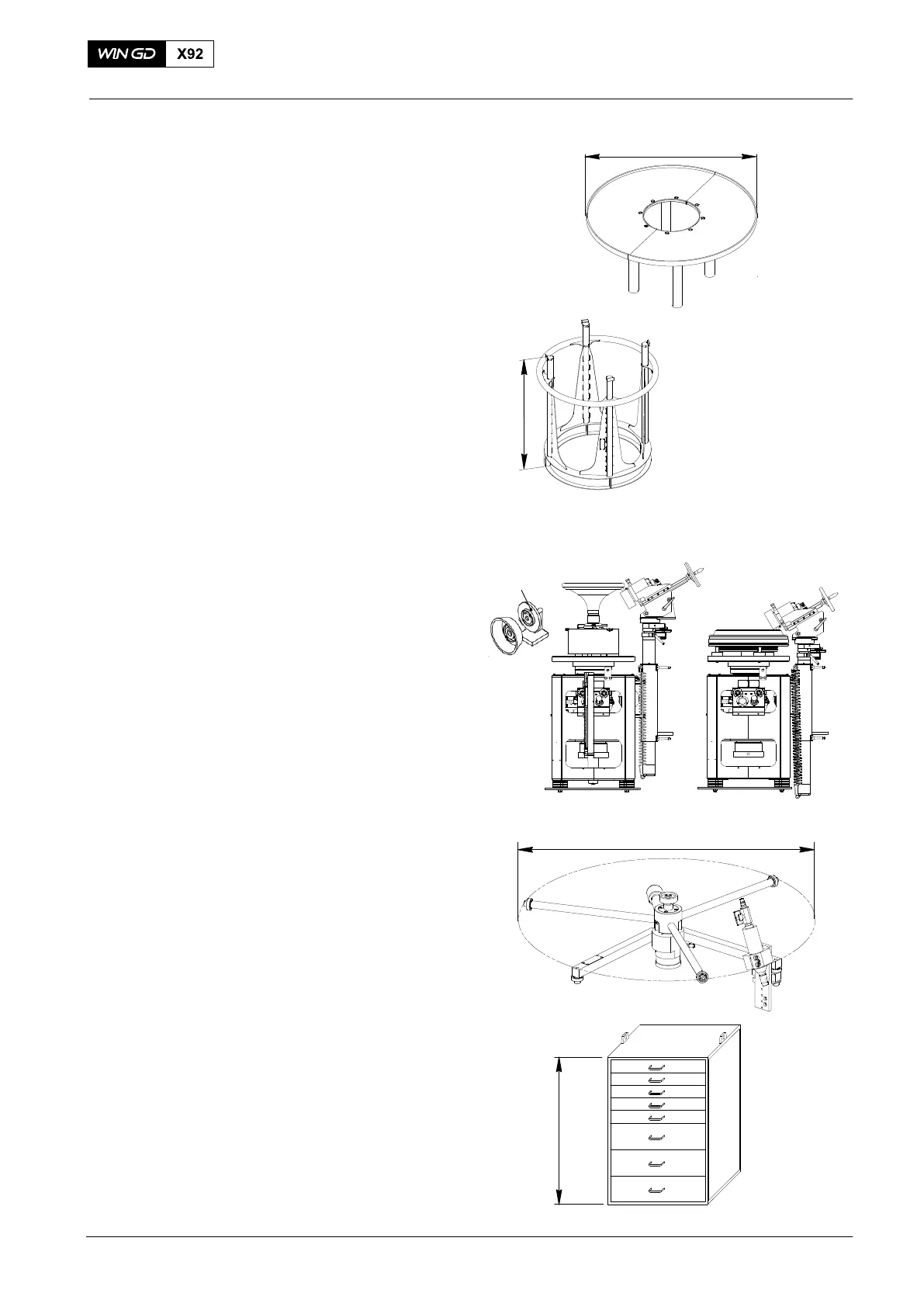

94234 1 Platform
for piston rod gland removal inside the
engine
X= ∅ 962mm
Mass approx. 43.6 kg
X
WCH02382
94266 1 Cylinder cover support
X = 2074 mm
X
WCH03106
94291
94291A
1
2
Valve grinding device complete
for valve spindle and valve seat
Grinding discs
(C-M No. 11373-01-01)
WCH03339
WCH03339
94291A
94299 1 Grinding device
X = ∅ 1073 mm
X
WCH02384
94300 1 Tool cupboard
X = 1000 mm
X
001.412/96
Standard Tools
2015
