GENERAL
B2420, WSM
G-41
• The following special tools are not provided, so make them referring to the figure.
WSM000001GEG0026US0

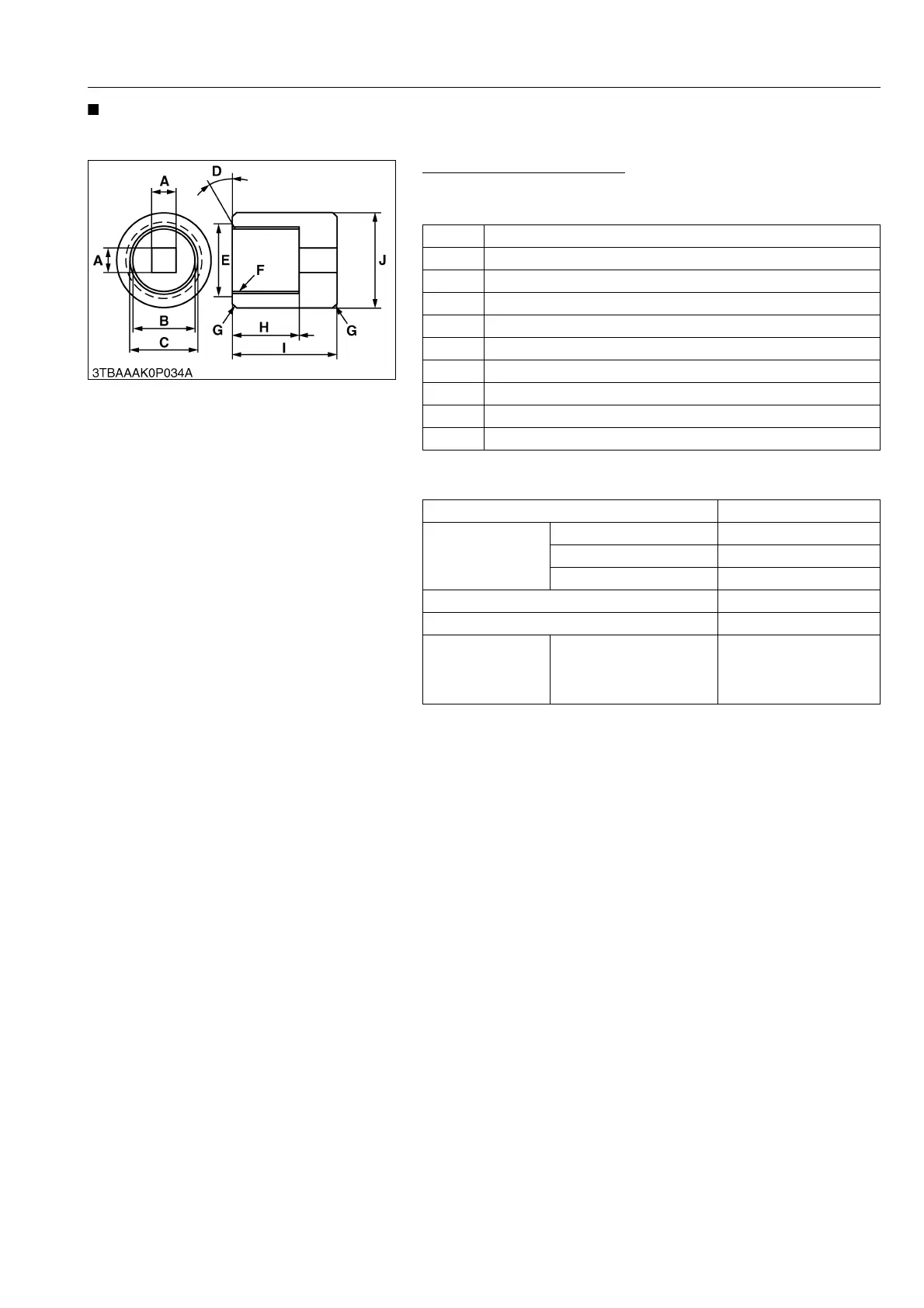

Bevel Gear Shaft (10T) Tool
Application
• Use for measuring and tightening the bevel gear shaft.
(Involute Spline)
• INTERNAL 20 x 14 x 1.25
(Reference)
• This tool can be made by welding the coupling (6C050-14520)
and socket wrench.
9Y1210436GEG0019US0
A 6.4 to 6.6 mm square (0.25 to 0.26 in. square)
B 17.5 mm dia. (0.689 in. dia.)
C 20 mm dia. (0.79 in. dia.)
D 0.52 rad (30 °)
E 21 mm dia. (0.83 in. dia.)
F Involute spline (refer to below)
G Chamfer 1.0 mm (0.039 in.)
H 25 mm (0.98 in.)
I 35 mm dia. (1.4 in. dia.)
J 28 mm dia. (1.1 in. dia.)
Coefficient of profile shifting +0.800
Tool
Tooth form Stub tooth
Module 1.250
Pressure angle 0.35 rad (20 °)
Number of teeth 14
Diameter of basic pitch circle 17.5 mm (0.689 in.)
Tooth thickness Between pin diameter
15.084 to 15.155 mm
(0.59386 to 0.59665 in.)
(Pin diameter = 2.50 mm
(0.0984 in.))
