Xerox ColorQube 9303 Series Service Manual

February 2013
4-315
ColorQube® 9303 Family
REP 89.1
Repairs/Adjustments
3. Remove the registration transport, Figure 1.

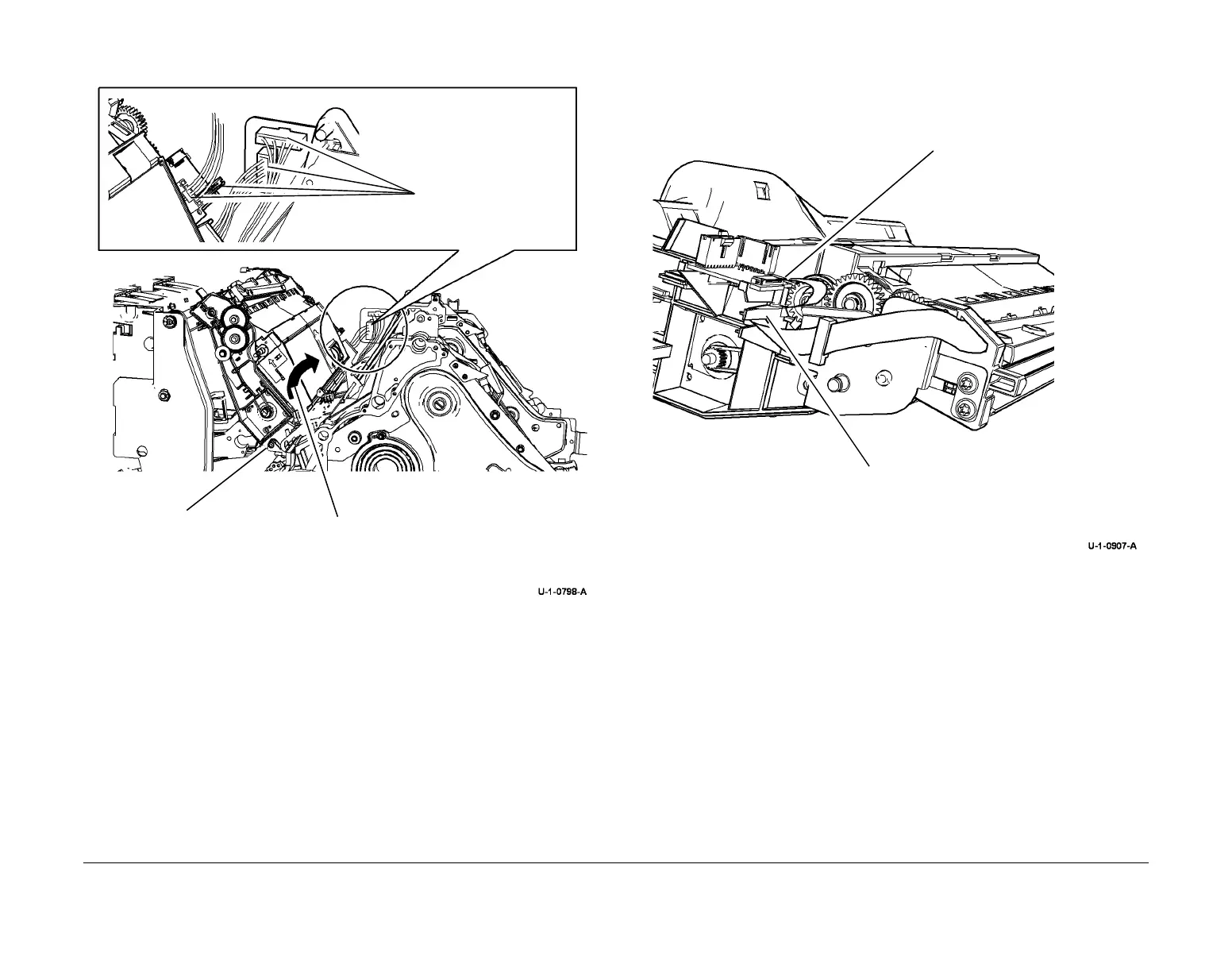

Figure 1 Registration transport removal
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure the ribbon cable is routed and connected before installation, Figure 2.
Figure 2 Location of the ribbon cable
2
Remove the screw.
3
Rotate and lift out the Registration
transport assembly.
1
Disconnect 4 harnesses
1
Ribbon cable connected correctly.
2
Ribbon cable routed correctly.
