February 2013
4-366
ColorQube® 9303 Family
REP 91.28
Repairs/Adjustments

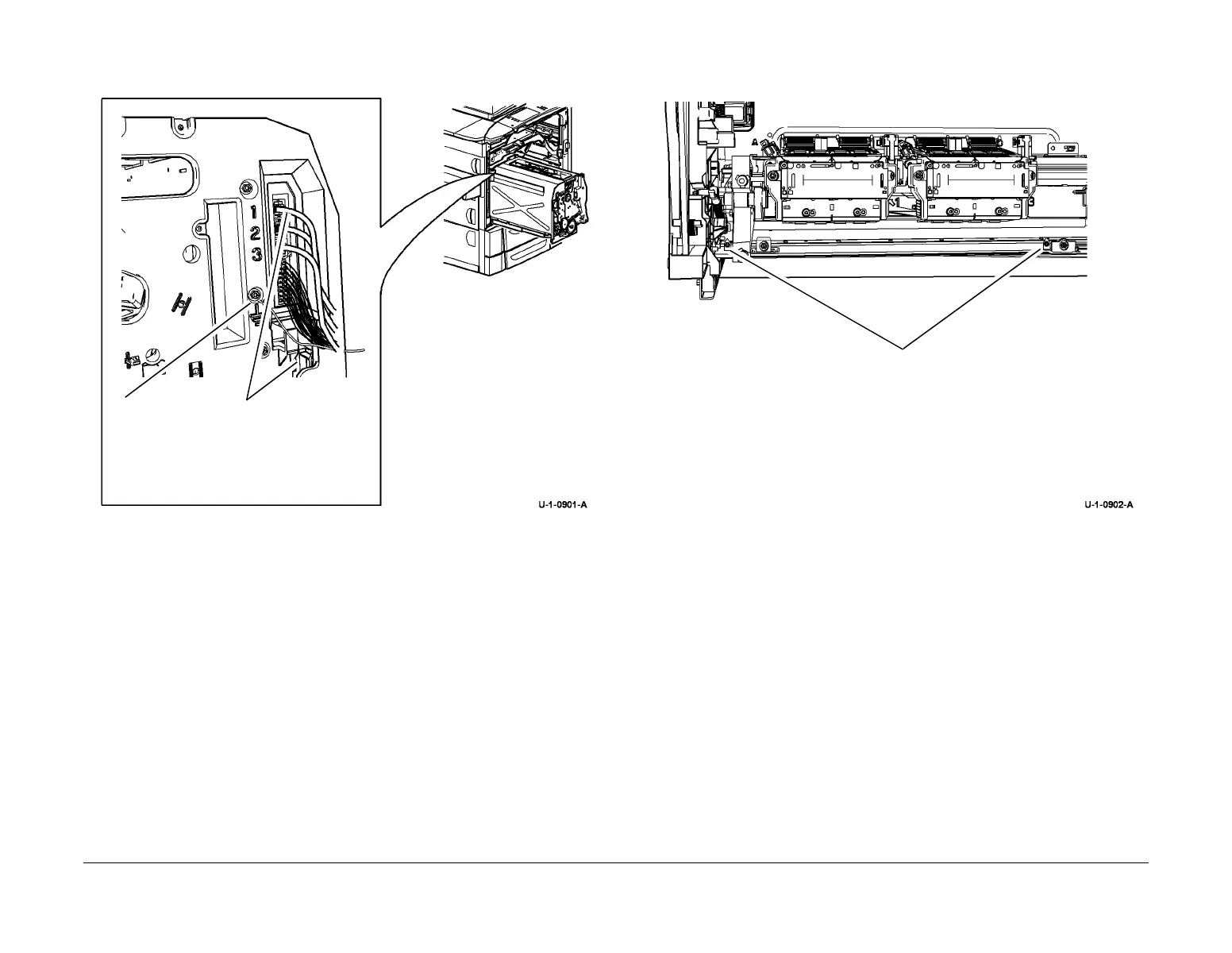

4. Disconnect the harnesses and ground lead to the rear of the marking unit, Figure 1.
Figure 1 Disconnect harnesses
5. Remove the right marking unit securing screws, Figure 2.
Figure 2 Remove screws
2
Remove the ground
lead.
1
Disconnect 5 harnesses.
1
Remove 2 screws.
