Xerox ColorQube 9303 Series Service Manual

February 2013
4-369
ColorQube® 9303 Family
REP 91.29
Repairs/Adjustments
4. Type A printhead only. Release the cable clips from the relevant flex cables, Figure 1.

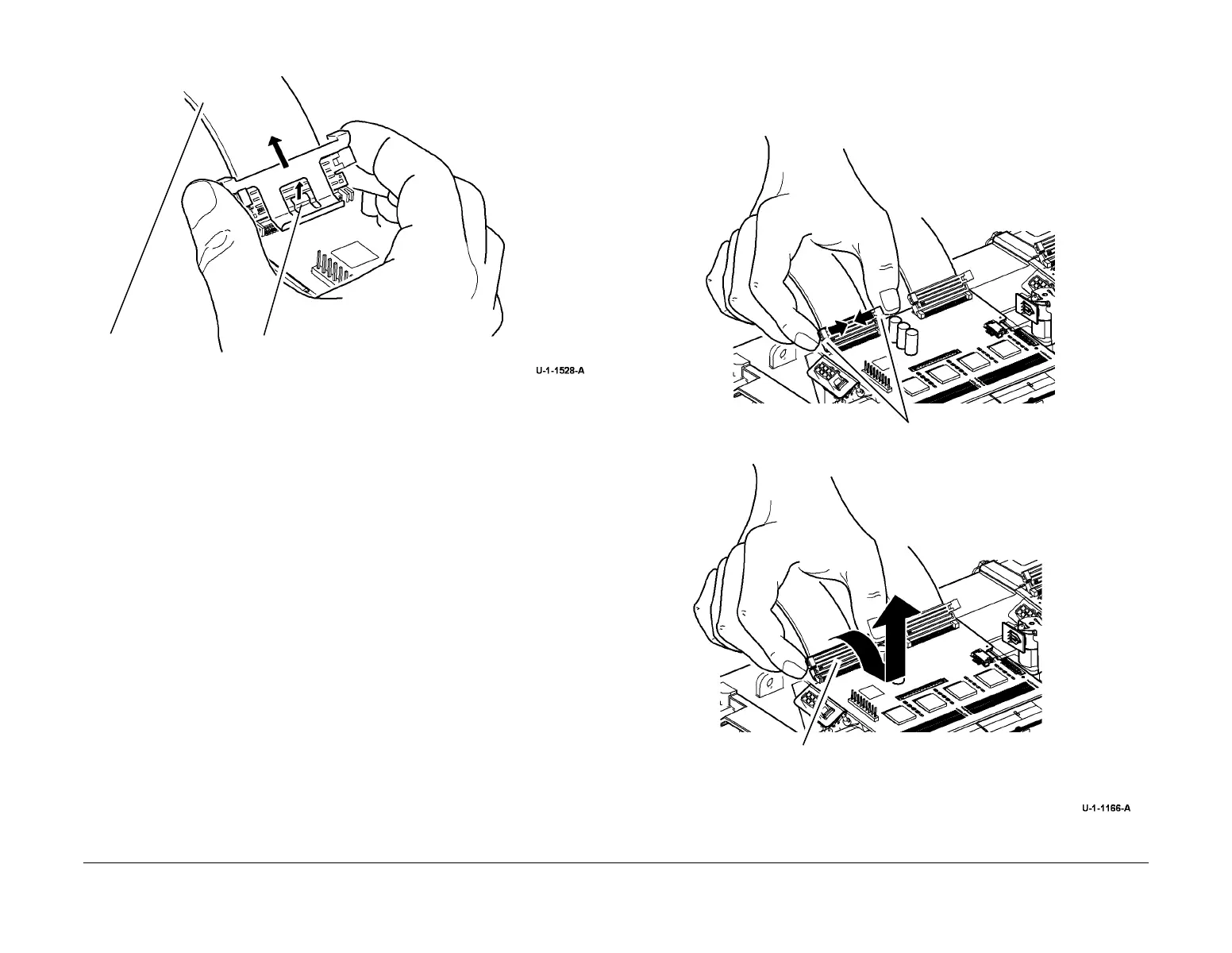

Figure 1 Clip removal (type A)
5. Type A printheads only. Disconnect the flex cables, Figure 2.
Figure 2 Cable disconnection (type A)
Release the fixing tab, then slide the clip
up and along the flex cable.
Flex cable
1
Release clips.
2
Rotate forward then lift to disconnect
flex cable.
