February 2013
4-370
ColorQube® 9303 Family
REP 91.29
Repairs/Adjustments
6. Type B printheads only. Disconnect the flex cables, Figure 3.

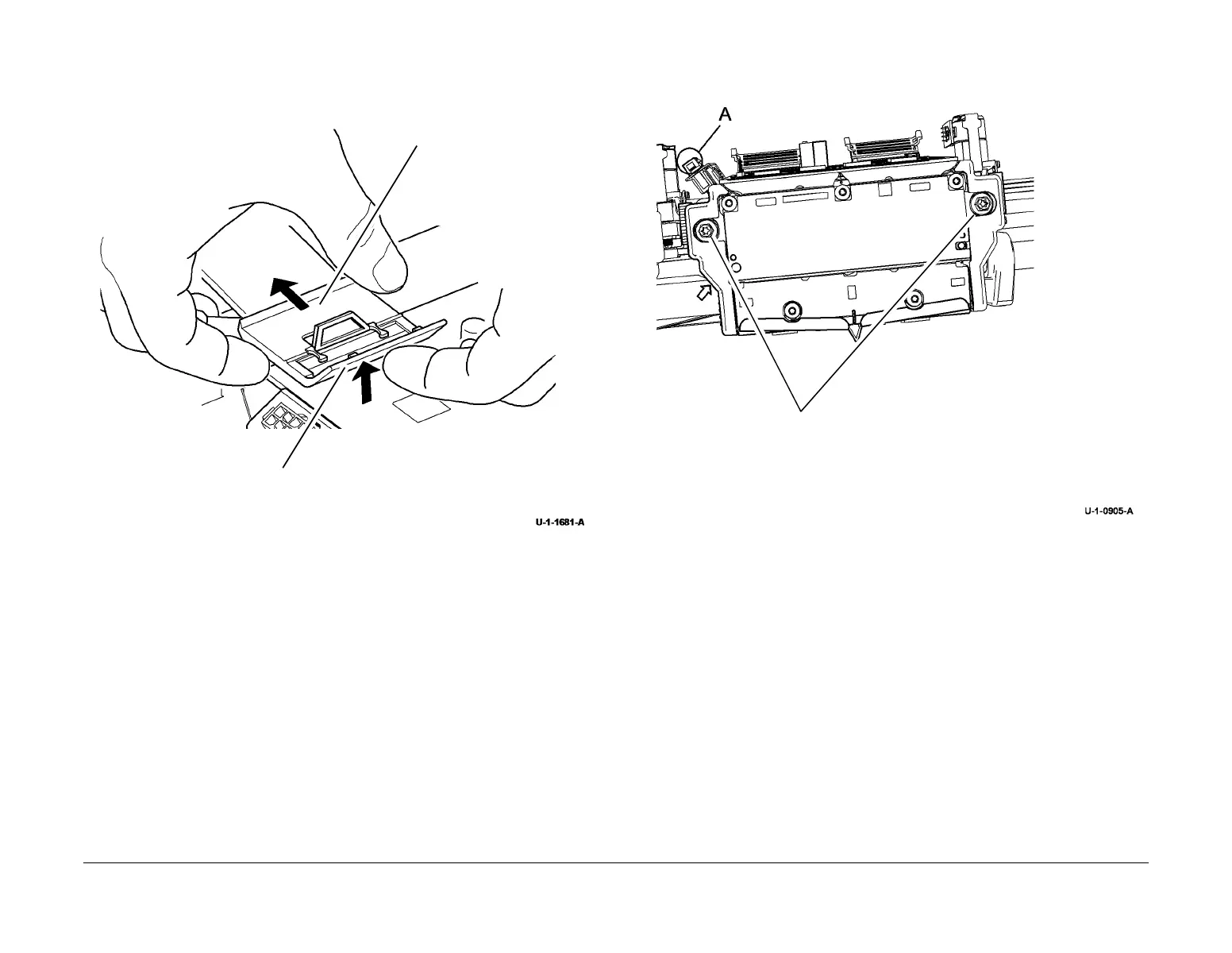

Figure 3 Cable disconnection (type B)
7. Remove the printhead, Figure 4.
NOTE: Hooks on the printhead will prevent it from falling after the screws are loosened.
Figure 4 Printhead removal
8. Set the printhead down on a level surface.
1
Carefully raise the latch.
2
Disconnect the flex cable.
1
Disconnect the harness marked A.
2
Support the printhead by the black
insulation and undo the 2 screws.
Undo each screw a little at a time
until the printhead becomes free.
