ADJ 12.6-171
Repairs/Adjustments
7. Figure 2, check the alignment of the sheet against the scale.

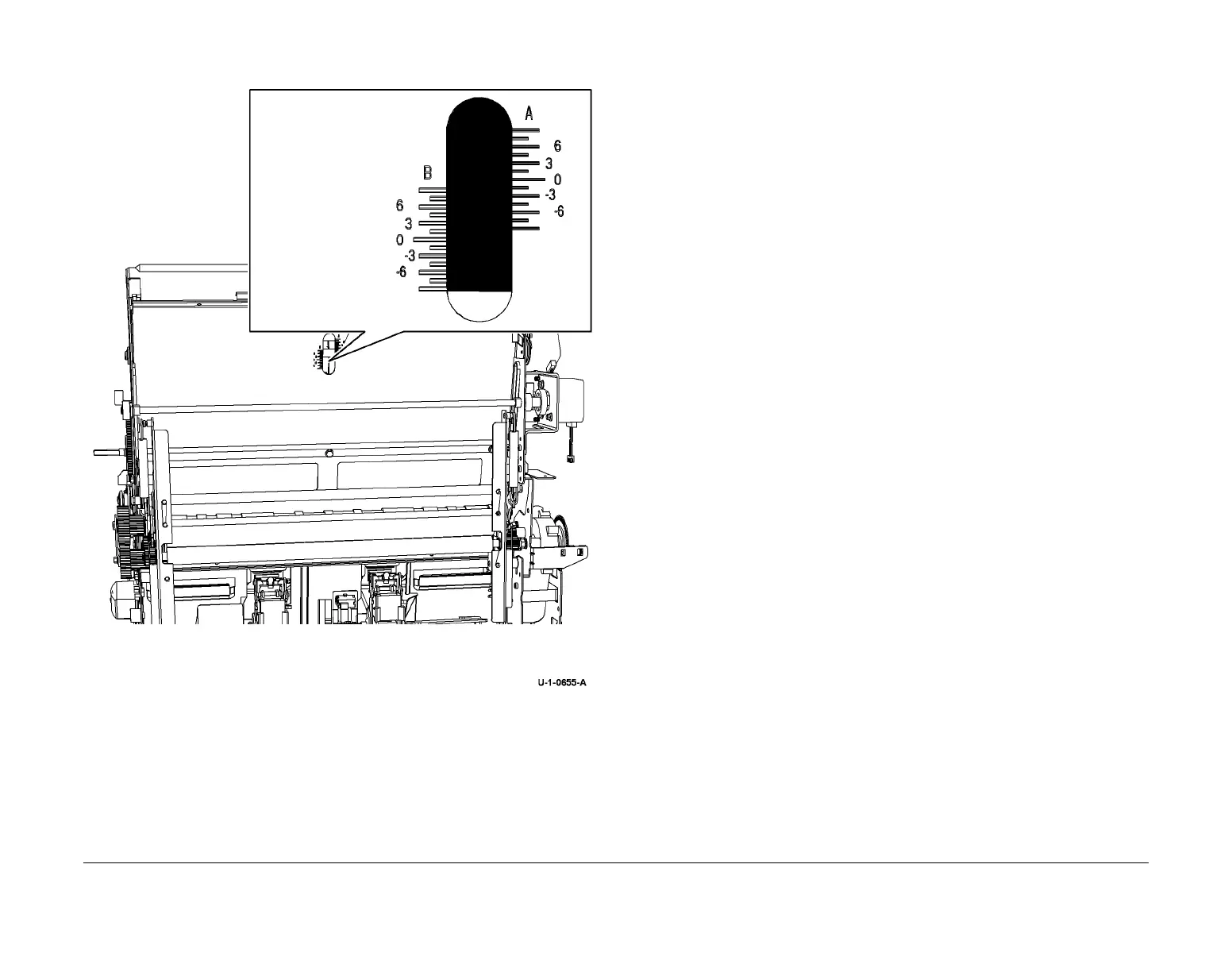

Figure 2 Top edge alignment
8. If the sheet is correctly aligned, do the following:
a. Enter Service Mode GP 1.
b. Select Adjustment Routines.
c. Select dC131 NVM Read / Write.
d. Enter NVMID 12-003 BookMkrCompileOff-set.
e. Select Read / Write and decrease the value by 80, this will return the NVM value to
the original setting.
f. Select Save, select OK, select Close, select Exit.
g. Re-install the BM right hand cover, if removed in step 5.
9. If the sheet is not correctly aligned, perform the adjustment.
Adjustment
1. Do the following
a. Enter Service Routine GP 1.
b. Select Adjustment Routines.
c. Select dC131 NVM Read / Write.
d. Enter NVMID 12-003 BookMkrCompileOff-set.
e. Select Read/Write and enter the new value to correct the error found during the
check. Increasing the value will raise the sheet. Decreasing the value will lower the
sheet. One step = 0.1137 mm.
f. Select Save, select OK, select Close, select Exit.
2. Repeat the Check to ensure the compiling position is correctly set.
3. Do the following:
a. Enter Service Mode GP 1.
b. Select Adjustment Routines.
c. Select dC131 NVM Read / Write.
d. Enter NVMID 12-003 BookMkrCompileOff-set.
e. Select Read / Write and decrease the value by 80.
f. Select Save, select OK, select Close, select Exit.
g. Re-install the BM right hand cover, if removed in step 5.
4. When the compiling position is correct, switch the machine off then on, GP 14.
Top of sheet must align
with the bottom mark
on the B scale.
To Next Page
