Xerox ColorQube 9303 Series Service Manual

February 2013
6-22
ColorQube® 9303 Family
GP 6
General Procedures/Information
Figure 8 Links released from lower carriage
6. Lift the lower carriage support dowels over the stops to lower the carriage into the service
position, Figure 9.

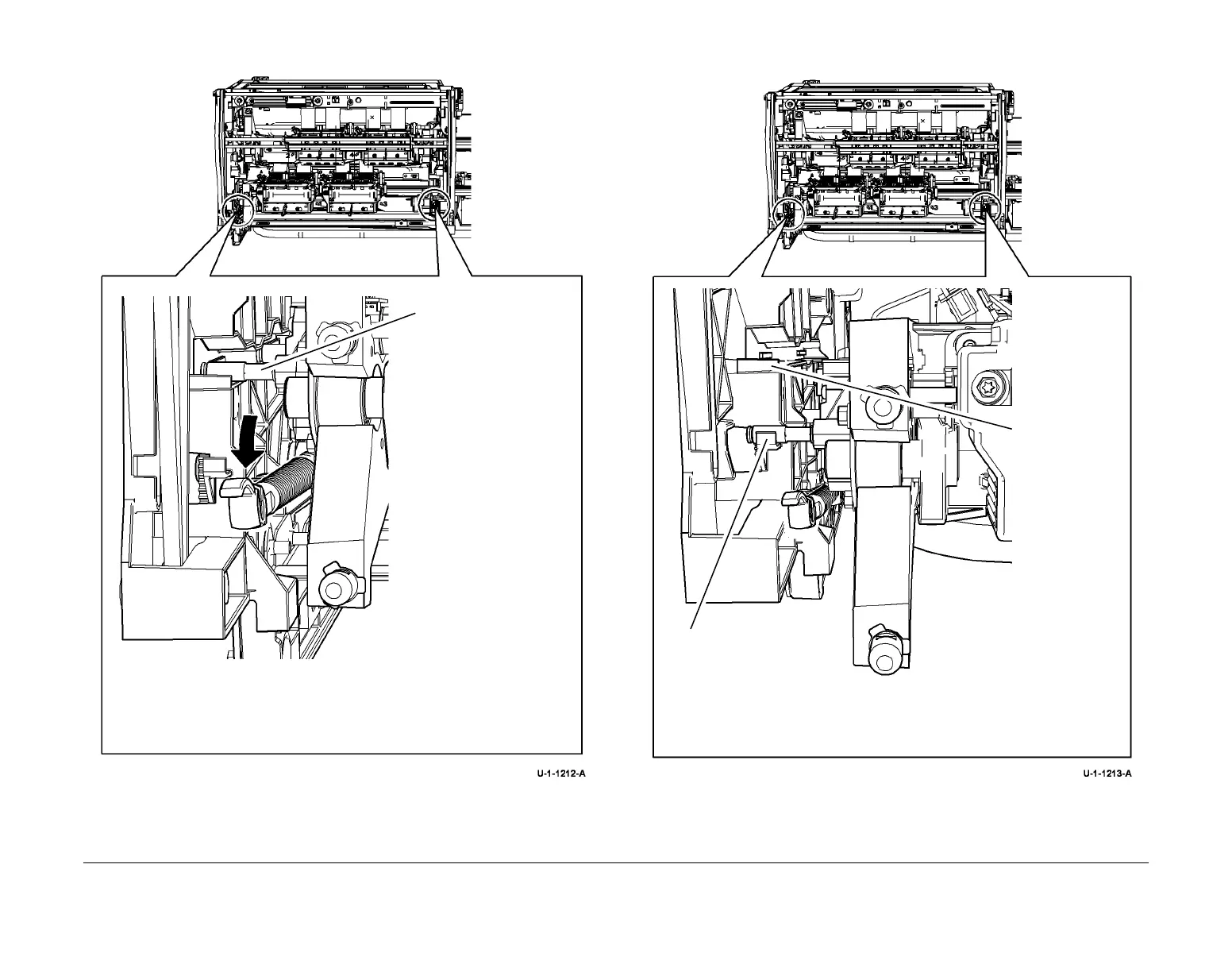

Figure 9 Lower carriage in service position
1
Release the lower front
compliant link from the
support dowel.
2
Release the lower rear
compliant link from the
support dowel on the other
side.
1
Lift the lower printhead car-
riage over the stops so that
the dowels rest in the lower
supports
End stop
