February 2013
6-21
ColorQube® 9303 Family
GP 6
General Procedures/Information

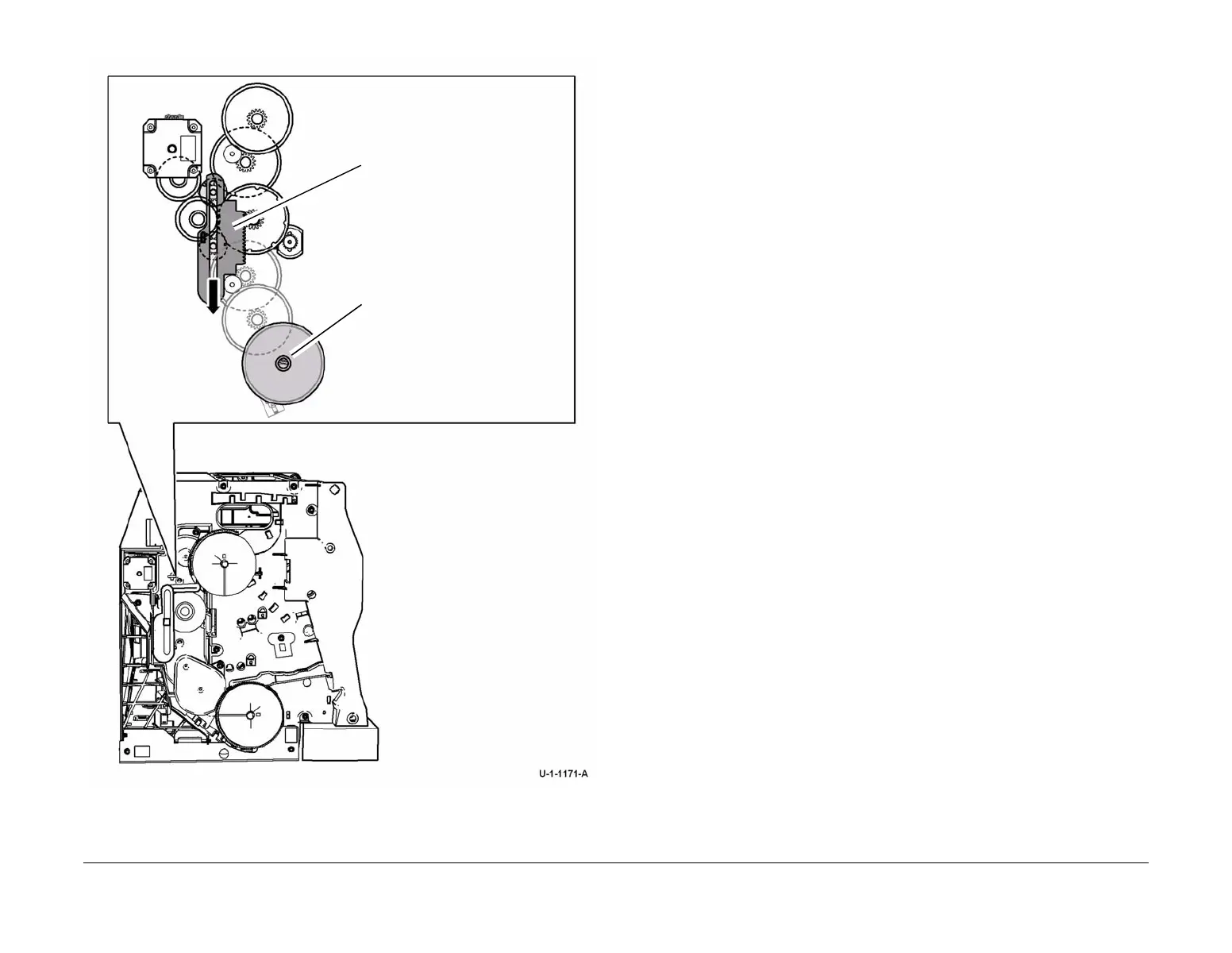

Figure 7 How to dock the lower carriage
Move the HM Wiper Blade
1. Move the marking unit into the service position.
2. Rotate the upper drive shaft, PL 91.15 Item 7, so that the HM wiper blade moves to the
required position.
Move the Lower Printhead Carriage into the Maintenance Position
1. Move the marking unit into the service position.
2. Move the HM wiper to the top of its travel.
3. Move the lower printhead carriage into the docked position.
4. Release the lower front compliant link (PL 91.10 Item 7) from the lower carriage assembly
(PL 91.25 Item 1), Figure 8.
5. Release the lower rear compliant link (PL 91.10 Item 5) from the lower carriage assembly
(PL 91.25 Item 1), Figure 8.
2
Rotate the lower carriage drive gear
clockwise to move the lower carriage
to the docked position.
1
Move the gear selector to the
bottom of the slot to select the
lower gears.
To Next Page
