February 2013
6-33
ColorQube® 9303 Family
GP 7
General Procedures/Information

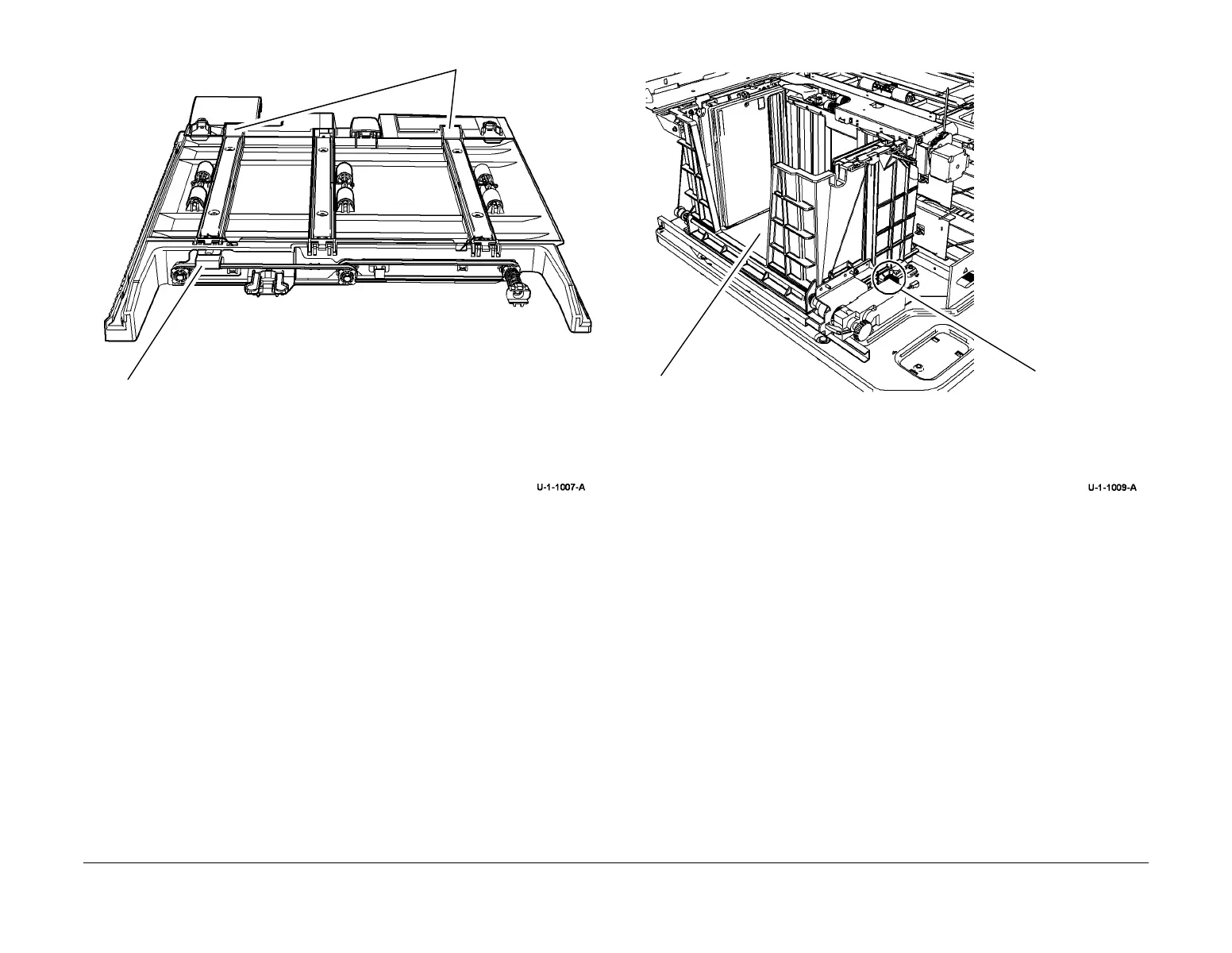

Figure 20 Tray 3 horizontal transport
• Figure 21, tray 3 ground connections. Check for continuity of less than 10 Ohms between
the tray lift plate and the tray base. To improve continuity, disconnect the ground termi
-
nals, clean the contact faces and re-assemble.
Figure 21 Tray 3 ground connections
Ground contacts
Ground contact pad
Tray 3 ground
contact pad
Tray 3 lift plate ground
connection
