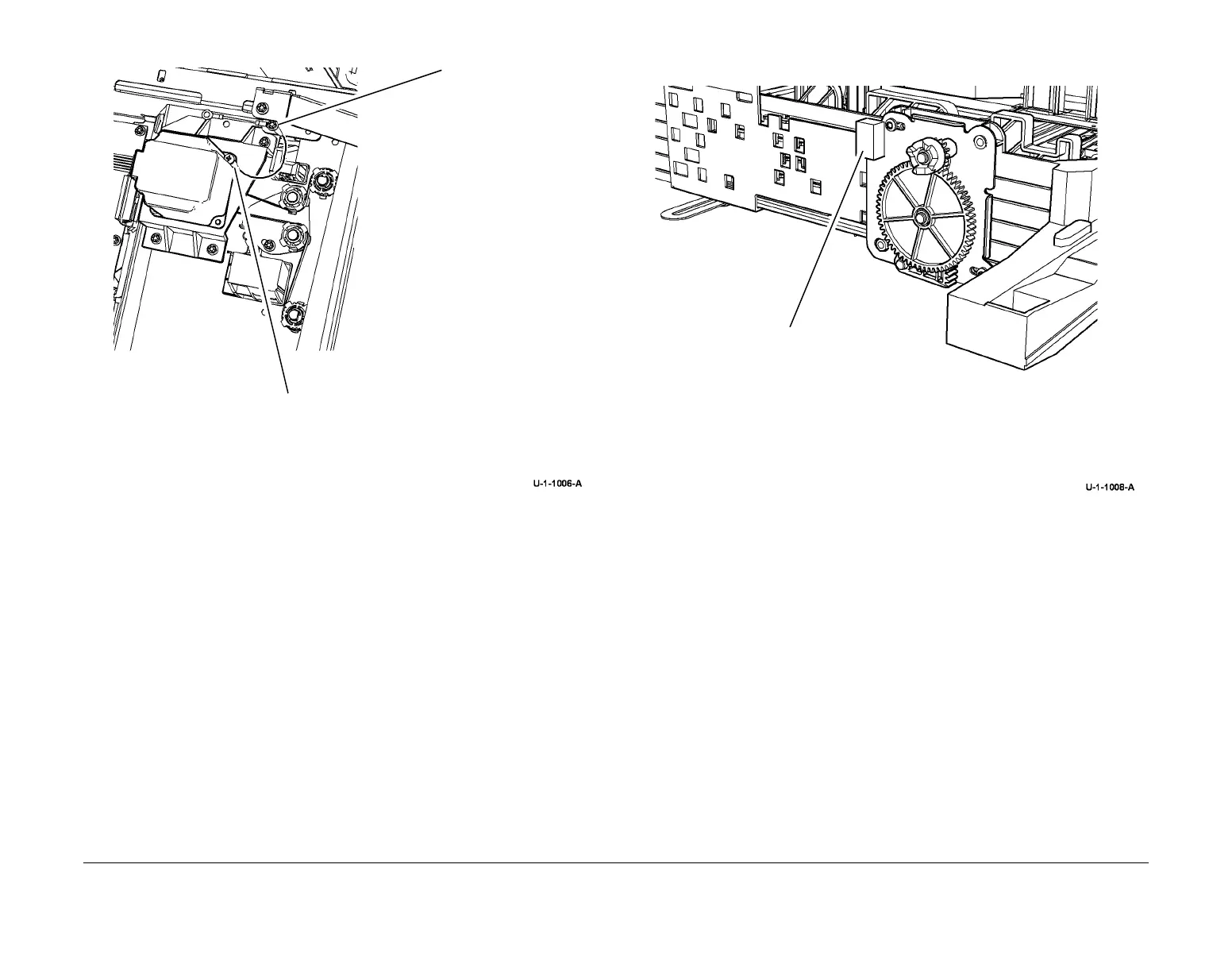

Figure 18 3TM motor
• Figure 19, tray 1 and 2 ground contact pad. To improve continuity, remove the tray and
clean the contact face. The tray must be elevated to check for continuity between the
metal tray and the ground pad. Check for continuity of less than 10 Ohm between the tray
and the ground pad.
Figure 19 Tray 1 and 2 ground
• Figure 20, tray 3 horizontal transport. To improve continuity, remove the transport and
clean the contact faces. Check for continuity of less than 10 Ohm between the paper
transport shafts and the main frame.
Frame ground
connection
3 tray motor ground
connection
Ground contact pad
