February 2013
6-31
ColorQube® 9303 Family
GP 7
General Procedures/Information

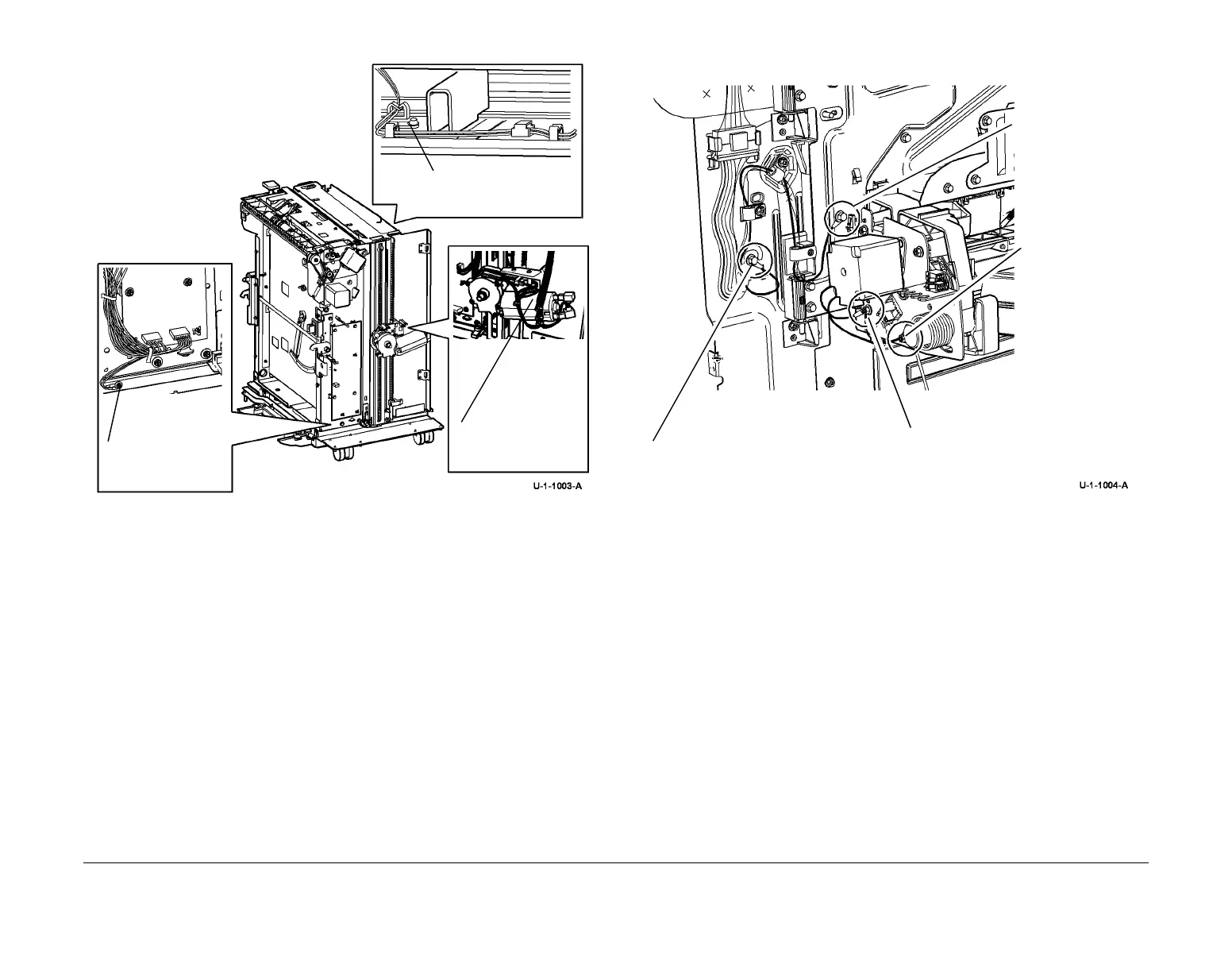

Figure 16 Tray 5 ground connections
Bypass Tray
• Figure 17, bypass tray ground connections. Check for continuity of less than 10 Ohm
between the bypass paper guide and the main frame ground connection. To improve con
-
tinuity, disconnect the ground terminals, clean the contact faces and re-assemble.
Figure 17 Bypass tray ground connections
3 Tray Module
• Figure 18, 3 tray module motor ground connection. Check for continuity of less than 10
Ohm between the motor case and the main frame. To improve continuity, disconnect the
ground terminals, clean the contact faces and re-assemble.
Ground connection
Ground connection
under the paper tray
In-line ground
connector
Frame ground connection
Ground connection
Paper guide ground
connection
Bypass internal ground connection. Follow
this wire and check the other end.
To Next Page
