February 2013
4-64
ColorQube® 9303 Family
REP 10.3
Repairs/Adjustments

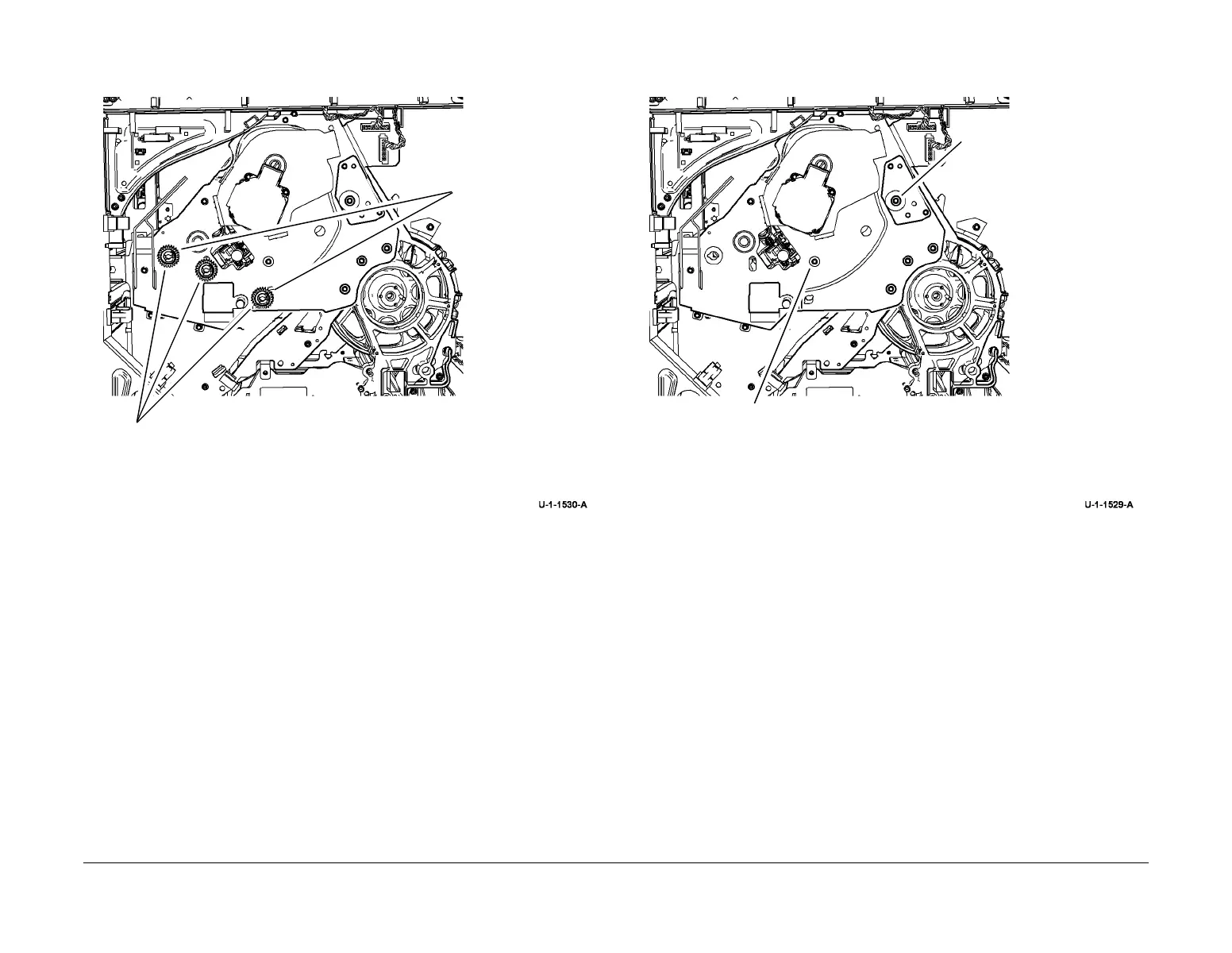

7. Remove 3 gears, Figure 3.
Figure 3 Gear removal
CAUTION
The bushes might remain in place after the screws are removed. Take care not to drop the
bushes when the rear outer frame is removed.
8. Remove 2 screws and 2 bushes, Figure 4.
Figure 4 Screw and bush removal
CAUTION
The rear compound gear can fall away from the rear plate when the rear outer frame is
removed. Take care not to drop the rear compound gear.
1
Remove 3 KL-clips and 3 gears
2
Remove 2 KL-clips and
2 bushes
1
Remove 1 long screw and 1 bush
3
Remove 1 long screw and 1
bush
To Next Page
