Xerox ColorQube 9303 Series Service Manual

February 2013
4-65
ColorQube® 9303 Family
REP 10.3
Repairs/Adjustments

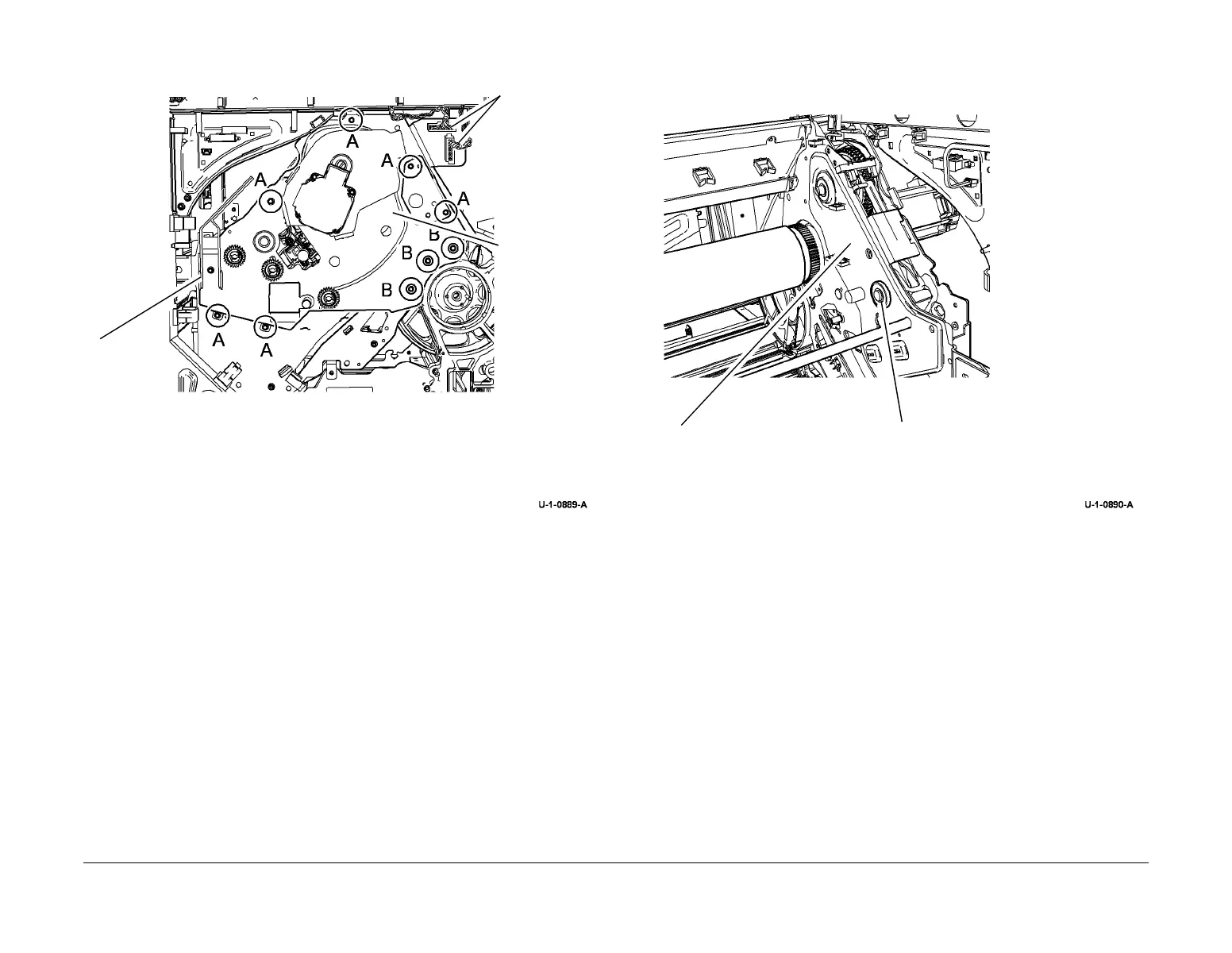

9. Remove the rear outer frame, Figure 5.
Figure 5 Rear outer frame removal
10. Prepare to remove the rear transfix linkage and gear, Figure 6.
Figure 6 Preparation
3
Remove 3 screws
marked B
2
Remove 6 screws marked A
1
Remove 1
screw to
remove the
lever mount
4
Remove the
rear outer
frame from the
machine. Take
care not to drop
the gear
5
Disconnect the
harnesses from
both sides of
the mount
1
Support the weight of the rear
transfix linkage and gear.
2
Push the bearing out.
