Xerox ColorQube 9303 Series Service Manual

February 2013
4-115
ColorQube® 9303 Family
REP 12.12-110
Repairs/Adjustments

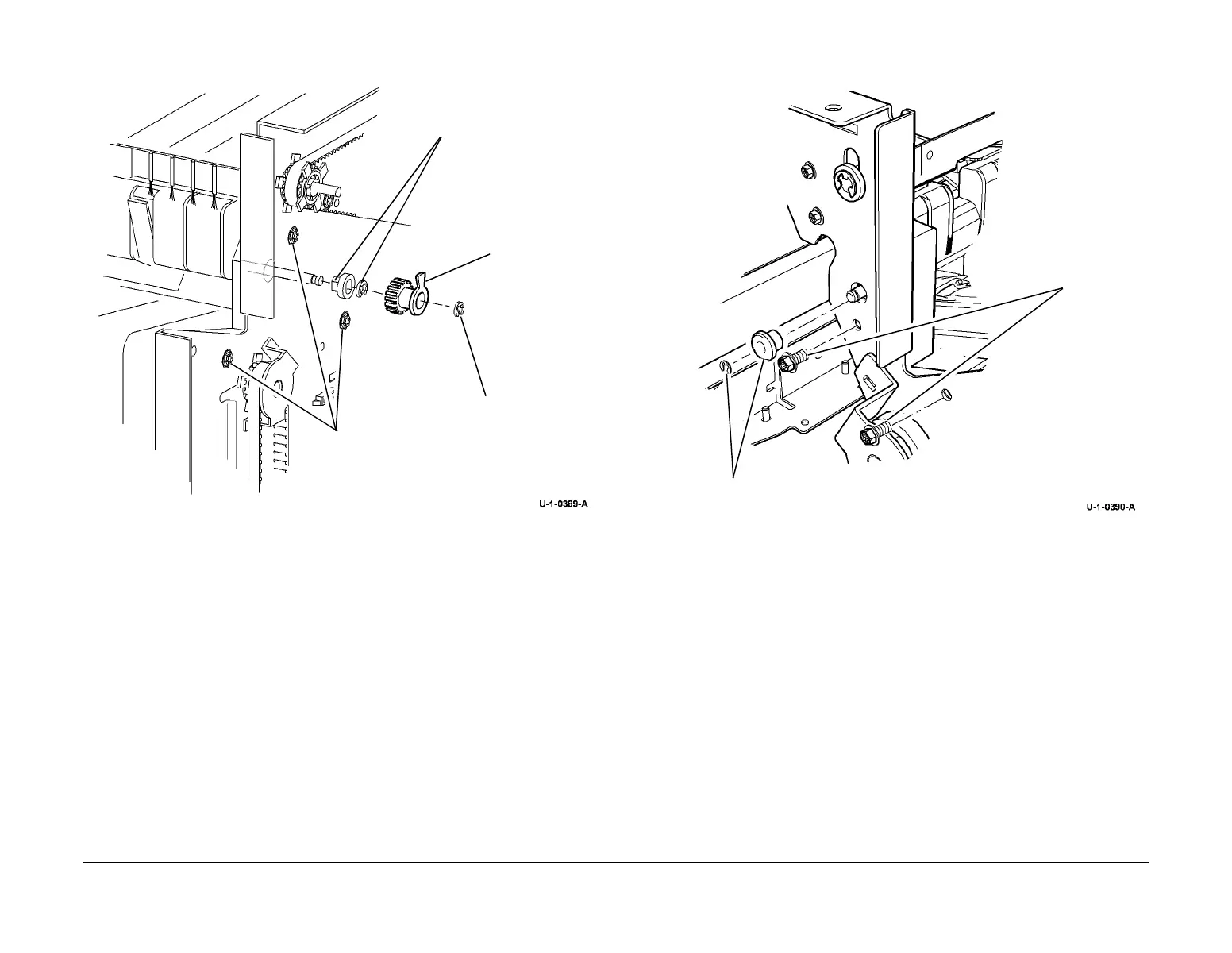

5. Figure 2, prepare the rear components.
Figure 2 Rear preparation
6. Figure 3, prepare the front components.
Figure 3 Front preparation
7. Ensure that the compiler ejector is in the home position (fully to the left).
1
Remove the E-clip
2
Remove the
gear and flag
assembly
3
Remove the E-clip
and bearing
4
Remove 3 screws
1
Remove E-clip and bearing
2
Remove 2
screws
