February 2013
4-153
ColorQube® 9303 Family
REP 12.23-171
Repairs/Adjustments

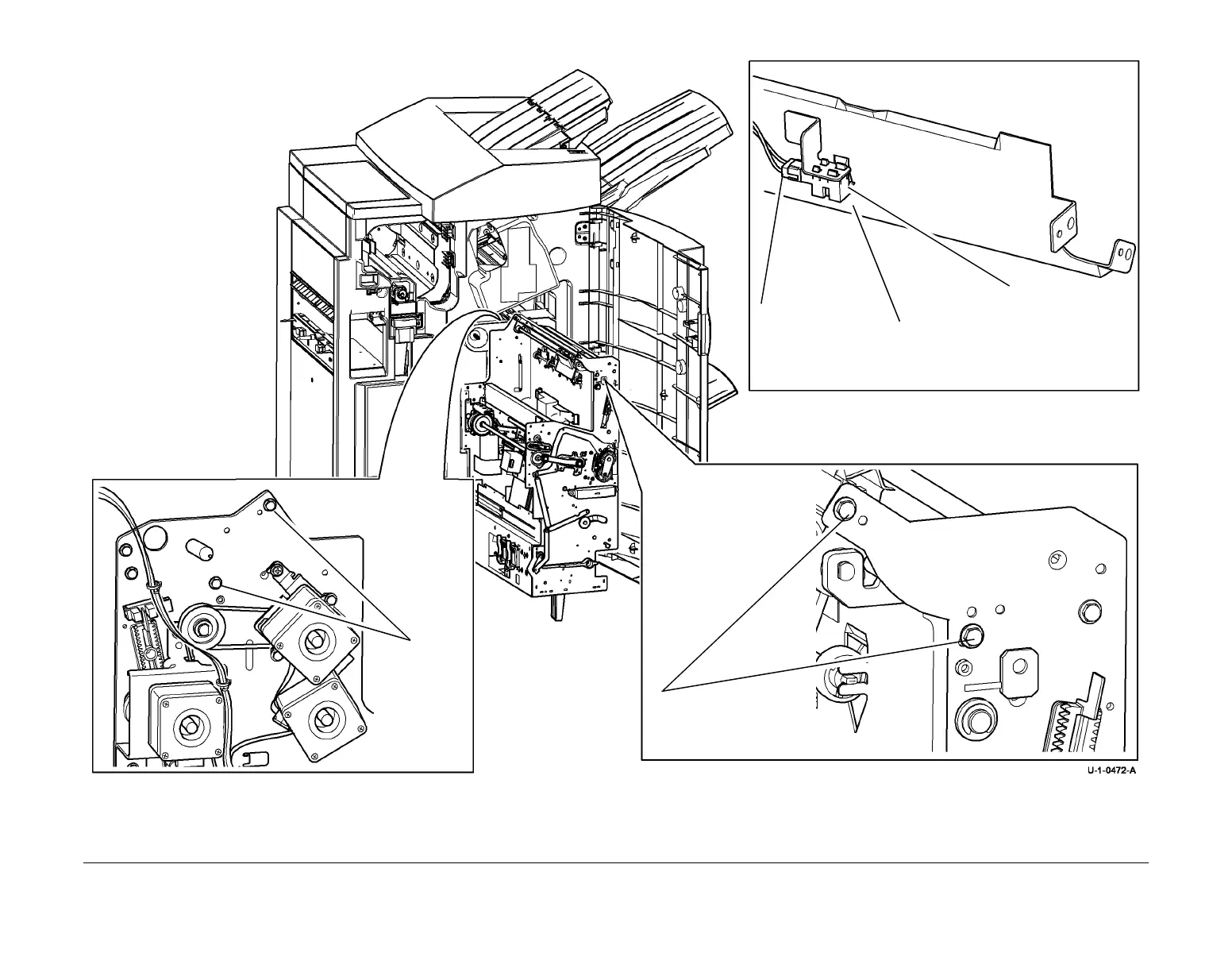

Figure 1 Sensor removal
Replacement
Reverse the removal procedure to replace the BM entry sensor.
1
Remove 2 screws.
3
Disconnect the
sensor harness.
4
Remove the baffle.
2
Remove
2 screws.
5
Remove the sensor.
