Xerox ColorQube 9303 Series Service Manual

February 2013
4-154
ColorQube® 9303 Family
REP 12.24-171, REP 12.25-171
Repairs/Adjustments
REP 12.24-171 BM Crease Roll Gate Motor
Parts List on PL 12.175.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the top cover, then the rear cover, REP 12.1-171.
2. Fully pull out the BM module.
3. Figure 1, remove the motor assembly

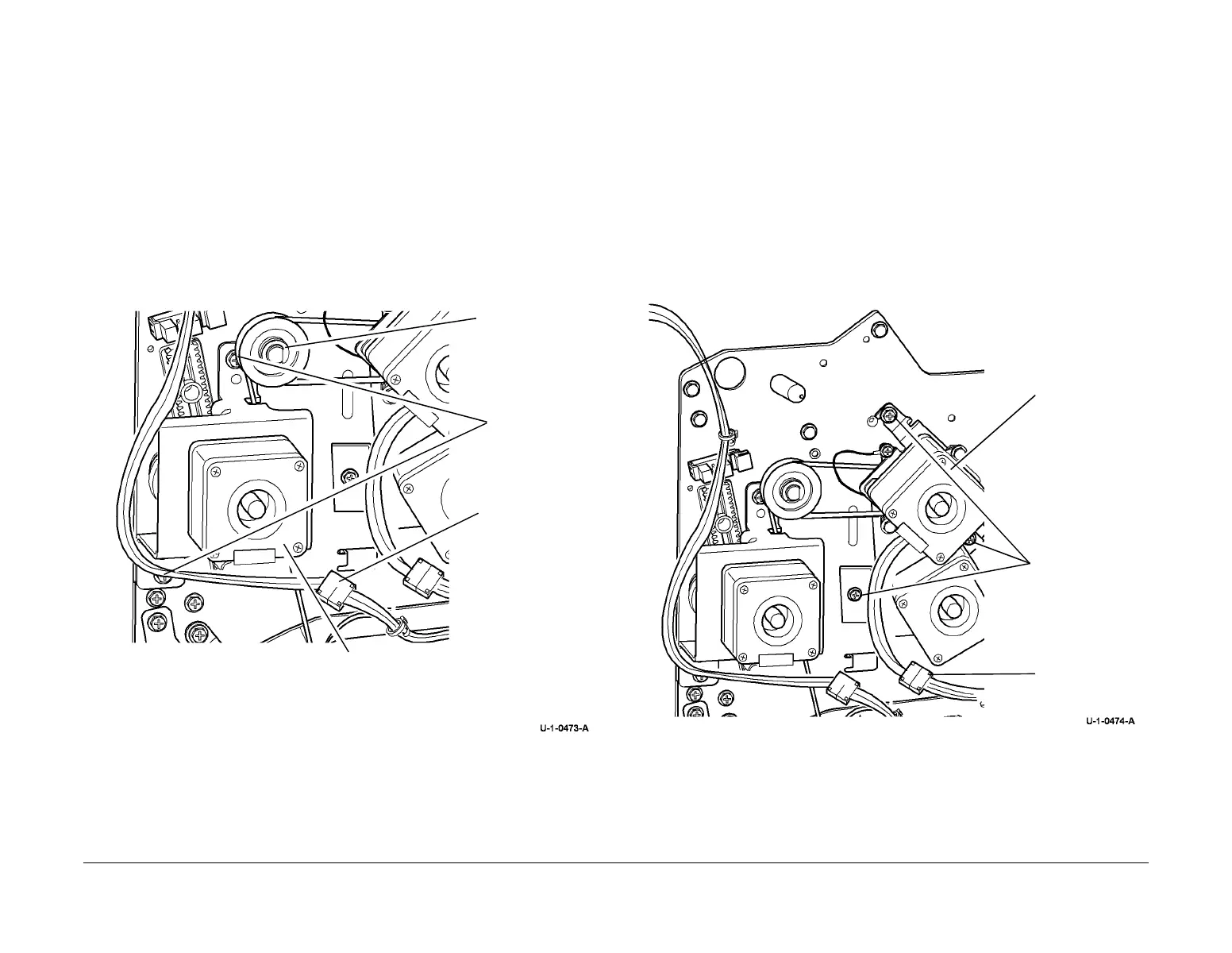

Figure 1 Motor assembly removal
4. Remove 3 nuts to release the motor from the bracket.
Replacement
Reverse the removal procedure to replace the BM crease roll gate motor.
REP 12.25-171 BM Compiler Motor and BM Flapper Motor
Parts List on PL 12.175.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the top cover, then the rear cover, REP 12.1-171.
2. Fully pull out the BM module.
3. Figure 1, remove the motor assembly.
Figure 1 Motor assembly removal
4. Remove 2 screws to remove the relevant motor from the bracket.
5. Remove 2 screws to remove the motor from the damper.
Replacement
Reverse the removal procedure to replace the BM compiler motor or BM flapper motor.
1
Remove E-clip
and pulley.
3
Disconnect the
motor harness.
2
Remove 2
screws.
4
Remove the
motor assembly.
1
Disconnect the
harness.
3
Remove 3 screws
.
4
Remove the
motor assembly.
2
Disconnect the
ground strap.
