ColorQube® 9303 Family
REP 12.52-171
Repairs/Adjustments
11. Figure 3, Flex the front plate to remove the crease roll assembly.
Figure 3 Release the front plate
12. Figure 4, remove the crease rolls.
Figure 4 Remove the crease rolls
Replacement
Reverse the removal procedures to reinstall the crease roll assembly.

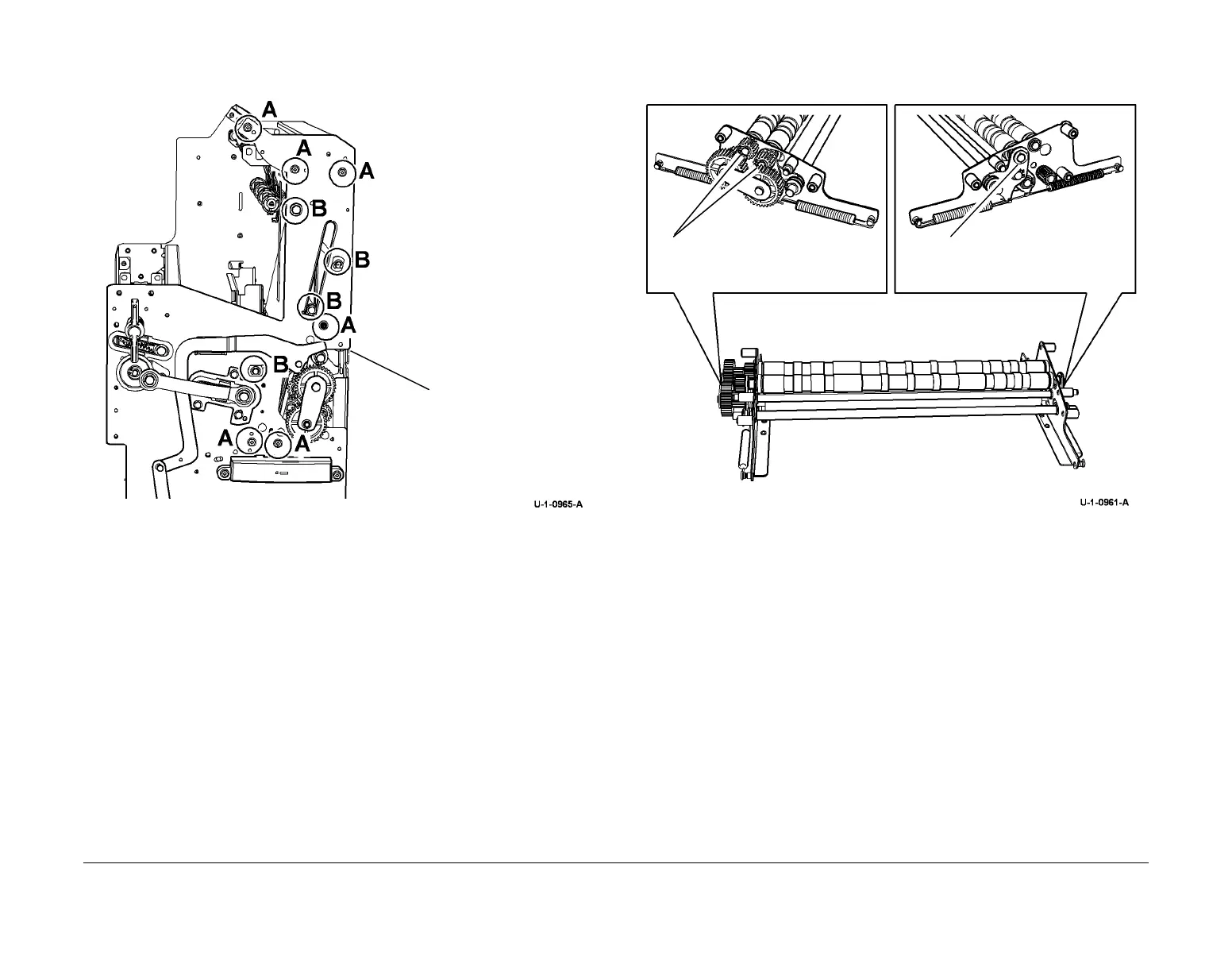

1
Remove the screws
marked A.
Remove the E-clips and
bearings marked B.
2
Flex the front plate to
remove the crease roll
assembly.
1
Remove the external circlips to
remove the rolls.
2
Remove the external circlips to
remove the rolls.
Front
Rear
