ColorQube® 9303 Family
REP 12.60-171
Repairs/Adjustments

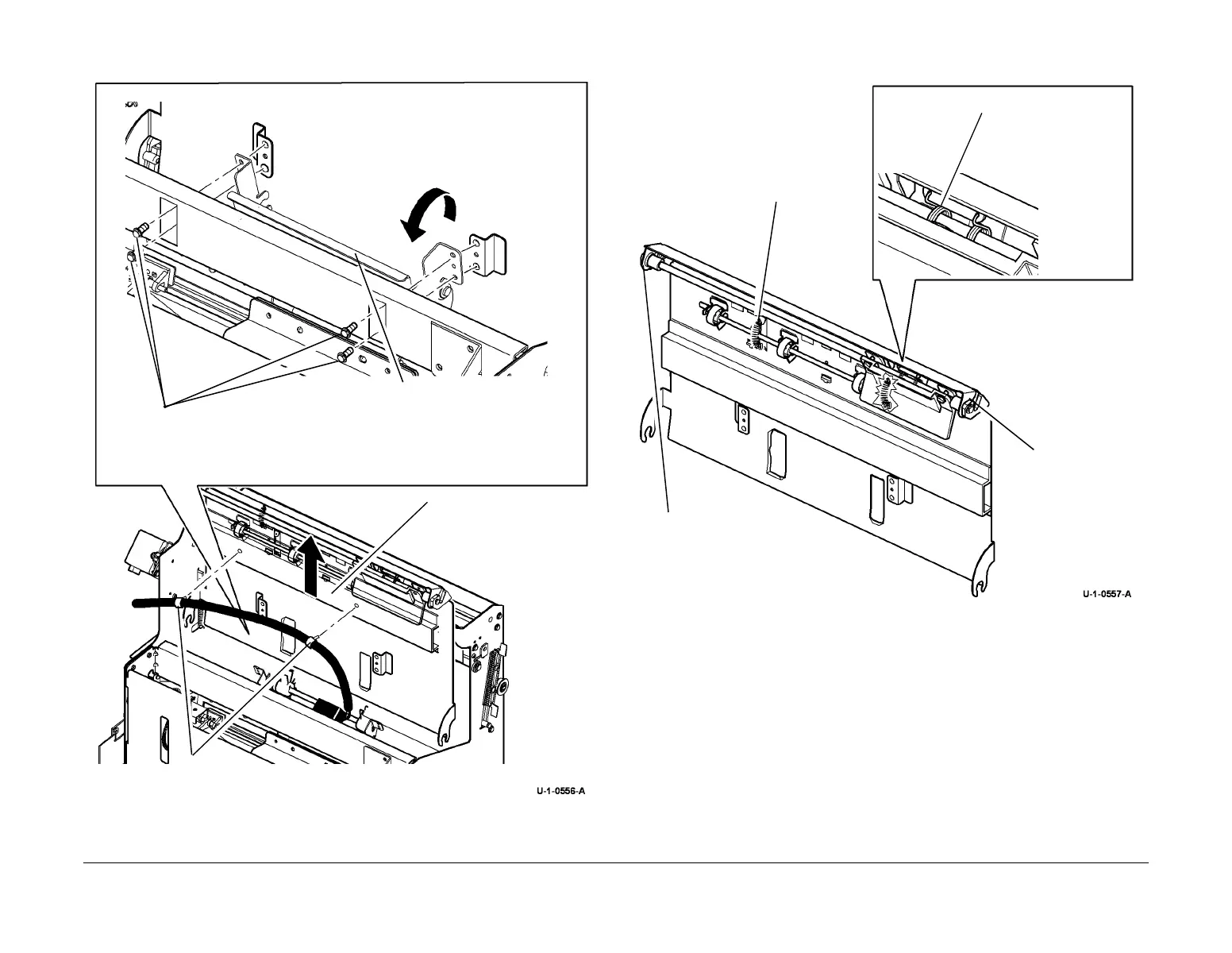

8. Figure 3, remove the BM paper guide assembly.
Figure 3 Paper guide assembly removal
9. Figure 4, remove the components from the BM paper guide assembly.
Figure 4 Paper guide dismantling
Replacement
Reverse the removal procedure to replace the BM paper guide assembly.
2
Remove 4 screws. Disconnect the
ground harness.
3
Pivot the BM flapper assembly
down to rest on the crease
blade.
4
Lift out the BM paper
guide assembly.
1
Pull out the 2 harness supports.
1
Release the nip
springs to
remove the nip
shaft and nip
rolls.
2
Remove E-clip and
rear latch.
3
Remove E-clip
and front latch.
4
Carefully disengage the
spring legs from the
guide and remove the
shaft assembly.
