February 2013
4-202
ColorQube® 9303 Family
REP 12.61-171
Repairs/Adjustments
REP 12.61-171 BM Module
Parts List on PL 12.145.
Removal
WARNING
Mandatory safety warning. This procedure must be performed by 2 people. The module
is heavy.
WARNING
Do not undock the HVF BM from the machine. The HVF BM is unstable when undocked
from the machine. Do not show the customer how to undock the HVF BM.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the top cover, then the rear cover, REP 12.1-171.
2. Figure 1, disconnect PJ562 and PJ559 from the BM PWB.

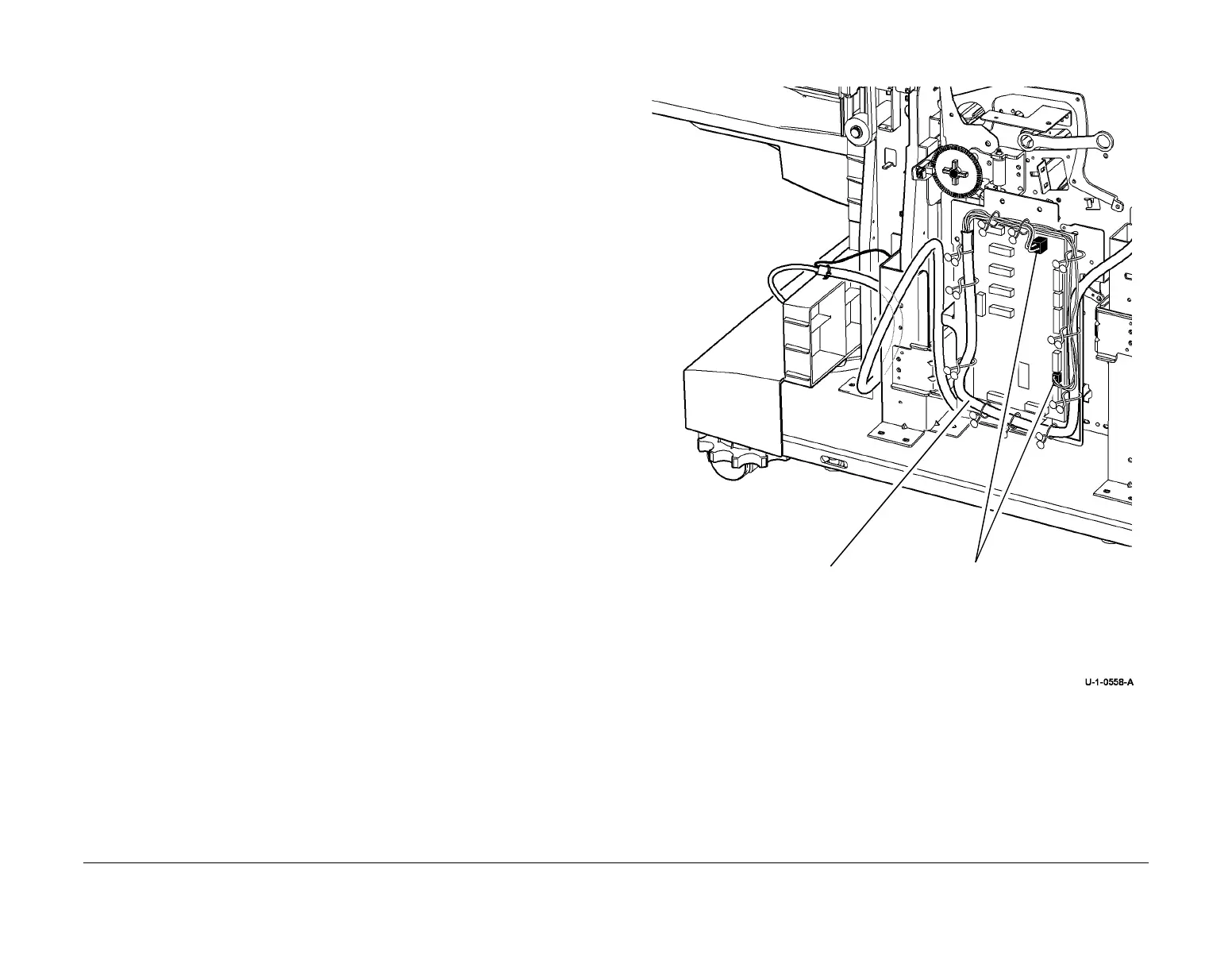

Figure 1 Disconnect the PJs
1
Disconnect PJ562 and
PJ559.
2
Release the harness
from the retainers.
To Next Page
