ColorQube® 9303 Family
REP 12.62-171
Repairs/Adjustments
REP 12.62-171 BM Slide Assembly
Parts List on PL 12.145.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the BM module, REP 12.61-171.
2. Remove the BM front cover, PL 12.150 Item 3.

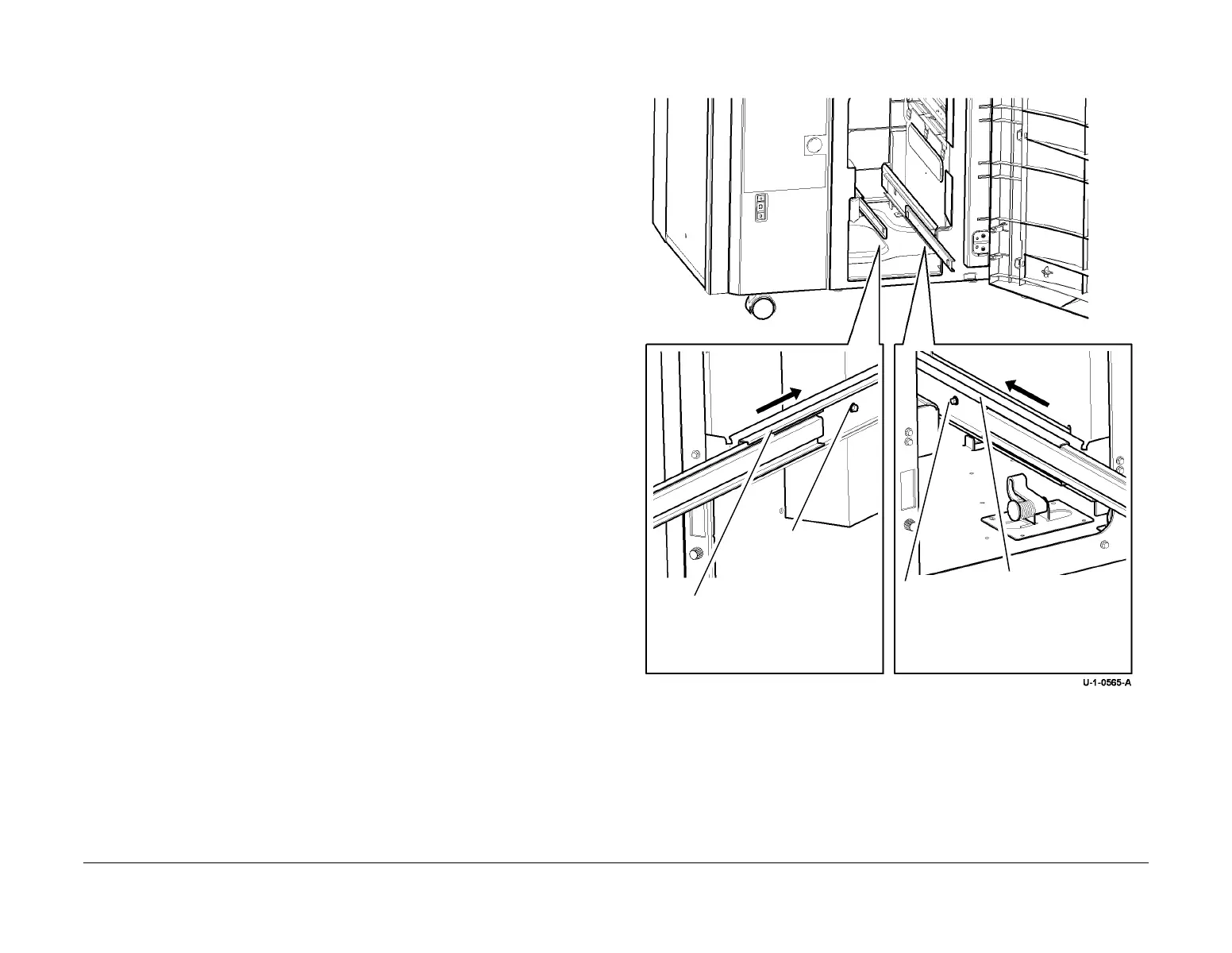

3. Figure 1, Remove the slide assembly from the HVF BM frame.
Figure 1 Remove the slide assembly
2
Move the slide to the rear and
remove the slide assembly.
1
Remove screw
1
Remove the
screw.
2
Move the slide to
the rear and
remove the slide
assembly.
