February 2013
4-211
ColorQube® 9303 Family
REP 12.65-171, REP 12.66-171
Repairs/Adjustments
REP 12.65-171 Buffer Motor
Parts List on PL 12.120.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the rear cover REP 12.1-171.
2. Remove the buffer motor and bracket assembly, Figure 1.

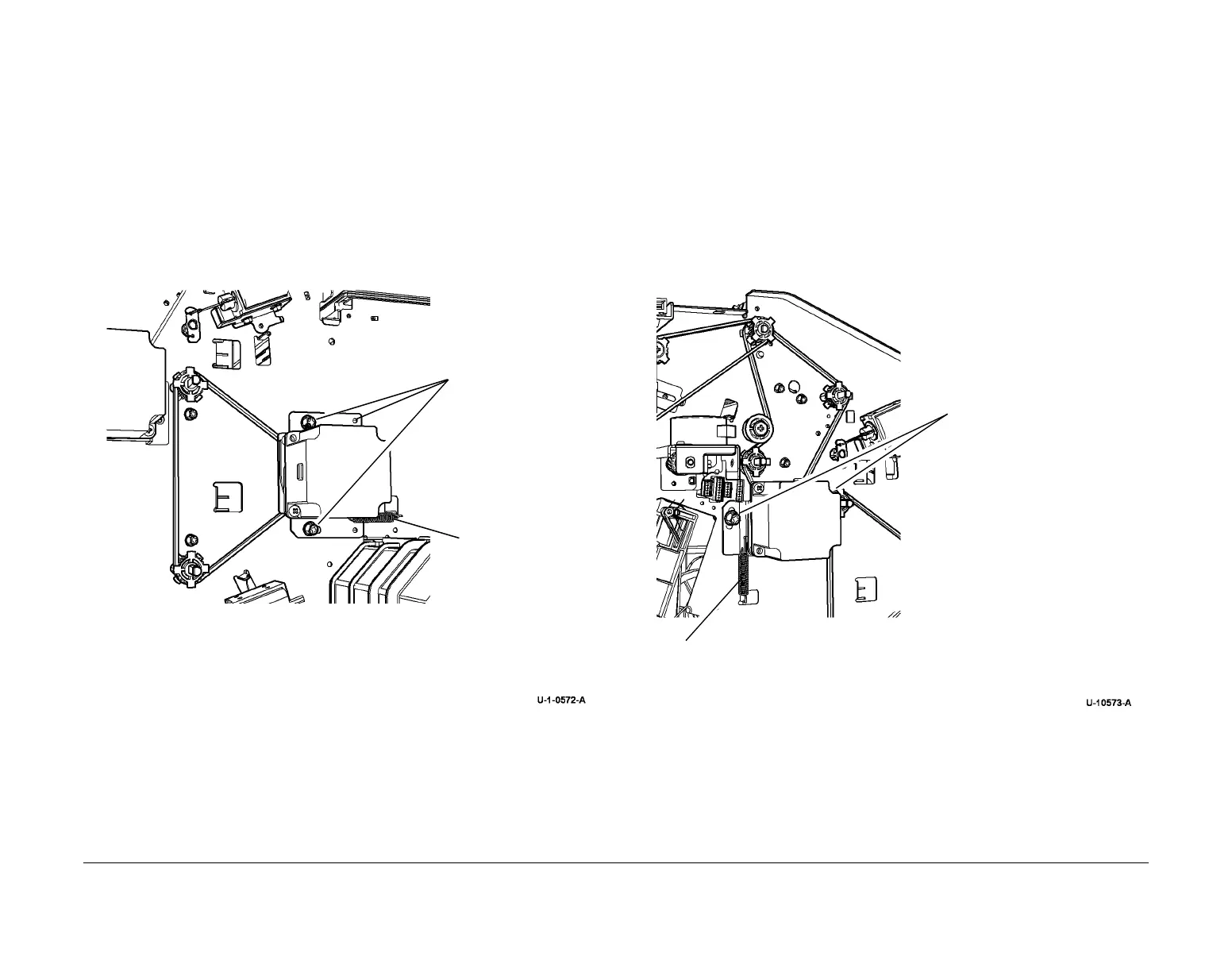

Figure 1 Buffer Feed Motor and Bracket
3. Remove 2 screws and the grounding wire to remove the motor and damper from the
bracket.
Replacement
Reverse the removal procedures to replace the buffer motor.
Fit the pivot screw and set the belt tension, ADJ 12.10-171. Do not tighten the motor bracket
screws fully until the belt is tensioned by the spring.
REP 12.66-171 Transport Motor 2
Parts List on PL 12.120.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the rear cover REP 12.1-171.
2. Remove the exit feed motor and bracket assembly, Figure 1.
Figure 1 Exit Feed Motor and Bracket
3. Remove 2 screws and the grounding wire to remove the motor and damper from the
bracket.
Replacement
Reverse the removal procedures to replace the exit feed motor.
Fit the bracket pivot screw and set the belt tension, ADJ 12.10-171.
1
Remove the pivot and
2 bracket screws.
2
Disconnect the
motor PJ.
Release tension spring.
1
Remove the pivot and 2
bracket screws.
2
Disconnect the harness
from the motor.
Tension Spring
To Next Page
