ColorQube® 9303 Family
REP 12.67-171
Repairs/Adjustments
REP 12.67-171 Tri Folder Covers
Parts List on PL 12.200.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the screw and front door hinge pin then move the door from the upper pivot.
Remove 4 screws and remove the front cover Figure 1.

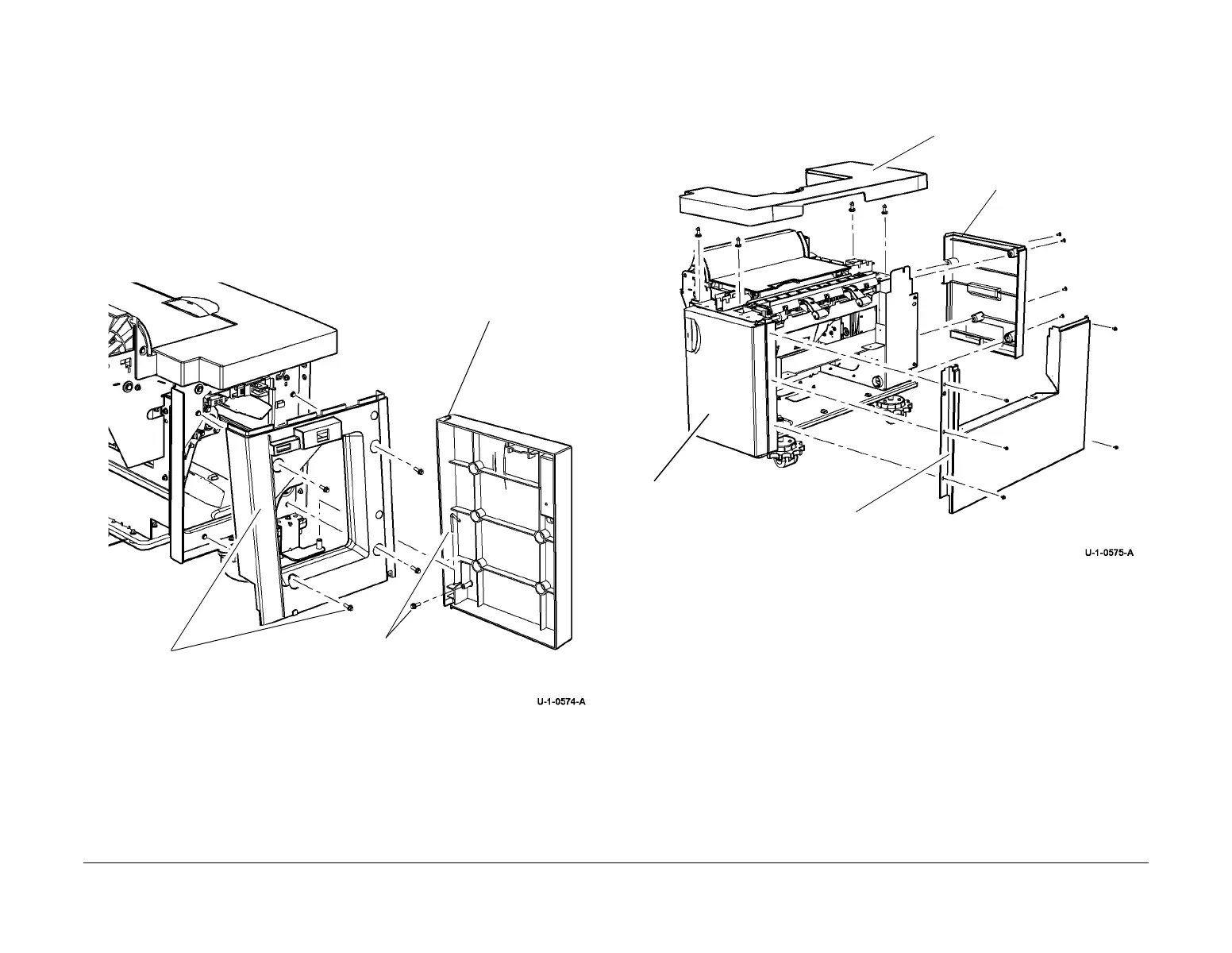

Figure 1 Tri-folder Front Door and Cover
2. Remove the rear cover, the top cover and the right side cover as required, Figure 2.
NOTE: Open the top cover and remove the rear cover to access to the top cover rear fas-
teners and the top cover interlock sensor connector.
Figure 2 Top, Rear and Right side covers
Replacement
Reverse the removal procedures to reinstall the Tri-Folder covers.
2
Remove the door
from the upper
pivot.
1
Remove 1 screw then
the front door hinge pin.
3
Remove 4 screws then
the front cover.
3
Open the front door to
access the top cover
front fasteners.
2
Remove the right hand side cover (5 screws).
1
Remove the rear cover
(4 screws).
4
Remove the top cover (4 fasteners)
